Product Material & Performance:
-
1. socket Body: PEI -

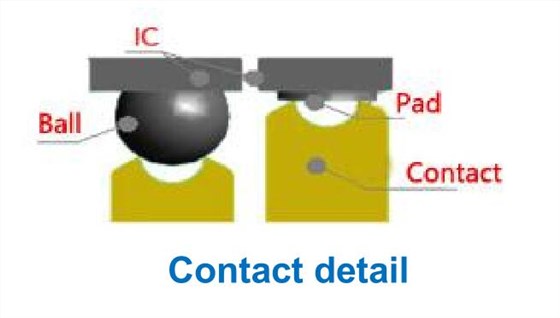

2.Contacts:Beryllium Copper Alloy -
3.Contact Plating:Gold over Nickel -
4. Operation Force:2.0KG min, the more PINs the greater force. -
5.Contact Resistance:50mΩ max -
6. Dielectric:700V AC for 1 minute -
7. Insulation Resistance:1,000MΩ 700V DC -
8. Max Current Capacity : 1A -
9. Temperature Rating:-55℃~+175 ℃ -
10. Life Span 25,000 Times (Mechanical)
Product Specification and Dimension :
| Type | BGA100-1.0 Burn in/programmer socket |
| Pin Pitch | 1.0mm |
| Pin Count | 80 pins |
| Applicable IC body size | 14*18mm 12*18mm |
| Life Span | 25,000times |
| Part number | BGA100(14*18mm 12*18mm)-1.0 socket |
| IC Package | BGA100 , VFBGA100 |
| Structure | OPEN-TOP |

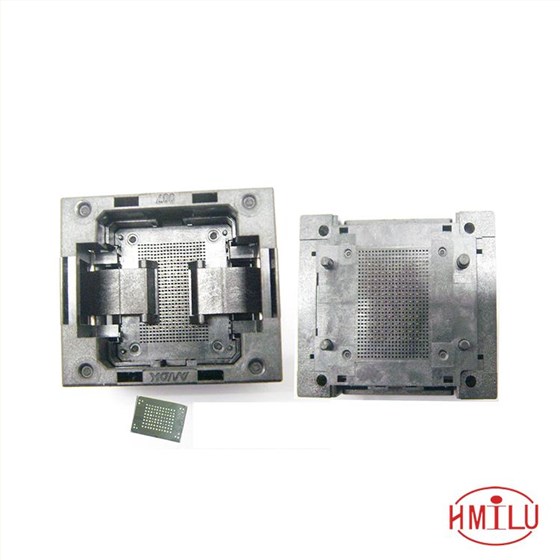

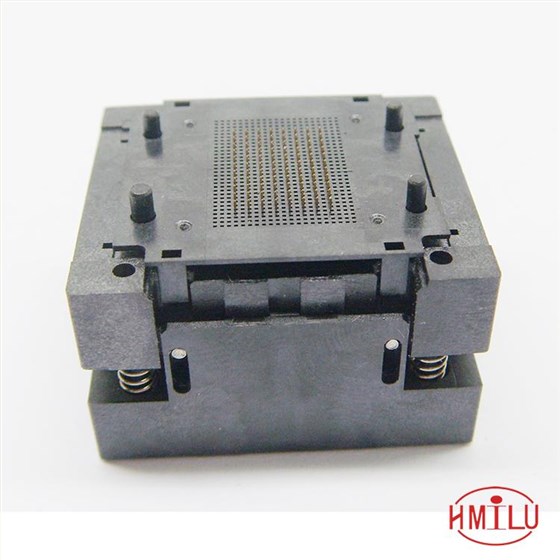

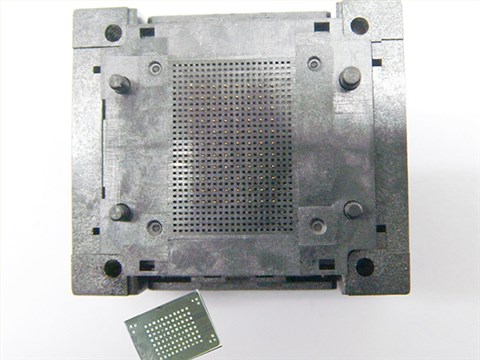

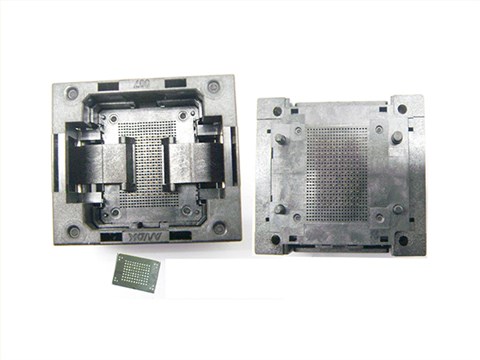

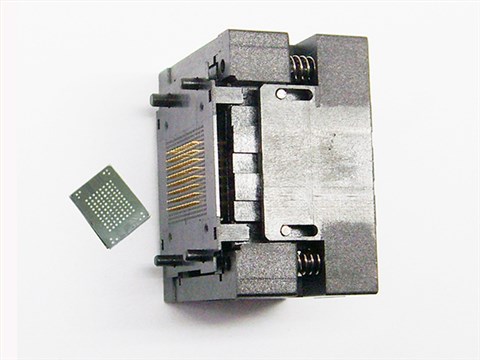

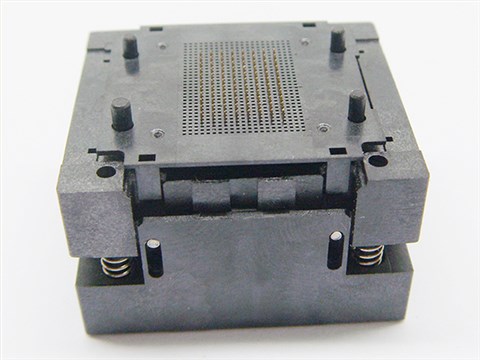

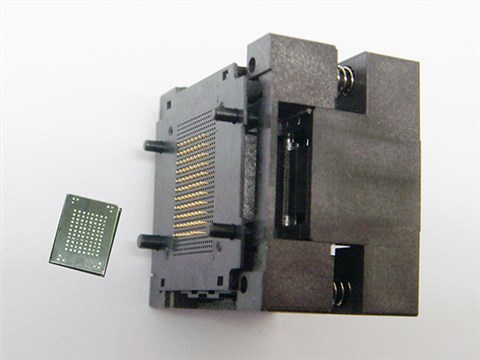

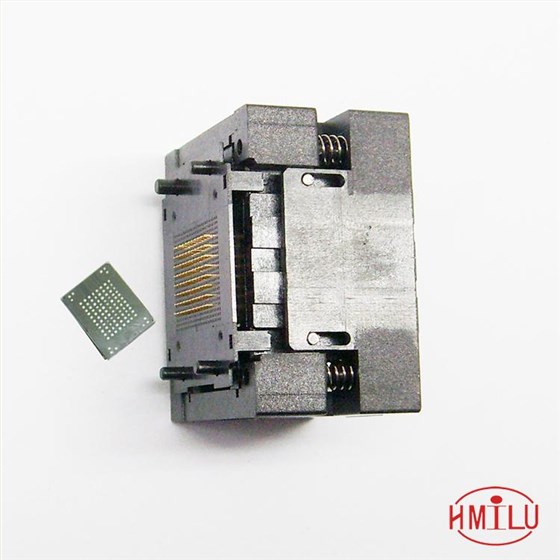

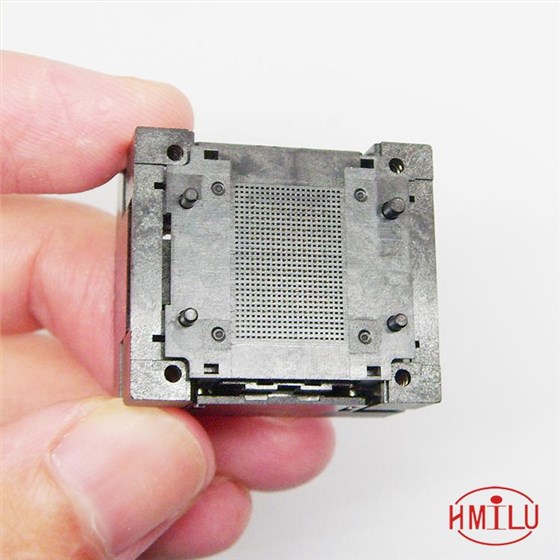

Product image
