QFN52 -0.4 7*7 open top burn in socket

QFN52 -0.4 7*7 open top burn in socketQFN52 -0.4 7*7 open top burn in socketQFN52 -0.4 7*7 open top burn in socket

Product Introduction

QFN52 Burn in Socket QFN52 MLF52 IC Test Socket Pitch 0.4mm open top burn in Chip Size 7*7 Flash Adapter Programming Socket

Product details

Product features


  • 1. Product Usage : burn in socket , test socket , burn in and test for chip QFN52

  • 2.Applicable Package : QFN52 , pin pitch 0.5mm

Specification and Dimension

Type QFN 52
Pin Pitch 0.5mm
Pin Count 52
Applicable IC body size 8*8 mm

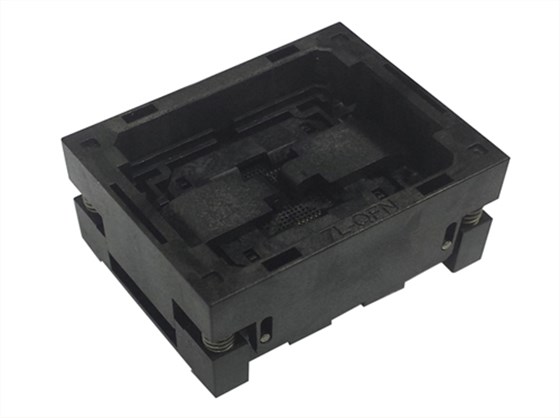

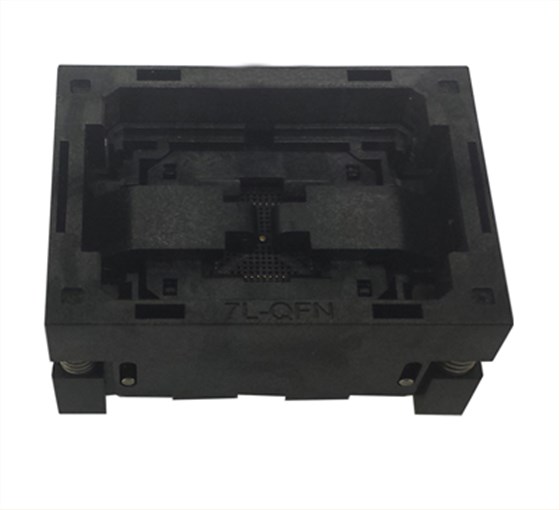

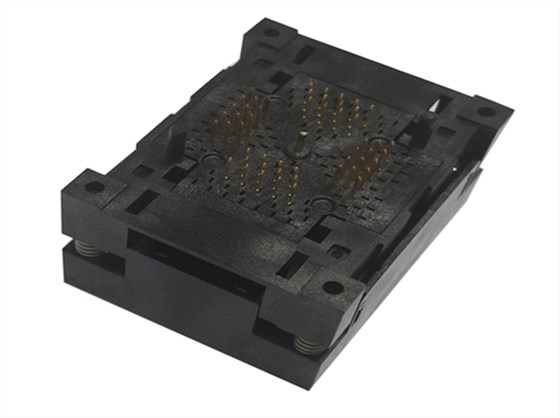

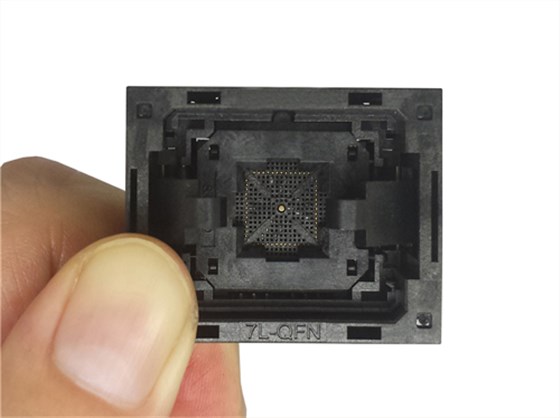

Product image

S3

S4

S2

S1
