parameter

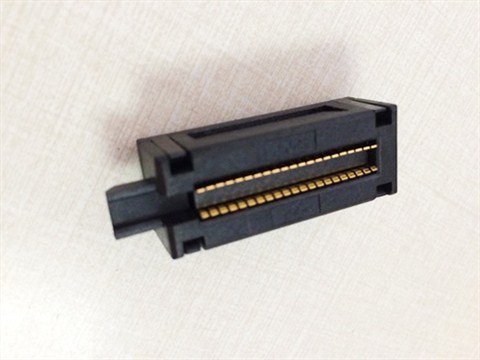

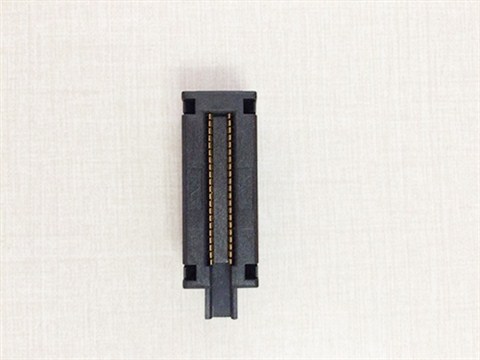

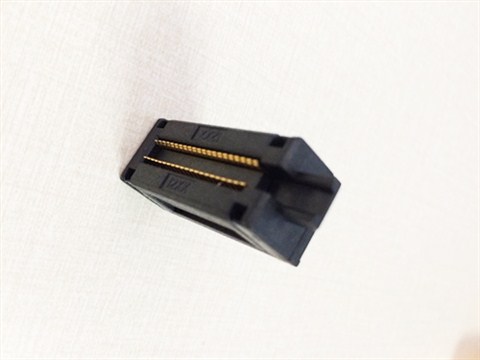

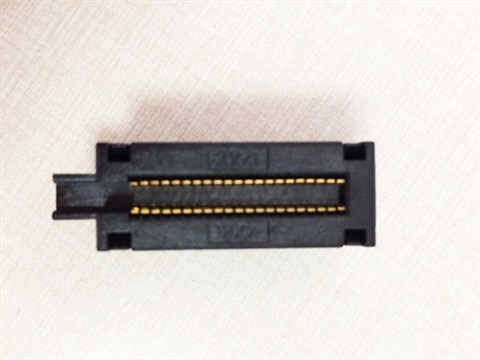

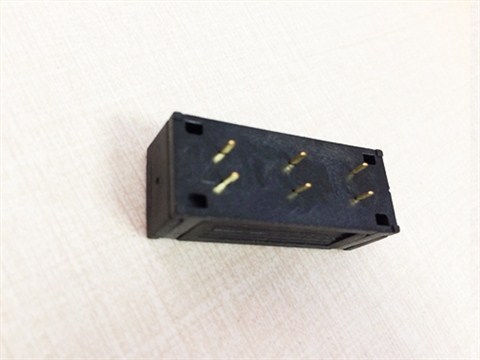

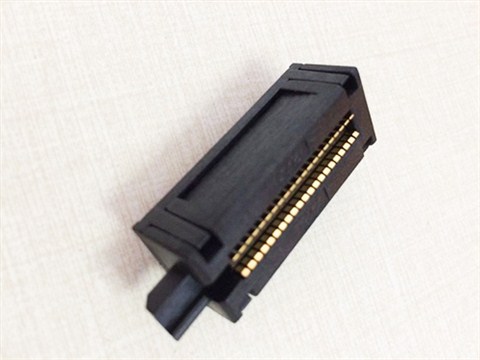

SMTChip capacitor burn in test specification:
| specification | Matching Model and pattern | 12XX | 13XX | 23XX | 28XX | 32XX | Remarks | |
| Corresponding patch Tantalum capacitorspecification | AShell | BShell | CShell |
DShell EShell HShell VShell WShell |
GShell | Prepared for 15 days | ||
| Corresponding patch capacitor specification | 1206 1210 | N/A | N/A | 29XX 3025 | N/A | |||
|
|
||||||||
| No mold and its model | 06XX | 08XX | 18XX | 22XX |
|
More than 5K orders free mold,prepared within 35 days after order | ||
| Corresponding patch capacitor specification | *0603 | *0805 | 1808 1812 | 2220 2225 |
|
|||
Tg200 Series Performance Specifications (Common)：
| Long work temperature | Contact resistance | Insulation resistance (500VD.C) | Solderability | Mechanical life |
| -55℃～+150℃ | ≤0.05Ω | ≥1×109Ω | ≥90%mm2 | ≥5000H |
Tg200 Series Performance Specifications (Special)：
| Longworktemperature | Contactresistance | Insulationresistance(500VD.C) | Solderability | Mechanicallife |
| -55℃～+200℃ | ≤0.05Ω | ≥1×109Ω | ≥90%mm2 | ≥5000H |
PCB with burn in test pad LAYOUT schematic:
| number | model | Lmm | Wmm |
| 1 | 603 | 38.4 | 13.4 |
| 2 | 805 | 38.4 | 13.9 |
| 3 | 12xx | 38.4 | 14.9 |
| 4 | 18xx | 38.4 | 16.5 |
| 5 | 22xx | 38.4 | 17.5 |
| 6 | 30xx | 38.4 | 18.9 |
PRODUCT FEATURES
-
Small spacing
- minimum pitch of 0.2mm
-
test accuracy
- The test is accurate and the error rate is 0.001 %
-
High temperature
- high temperature: 175℃, low temperature: -55℃
-
long service life
- Life span more than 300,000 times, 2-3 times that of other similar brands
