Product Feature:
-
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP32/TQFP32/LQFP32 -
2. Applicable Package : QFP32 , TQFP32 , LQFP32 , pin pitch 0.8mm

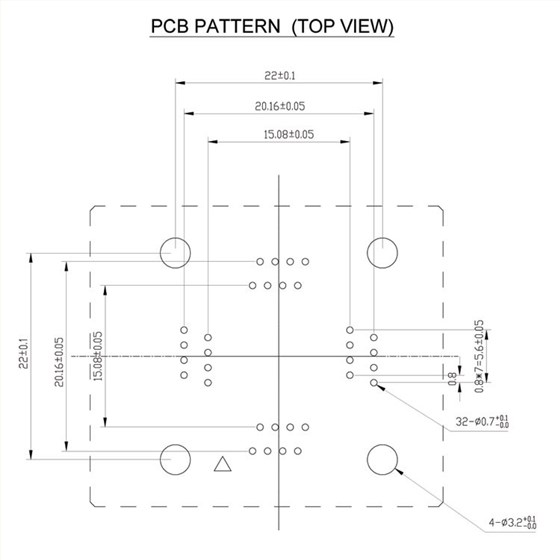

Specification and Dimension :
-
2. Specification and Dimension :
a) Type : QFP32-0.8
b) Pin pitch : 0.8 mm
c) Pin Count : 32
d) Applicable IC Body Dimension : 7*7 mm ( including pin dimension : 9*9 mm)
Specification and Dimension
| Type: | QFP32 TQFP32 LQFP32 Burn in Socket |
| Pin: Pin | 32 |
| Pin Pitch: | 0.8 mm |
| Applicable IC Body Dimension: | 7*7 mm |
| Product description: |
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP32/TQFP32/LQFP32 2. Applicable Package : QFP32 , TQFP32 , LQFP32 , pin pitch 0.8mm |
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us for inquiry , we can give you a discount ! !

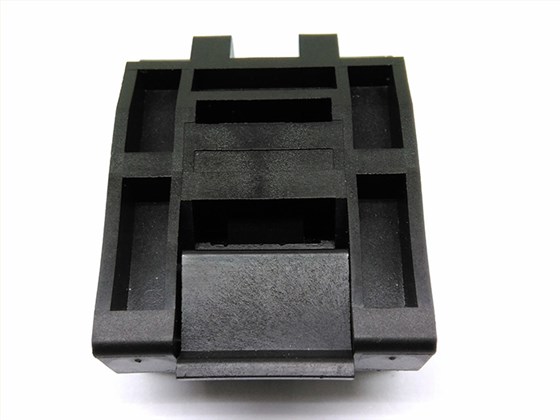

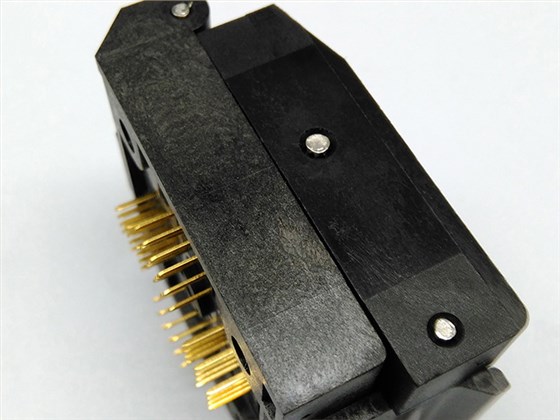

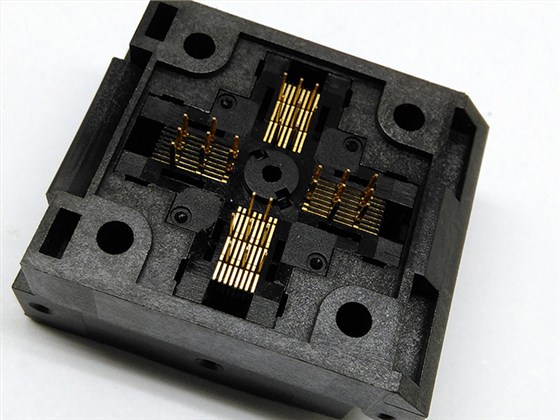

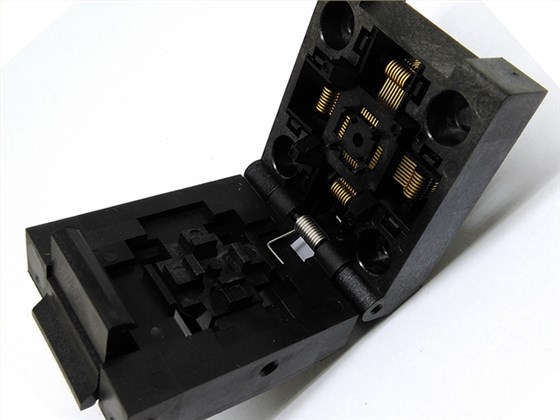

Product image
