QFP32 0.8 7*7 Test Programming Socket

QFP32 0.8 7*7 Test Programming SocketQFP32 0.8 7*7 Test Programming SocketQFP32 0.8 7*7 Test Programming Socket

Product Introduction

QFP32 TQFP32 LQFP32 to DIP32 Universal Programmer Pin Pitch 0.8mm IC Body Size 7x7mm Adapter SMT/SMD Test Socket

Product details

Specification and Dimension


Model Number: QFP 32 Test & Programming Socket
Type: Test Programming Socket(with PCB)
Package: QFP , TQFP , LQFP
Pin Pitch: 0.8 mm
Pin Count 32 pins
Applicable IC body size: 7*7mm
IC tip-to-tip: 9*9 mm
Life Span: 15,000 times

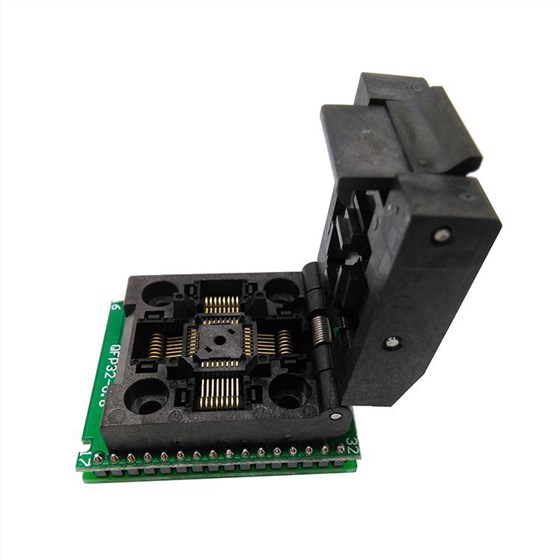

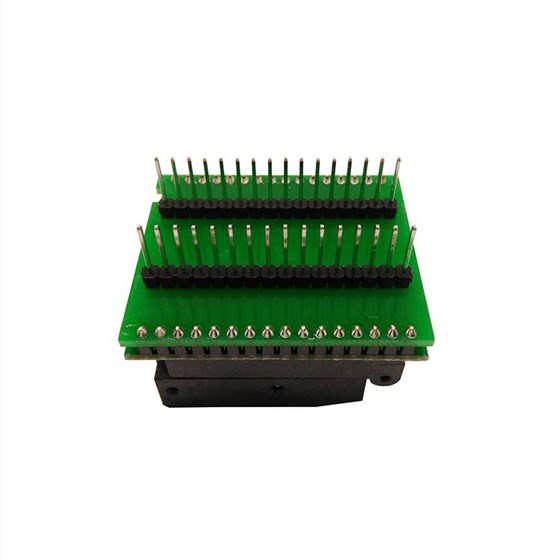

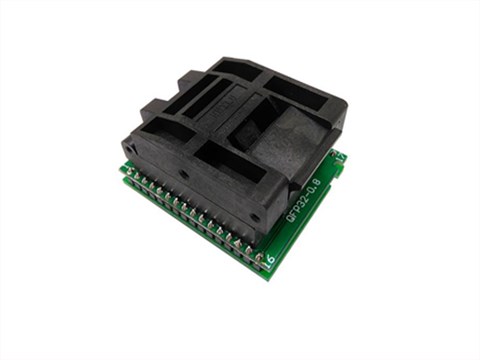

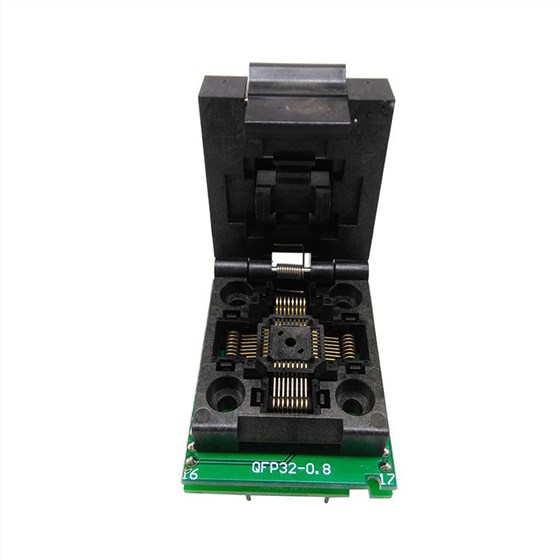

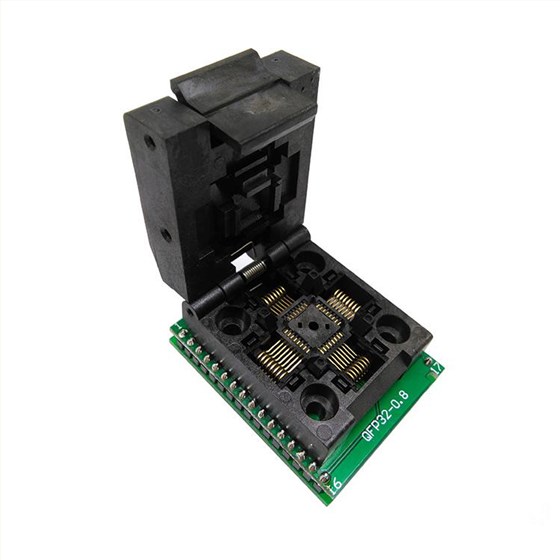

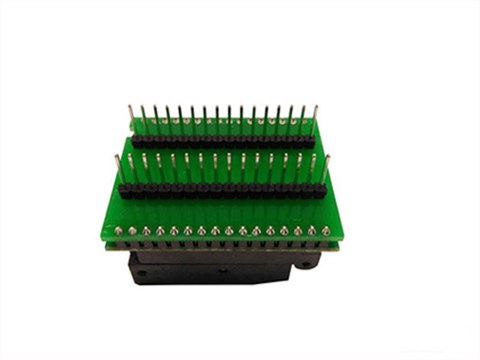

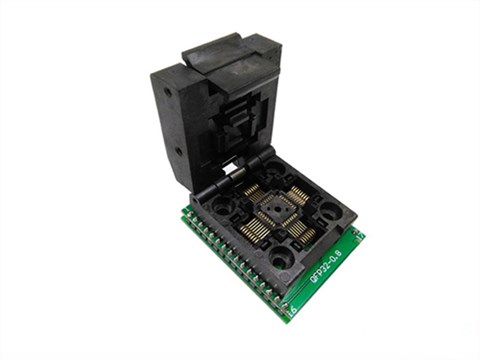

Product image

TB26EePlrplpuFjSspiXXcdfFXa_!!597517770

TB2lF5AlCxjpuFjSszeXXaeMVXa_!!597517770

TB23LOllxXlpuFjSsphXXbJOXXa_!!597517770

TB2Yht.lCXlpuFjy0FeXXcJbFXa_!!597517770
