1. Use double contact technology , contact more stable ,
2. The socket shell use special engineering plastic , high strength , long mechanical life ,
3. The shapnel use import beryllium copper , small impedance , good flexibility ,
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

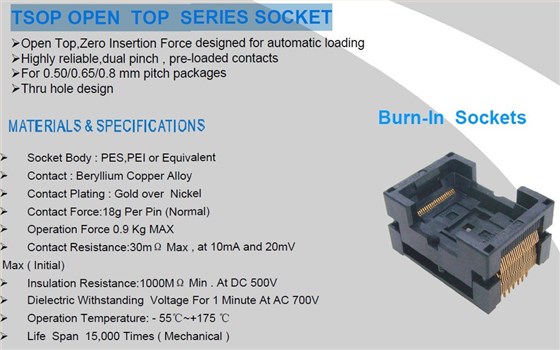

1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 100000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max
3. Specification :

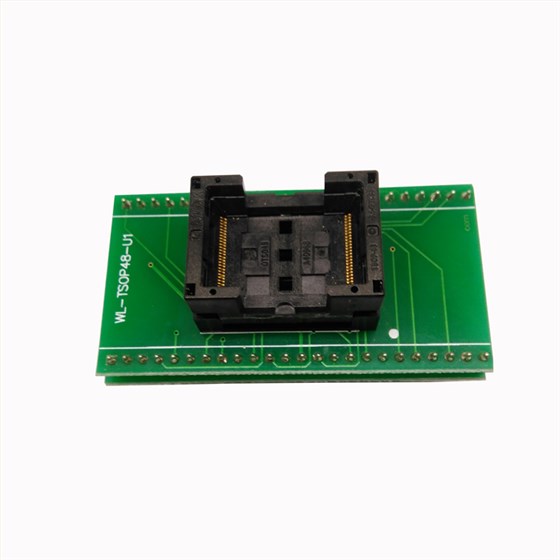

a) Type : TSOP 48-0.5
b) Pin pitch : 0.5 mm
c) Pin Count : 48

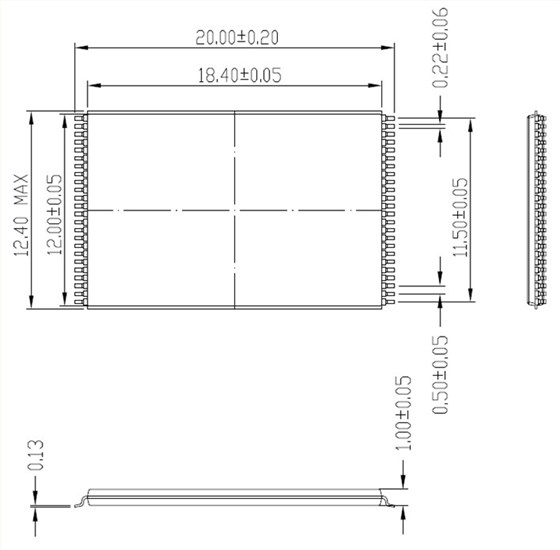

d) Chip Dimension : 12*20 mm (Including pin length)
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .
