Product Introduction

eMMC test Socket to 20pin universal port for nand flash testing for BGA 169 and BGA 153 reader for data recovery

Product details

Product Specifications:


  • 1.Apply to eMMC of Samsung, Sandisk, Toshiba, Hynix, Micron, HTC and Intel.

  • 2.Apply to BGA153 and BGA169.

  • 3. We provide size 11.5x13mm , 12x18mm , 12x16mm , 14x18mm.

  • 4. With 20 pins and pin pitch 0.5mm.

  • 5.Life cycle is around 25000 times.

  • 6. ceMMC data can be easily read and re-written.

  • 7. Test can be done with or without solder ball.

  • 8. Easy positioning and operation.

Product Suitable IC （PART）:


  • 1.THGBM1G6D4EBA14（Toshiba,TOSHIBA，16x18x0.95mm, pitch=0.5mm）

  • 2.SDIN4C2-4G(SanDisk, 16x12x0.85mm, pitch=0.5mm)

  • IC number:

  • SDIN4C1-4G 4Gx 8 FBGA169 16x12x0.85mm

  • SDIN4C1-8G 8Gx 8 FBGA169 16x12x0.85mm

  • SDIN4C2-8G 8Gx 8 FBGA169 16x12x0.85mm

  • SDIN3C2-2G 2Gx 8 FBGA169 16x12x0.85mm

  • SDIN3C2-4G 4Gx 8 FBGA169 16x12x0.85mm

  • SDIN3C2-8G 8Gx 8 FBGA169 16x12x0.85mm

  • 3.KLM2G1DEDD-A101（SAMSUNG，16x12x0.85mm, pitch=0.5mm）

  • Density Part number Org PKG PKG size MMC ver Status

  • 1GB KMAFG0000A-S998 x8 153FBGA 11.5x13 MMC4.2 MP

  • 2GB KLM2G1DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP

  • 4GB KLM4G2DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP

  • 4GB KLM4G1DEHM-B101 x8 169FBGA 14x18 MMC4.3 CS

  • 8GB KLM8G4DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP

  • 8GB KLM8G2DEHM-B101 x8 169FBGA 14x18 MMC4.3 CS

  • 16GB KLMAG8DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP

  • 16GB KLMAG4EEHM-B101 x8 169FBGA 14x18 MMC4.3 CS

  • 32GB KLMBG8EEHM-B101 x8 169FBGA 14x18 MMC4.3 CS

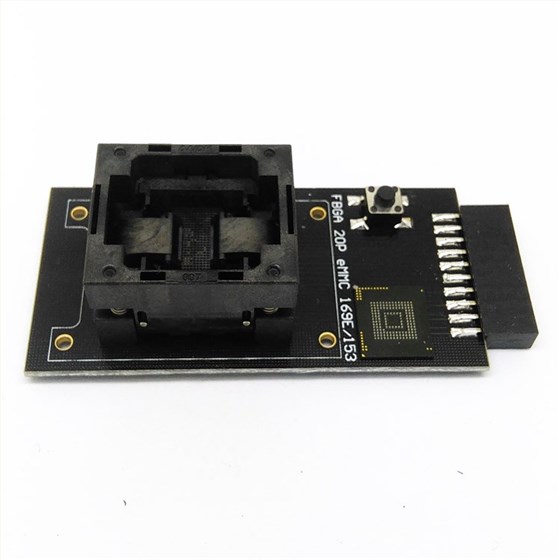

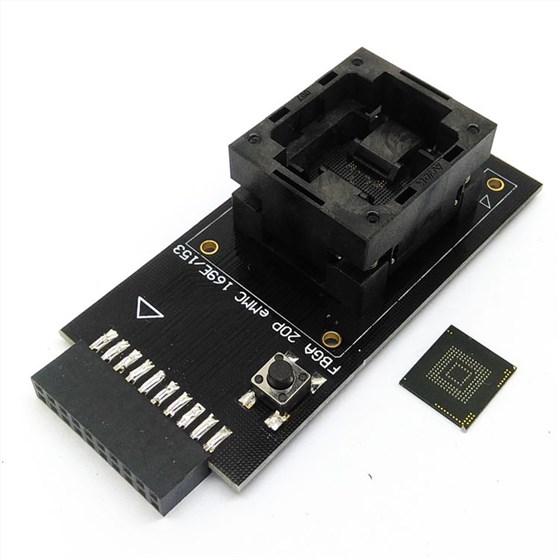

Product image

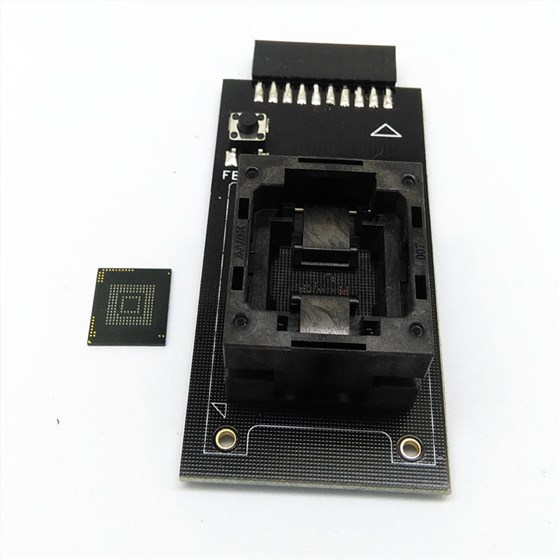

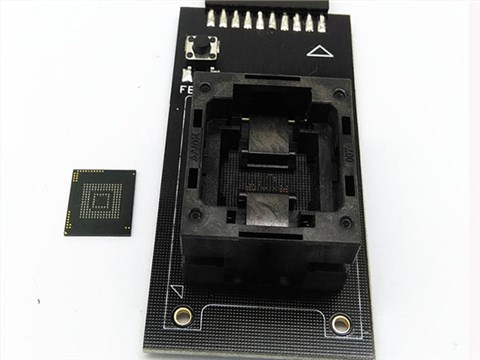

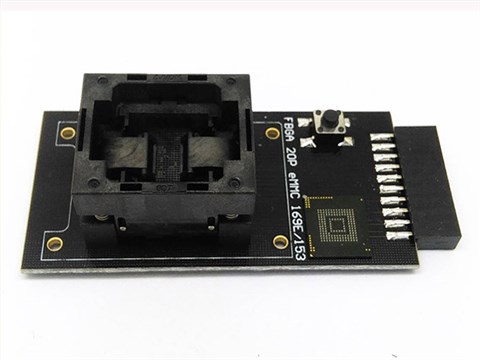

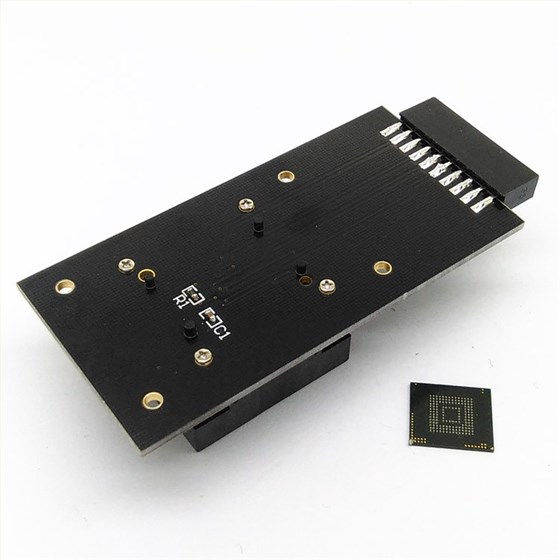

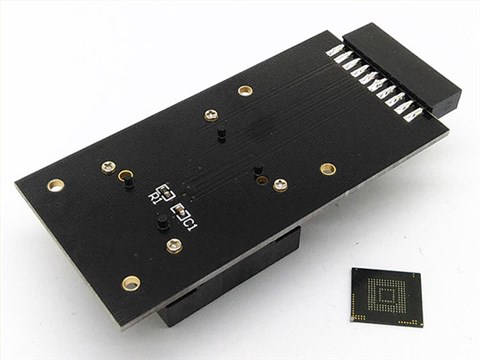

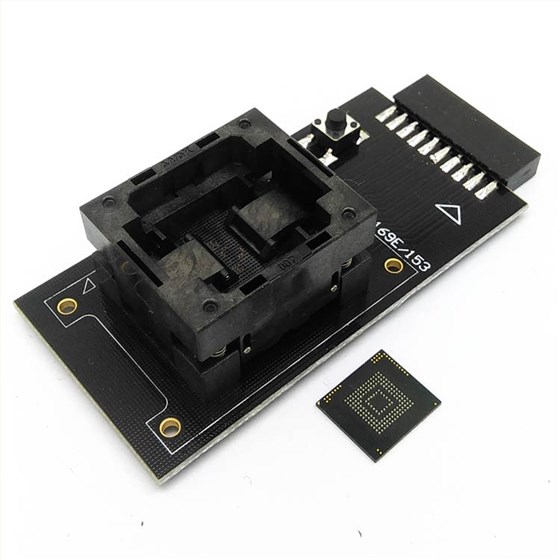

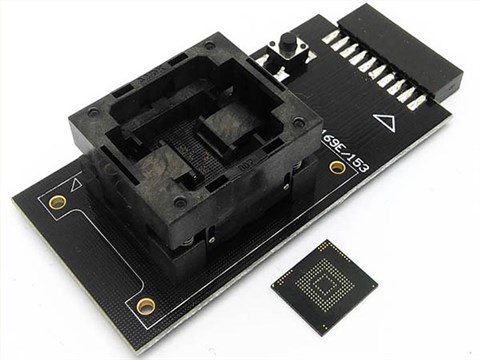

eMMC153/169 to 20pin universal port

eMMC153/169 to 20pin universal port

eMMC153/169 to 20pin universal port

eMMC153/169 to 20pin universal port

eMMC153/169 to 20pin universal port

eMMC153/169 to 20pin universal port
