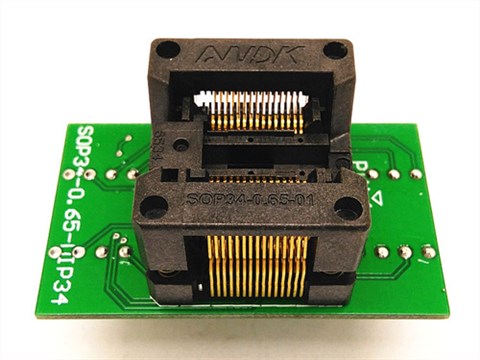

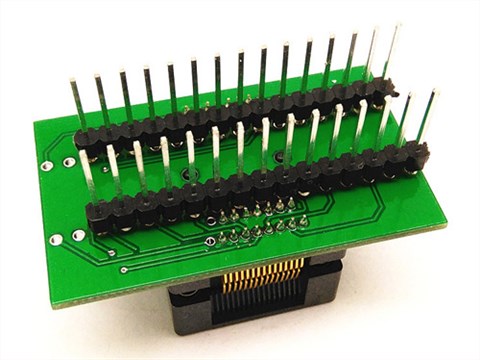

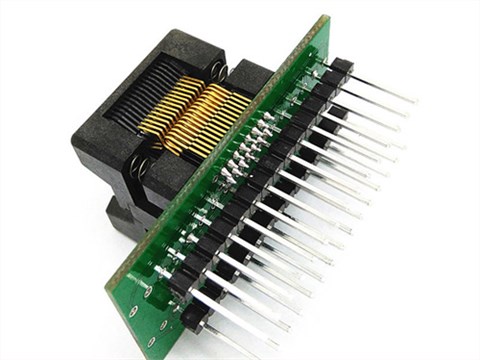

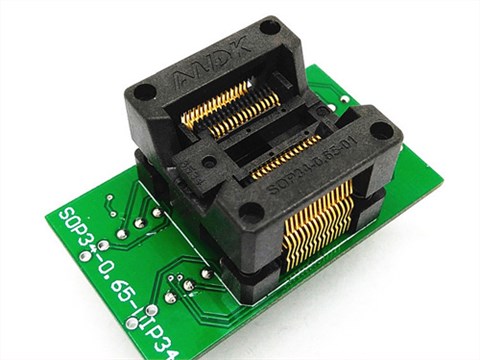

SSOP24(34)-0.65 SSOP24 TSSOP24 to DIP24 Programming Socket

SSOP24(34)-0.65 SSOP24 TSSOP24 to DIP24 Programming SocketSSOP24(34)-0.65 SSOP24 TSSOP24 to DIP24 Programming SocketSSOP24(34)-0.65 SSOP24 TSSOP24 to DIP24 Programming SocketSSOP24(34)-0.65 SSOP24 TSSOP24 to DIP24 Programming Socket

Product Introduction

SSOP24(34)-0.65 SSOP24 TSSOP24 to DIP24 Programming Socket Pin Pitch 0.65mm IC Body Width 5.3-5.4mm 209mil Flash Test Socket Adapter

Product details

Product features


  • 1.100% brand new , high Quality and duarable;

  • 2.Tested before shipping;

  • 3.Easy to use;

  • 4.Technical support and datasheet are available if you need;

  • 5.we are the original manufacturer and welcome anyone to be our distribution agents;

  • 6.Professional manufacturer in all kinds of IC chip testing sockets and adapters.

Material & Performance

socket Body PEI
Contacts Beryllium Copper Alloy
Contact Plating Gold over Nickel
Operation Force 0.5KG min, the more PINs the greater force
Contact Resistance 50mΩ max
Dielectric 700V AC for 1 minute
Insulation Resistance 1,000M Min.at Ω500V DC
Max Current Capacity 1A
Temperature Rating -40℃~+155 ℃
Life Span 1,5000times

Product image

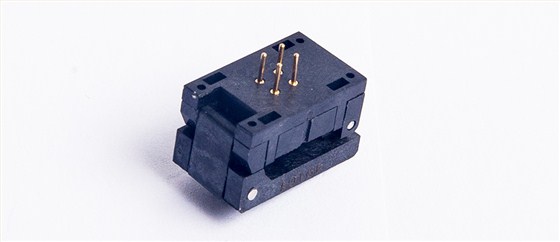

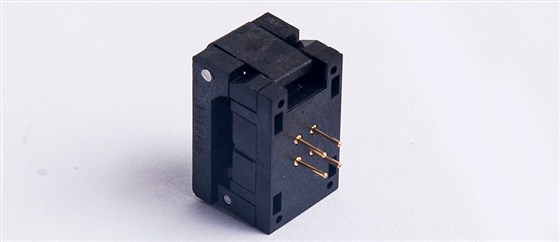

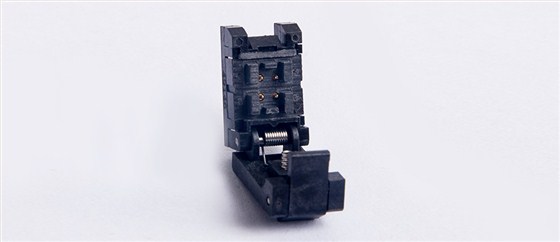

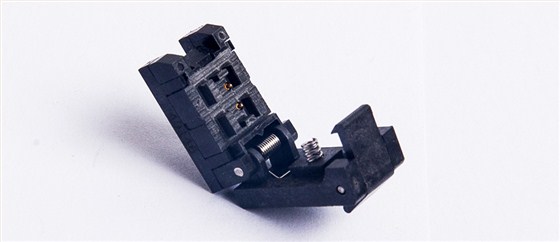

Crystal oscillator socket

Crystal oscillator socket

Crystal oscillator socket

Crystal oscillator socket
