3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Sock

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket Reader BGA153 BGA169 BGA162 BGA186 BGA221 Data Recovery SD Interface
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • Apply to eMMC/eMCP of Samsung , Sandis k , Toshiba , Hynix , Micron , HTC , MTK , Intel etc .

  • Apply to BGA153/169 & BGA162/186 & BGA221 test

  • eMMC/eMCP data can be read and written fastly

  • Accurate positioning on flat bottom pad and solder of eMMC/eMCP

  • Support flat bottom and solder ball testing .

  • Technical support and datasheet are available if you need .

  • we are the original manufacturer and welcome anyone to be our distribution agents

  • Professional manufacturer in all kinds of IC chip testing sockets and adapters.

  • More Quantities with LOWER PRICE!

  • More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

Specification and Dimension

Type : Test & Programming Socket ( with pcb , pogo pin / probe )
Package : eMMC 153/169 , eMCP 162/186 , eMCP 221
Pin pitch 0.5 mm

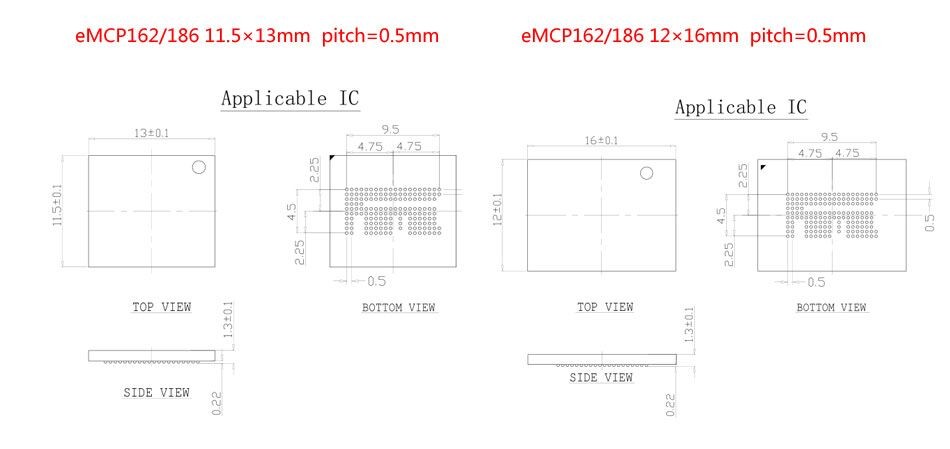

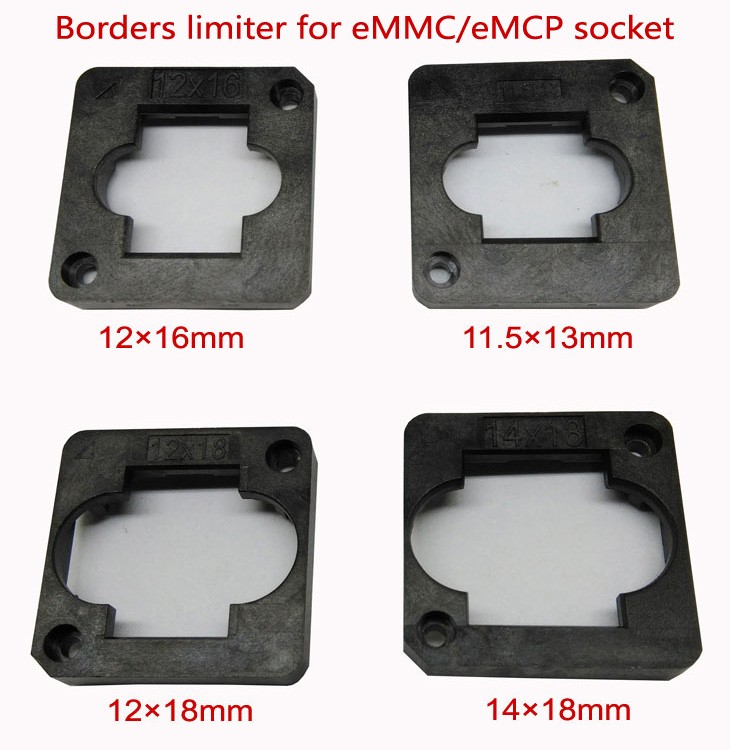

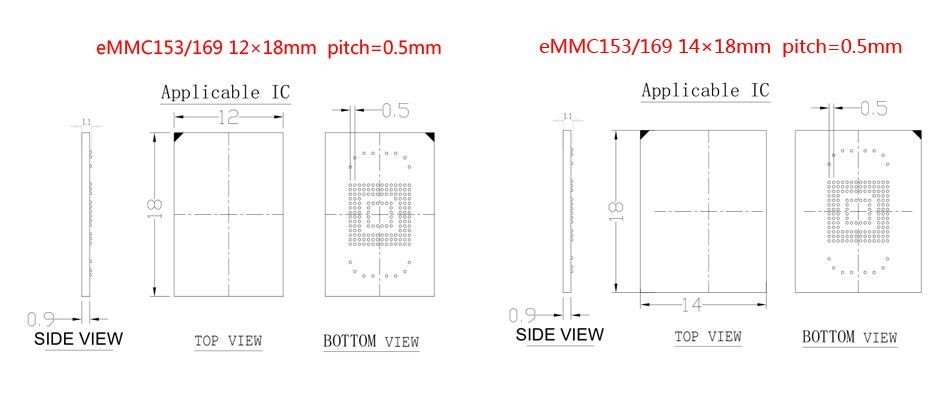

Applicable IC body size : 11.5X13mm , 12x16 mm , 12x18mm , 14x18mm
eMMC/eMCP thickness : 0.8mm - 1.5mm

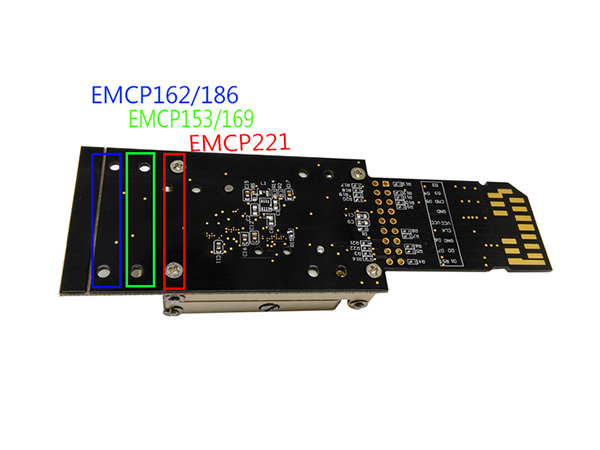

Test different IC ( BGA153/169 , BGA162/186 , BGA221 ) by moving test socket position , very easy to operate .

Product image

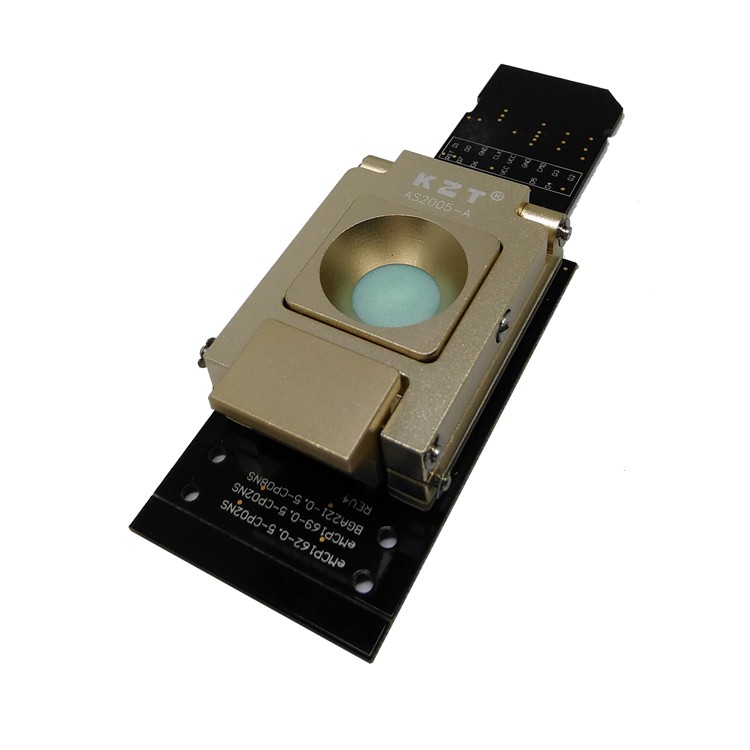

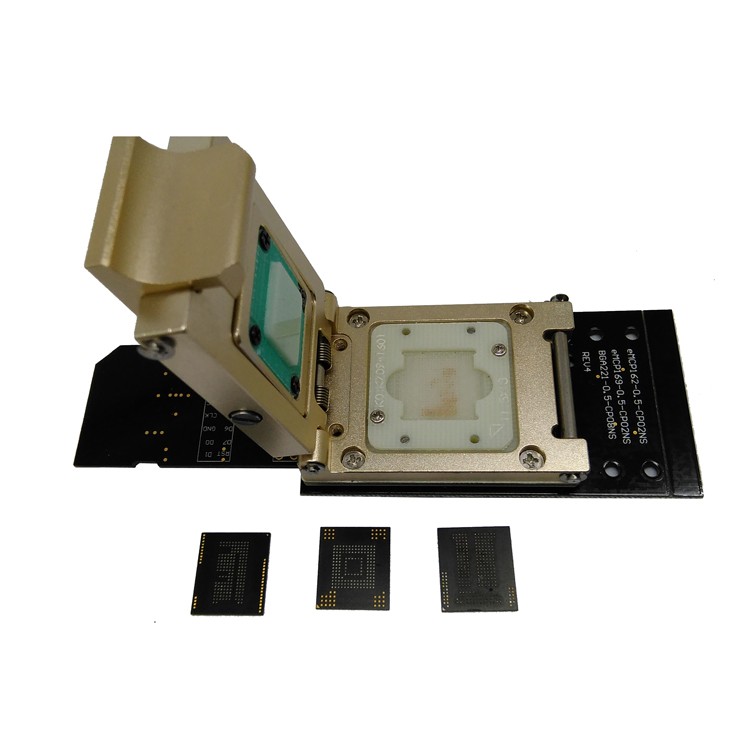

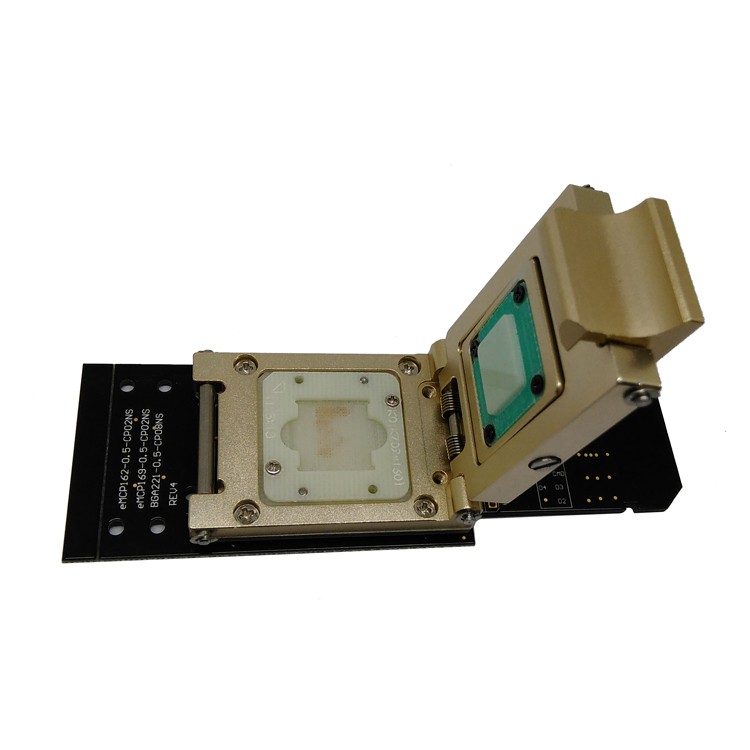

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 alloy Pogo Pin Test Socket
