Crystal oscillator socket

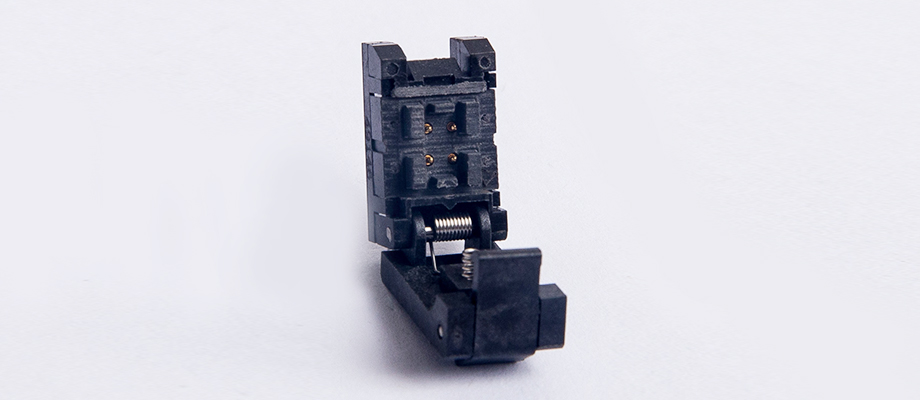

Crystal oscillator burn in socket for 4pin crystal size 2.00X1.6mm thickness 0.5~0.7mm XO for 0~100℃ burn in test.

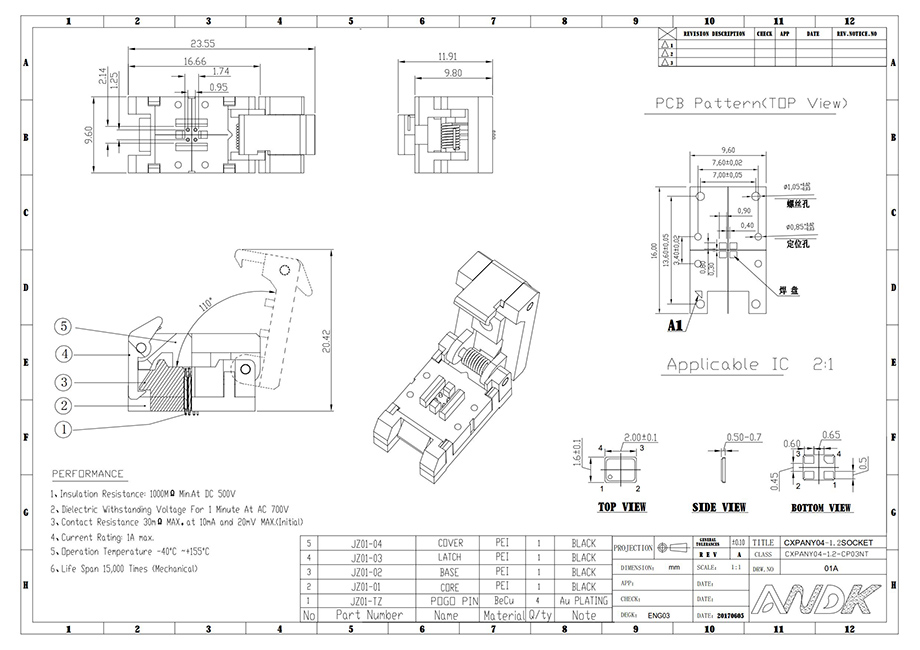

Hotline:+8618824309157 Drawing:Download

Product features

  • 1.Structure:Open Top/ Clamshell;

  • 2.Adopting engineering material for socket structure,strength is high,lifetime is long;

  • 3.Adopting Imported BeCu material for socket contact spring,thickening gold-plating surface,impedance is small,elasticity is good.

Material & Performance

socket Body PEI
Contacts Beryllium Copper Alloy
Contact Plating Gold over Nickel
Operation Force 0.5KG min, the more PINs the greater force
Contact Resistance 50mΩ max
Dielectric 700V AC for 1 minute
Insulation Resistance 1,000M Ω500V DC
Max Current Capacity 1A
Temperature Rating -40℃~+155 ℃
Life Span 1,5000times

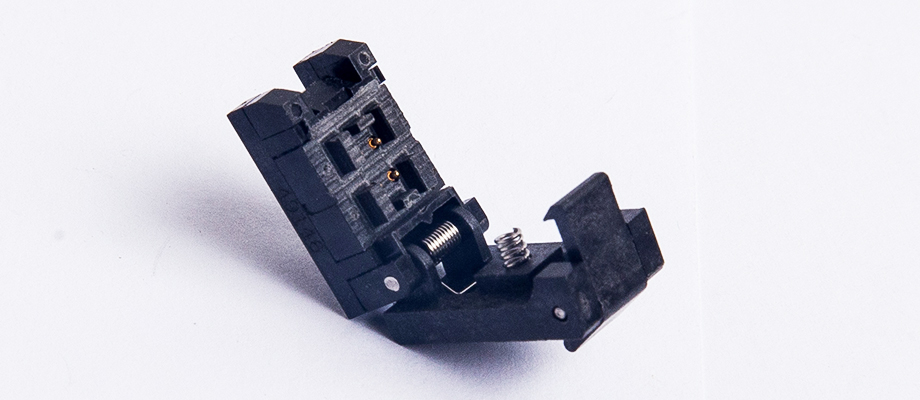

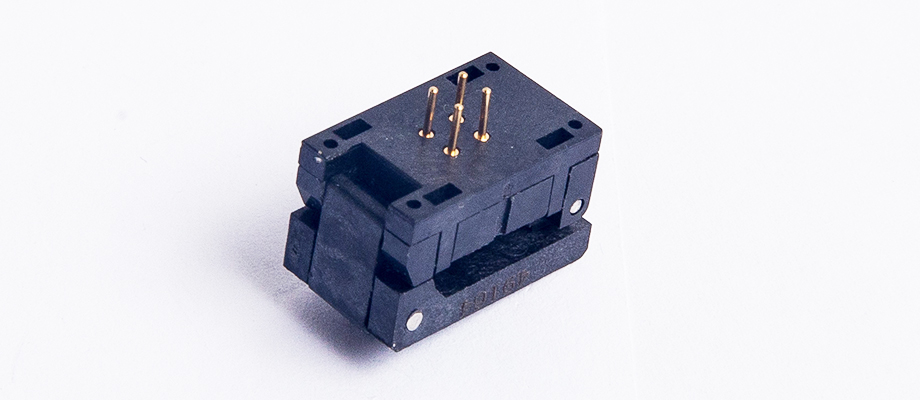

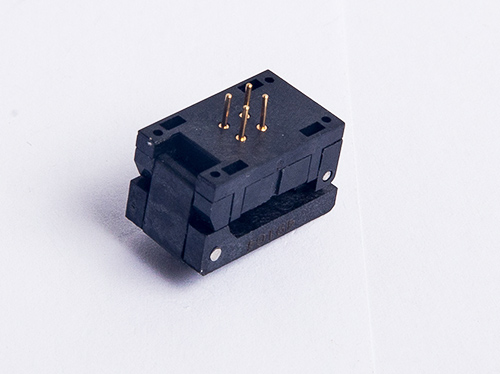

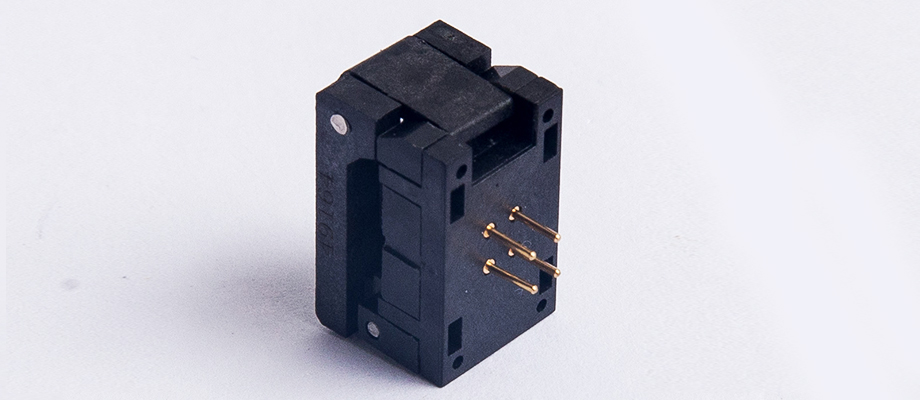

Product image

Crystal oscillator socket

Crystal oscillator socket

Crystal oscillator socket

Crystal oscillator socket
