QFP32 0.8 7*7 Test Programming Socket
QFP32 TQFP32 LQFP32 to DIP32 Universal Programmer Pin Pitch 0.8mm IC Body Size 7x7mm Adapter SMT/SMD Test Socket
Specification and Dimension
| Model Number: | QFP 32 Test & Programming Socket |
| Type: | Test Programming Socket(with PCB) |
| Package: | QFP , TQFP , LQFP |
| Pin Pitch: | 0.8 mm |
| Pin Count | 32 pins |
| Applicable IC body size: | 7*7mm |
| IC tip-to-tip: | 9*9 mm |
| Life Span: | 15,000 times |
|
|
|

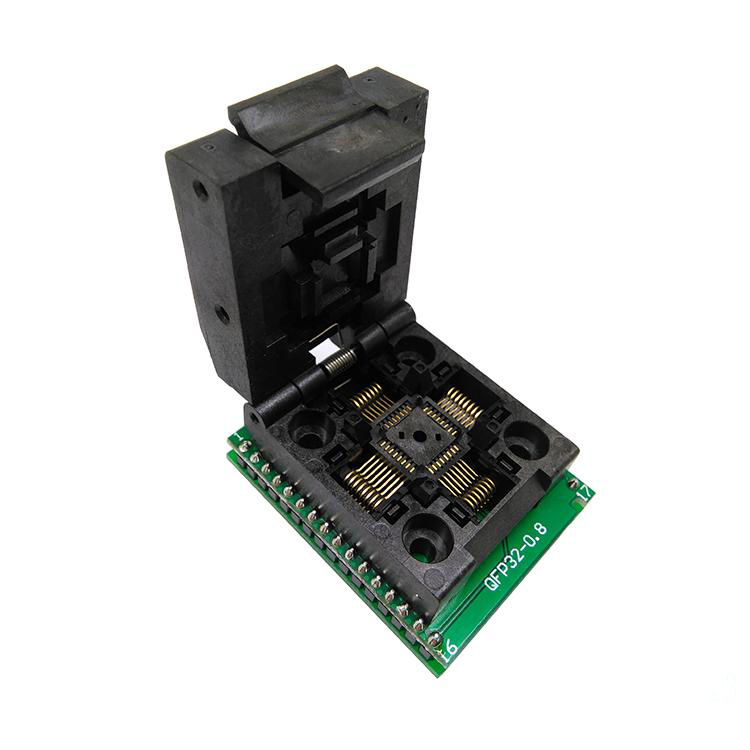

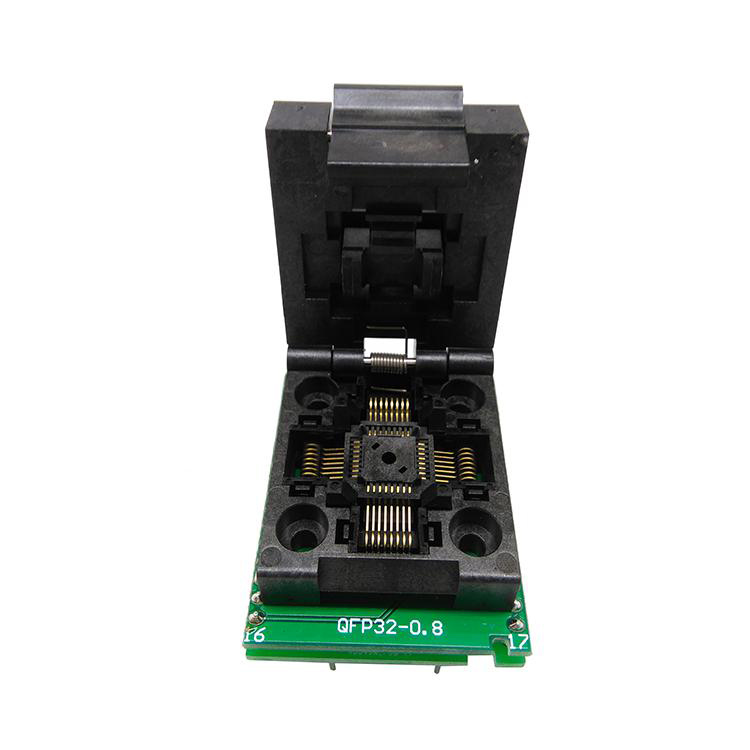

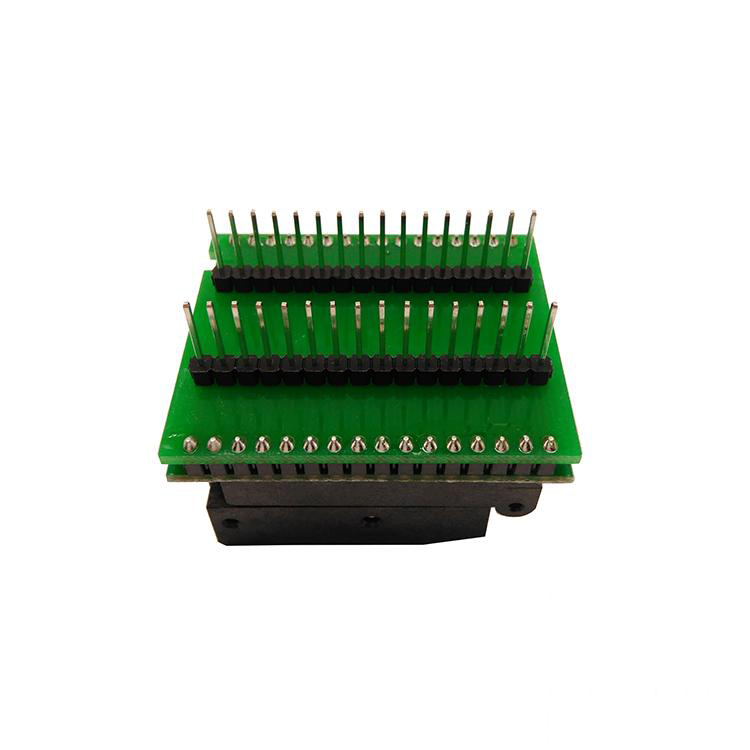

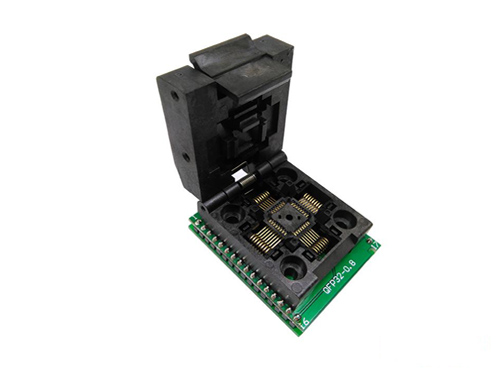

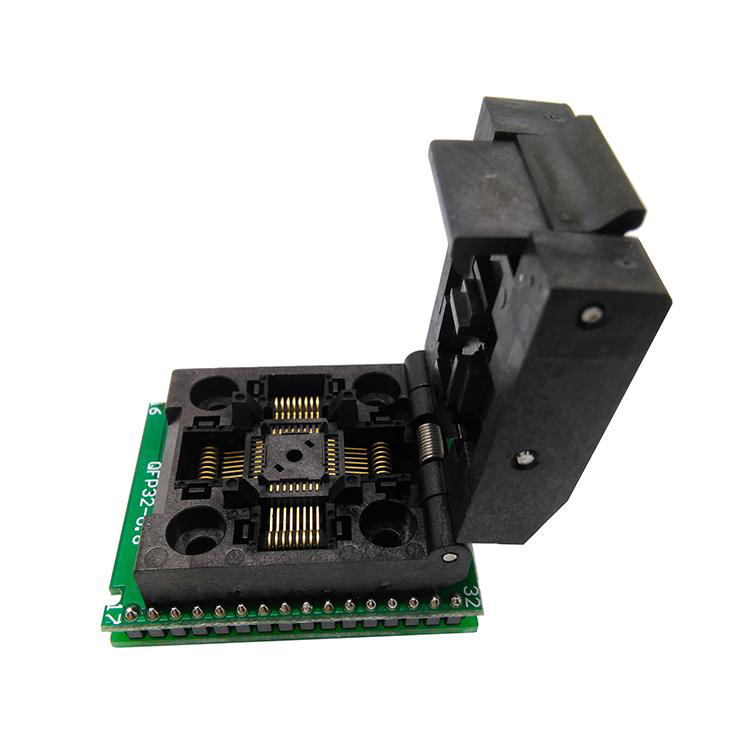

Product image
