QFP48 0.5 open top burn in socket
QFP48 TQFP48 LQFP48 Open top Pitch 0.5mm Programmer Socket FPQ-48-0.5-06 Test Flash Adapter
Product Introduction:
-
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP /TQFP/LQFP -
2. Applicable Package : QFP48, TQFP48 , LQFP48 , pin pitch 0.5mm

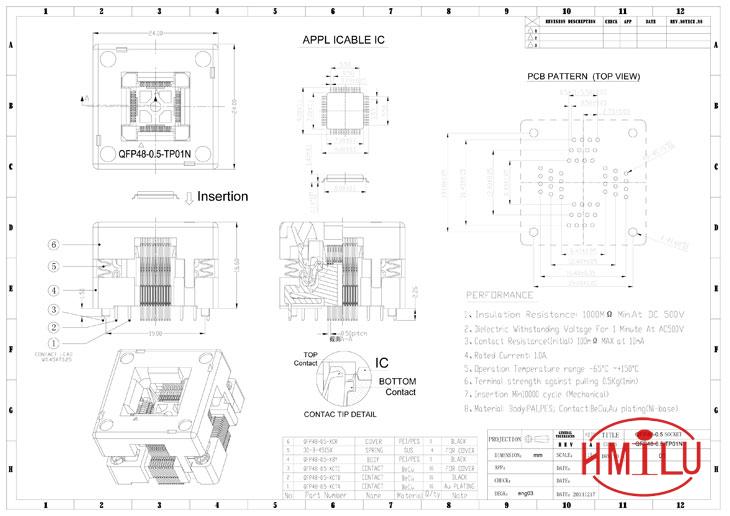

Specification and Dimension :
-
a)a) Type : QFP48-0.5-TP01N
b) Pin pitch : 0.5 mm
c) Pin Count : 48
d) Applicable IC Body Dimension : 7*7 mm ( including pin dimension : 9*9 mm)
Specification and Dimension
| Type: | QFP 48, TQFP 48, LQFP 48, burn in Socket |
| Pin Pitch: | 0.5mm |
| Pin: | 48 |
| Applicable IC Body Dimension: | 7*7 mm ( including pin dimension : 9*9 mm) |
| Product description: |
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP48/TQFP48/LQFP48 2. Applicable Package : QFP 48 , TQFP 48 , LQFP 48 , pin pitch 0.5mm |

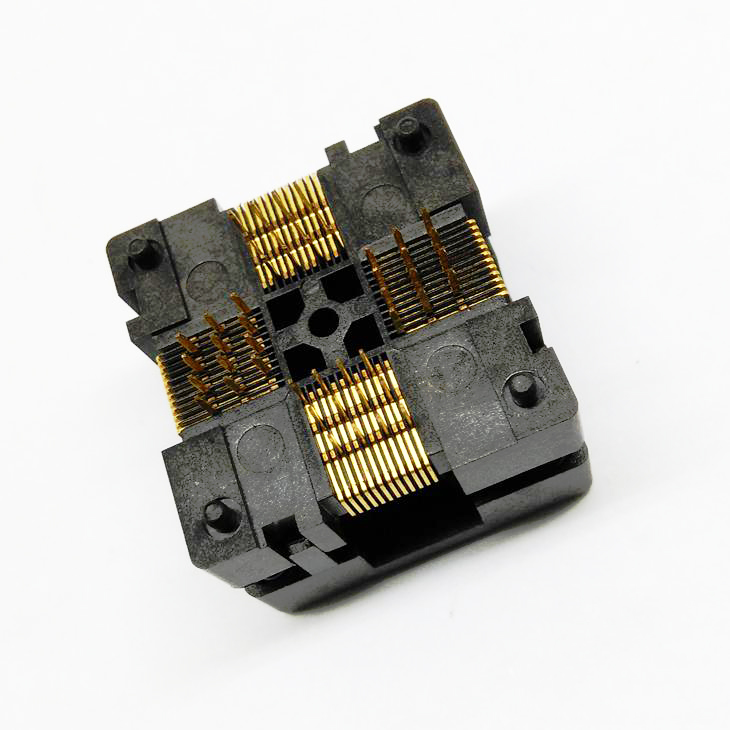

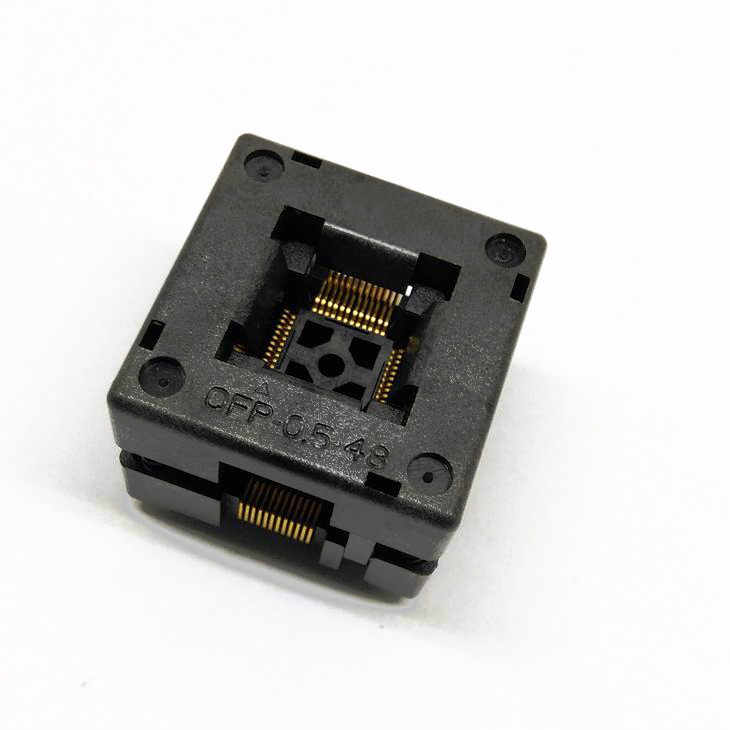

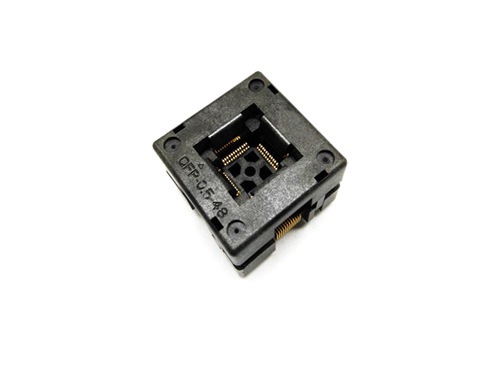

Product image
