TQFP80 FQFP80 QFP80 programming socket

TQFP80 FQFP80 QFP80 to DIP80 OTQ-80-0.5-02 Burn in Test Socket Pitch 0.5mm IC Body Size 12x12mm programming socket ZIF adapter
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Feature:


  • * 100% brand new , high Quality and duarable

  • * Tested before shipping

  • * Easy to use

  • * Technical support and datasheet are available if you need .

  • * Professional manufacturer in all kinds of IC chip testing sockets and adapters.

  • * More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

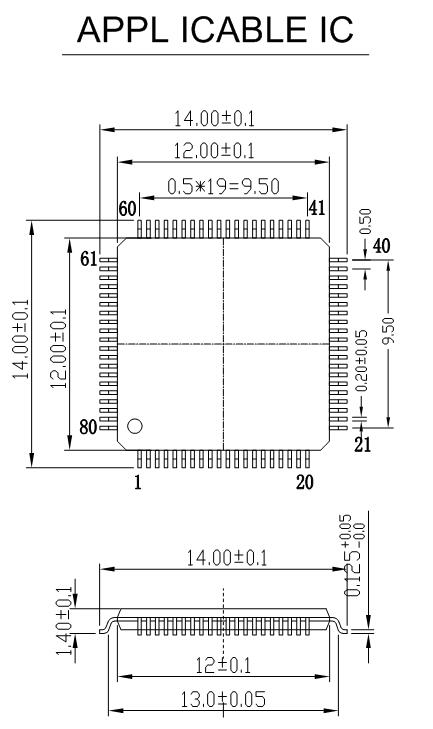

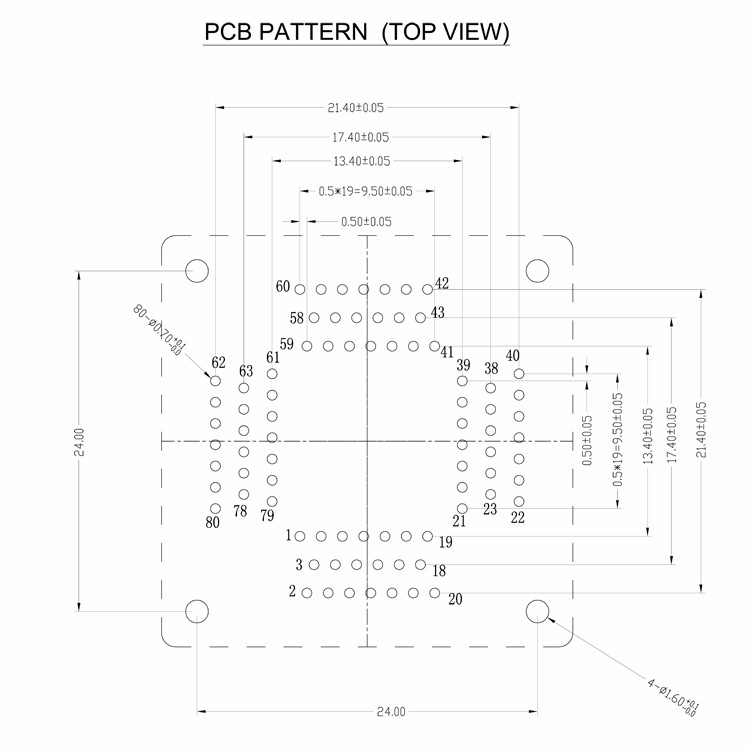

Specification and Dimension :


  • * Type : Test & Burn in Socket ( with pcb )

  • *Package : QFP80 , TQFP80 , LQFP80

  • * Pin Pitch : 0.5 mm

  • * Pin Count : 80 pins

  • * Applicable IC body size : 12x12 mm

  • * IC tip-to-tip : 14x14 mm

Specification and Dimension

Model Number: QFP 80 Test & Burn in Socket
Type: Test & Burn in Socket ( without pcb )
Package: QFP 80 , TQFP 80 , LQFP 80
Pin Pitch: 0.5 mm
Pin Count: 80 pins
Applicable IC body size: 12x12 mm
IC tip-to-tip: 14x14 mm
Structure: Open Top
Life Span: 15,000 times
Model: OTQ-80-0.5-02B
Specification and Dimension : * Type : Test & Burn in Socket ( with pcb )
* Package : QFP 80 , TQFP 80 , LQFP 80
* Pin Pitch : 0.5 mm
* Pin Count : 80 pins
* Applicable IC body size : 12x12 mm
* IC tip-to-tip : 14x14 mm

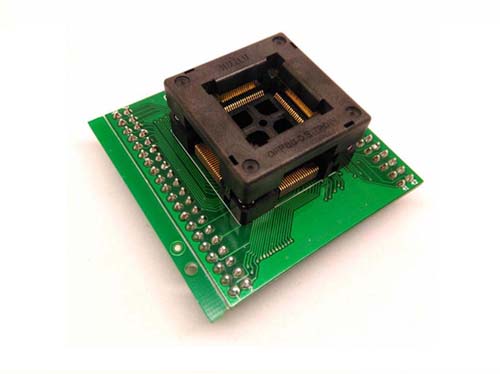

Product image

TQFP80 FQFP80 QFP80 Burn in Socket TB2aS0ueXXXXXbGXXXXXXXXXXXX-597517770

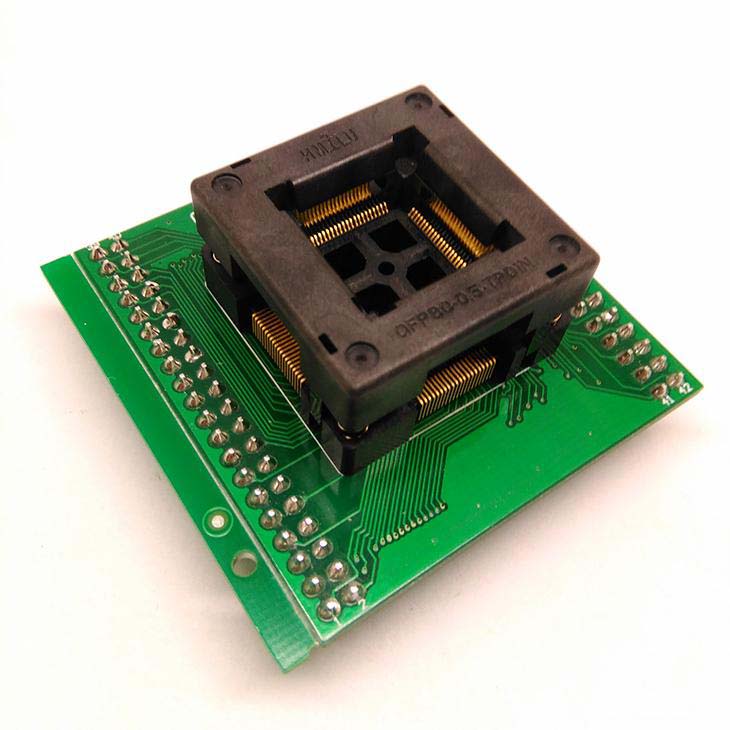

TB2D2BBeXXXXXXCXXXXXXXXXXXX-597517770

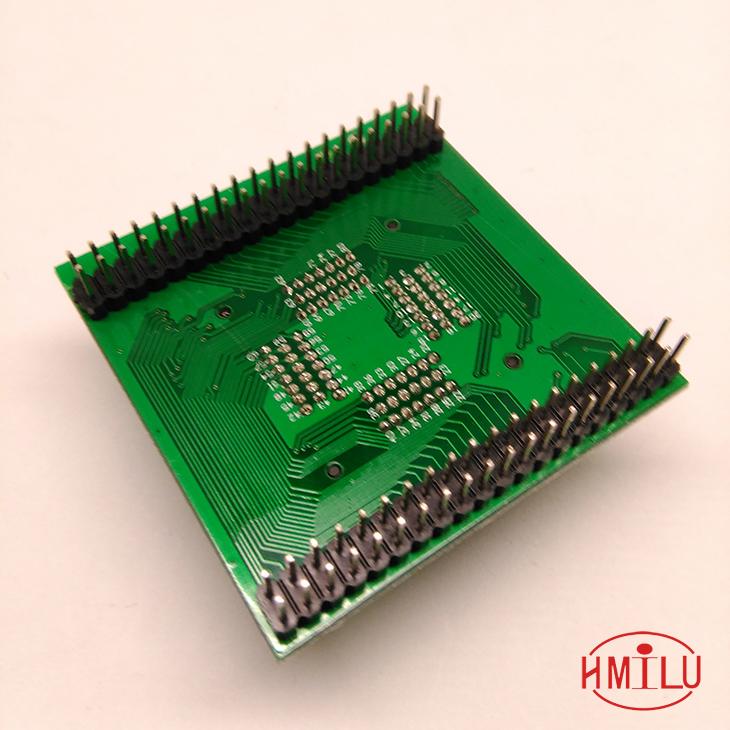

TB2n9XneXXXXXXwXpXXXXXXXXXX-597517770
