BGA132BGA152 Test Socket to DIP96 adapter for SSD 8CE test ClamS
Pin Pitch:1.0mm
Pin:88
Applicable Chip size:12x18mm 14x18mm
Product description:a) usage : programmer socket , test socket , for BGA152 chip testing , date reading b) applicable packag...

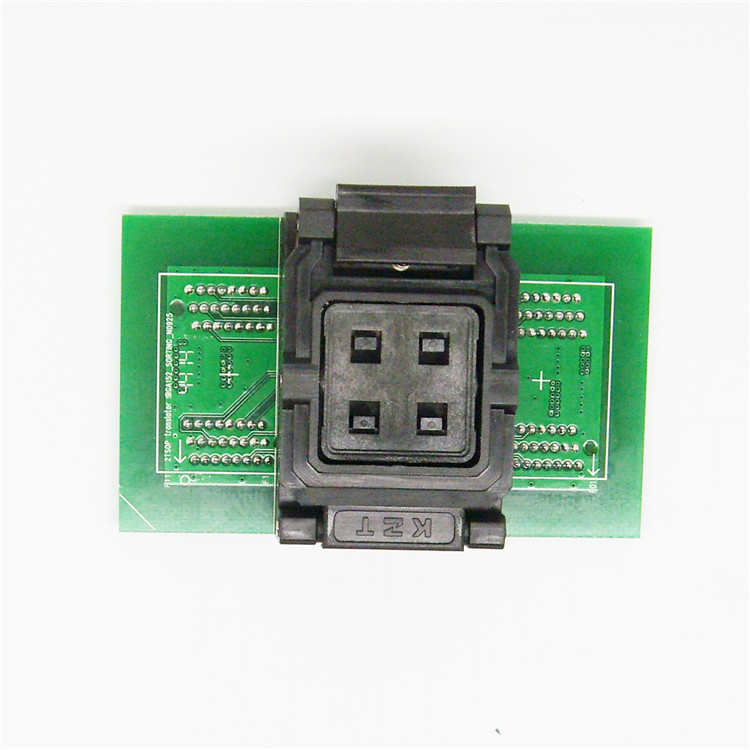

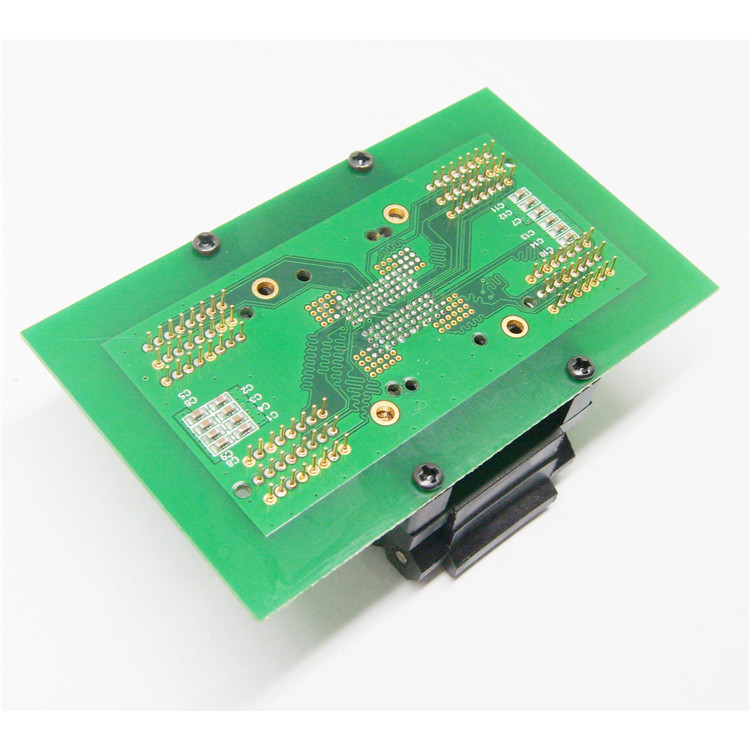

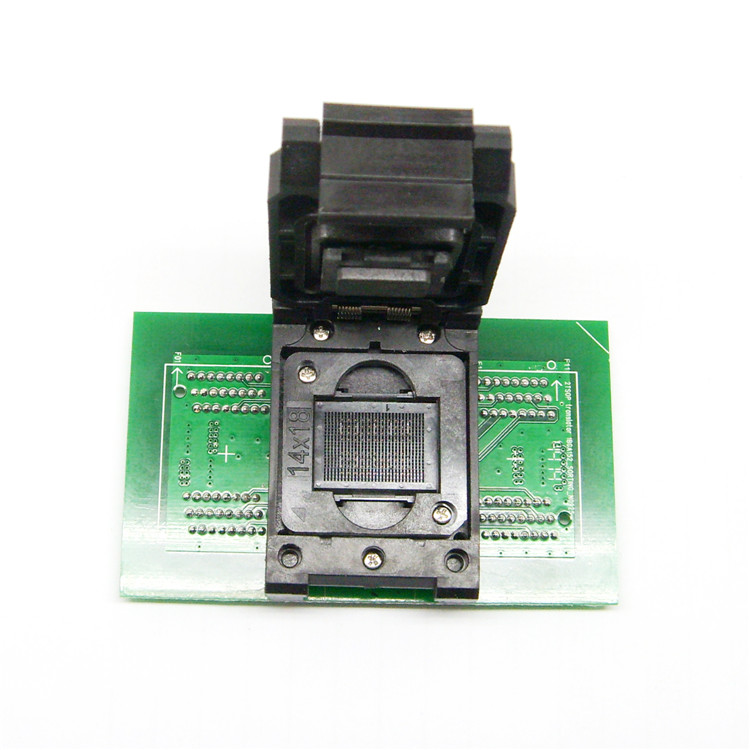

BGA132/BGA152 Test Socket to DIP96 adapter for SSD 8CE test ClamShell socket BGA152 Flash Memory Burn In Test IC Size optional ( The test board can support BGA132/152 and TSOP48 exchange )
a) usage : programmer socket , test socket , for BGA152 chip testing , date reading
b) applicable packaging : BGA132 / BGA152 Pin Pitch : 1.0mm
c) test socket : BGA132/152-1.0 to dip96 for 8CE
e) character : dispense with welding , cost saving
Specification and Dimension :
1. Model : BGA132/152-1.0
2. Pin Pitch : 1.0 mm
3. Pin :88
4. Applicable Chip size : 12*18 / 14*18 ( can change border limiter , please leave a message tell us which size )
We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! !If you have any quote or enquiry , please feel free to contact us !!!
