BGA137 to DIP48 Adapter

Type:BGA137 to dip 48 programming socket Pin Pitch:0.8mm Pin Count:137 Applicable IC body width:10.5*13 Product description: BGA137 test socket is my company to FLASH industry research and development
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

BGA137 to DIP48 Adapter IC Test Socket SSD flash Socket Programmer Socket Open Top Structure Test adapter

BGA137 test socket is my company to FLASH industry research and development of low-cost, suitable for mass aging test! The lowest cost of the program, the product using probe structure, this structure with imported beryllium copper gold has a good telescopic performance, a special crescent-shaped needle, but also can do Japan and other brands test seat can not do important features: We can have the ball without the ball can be tested! While other brands can only test the new ball with the chip. Most of our market flash products are tested with our company defined the standard pin DIP48, you can insert the country, the core state, silicon grid, SMI, Maike micro, Jianrong any test board can be tested for customer savings The biggest cost! In addition, our company has TSOP48 double-touch test seat, BGA107 / 100/132/137/149/152/169/162 / LGA52 60 all kinds of DIP48 / SD / USB interface test socket)

Feature and Dimension :

a) Type : BGA137-0.8

b) Pin pitch : 0.8mm

c) Pin Count : 137

d) Applicable IC body width : 10.5*13

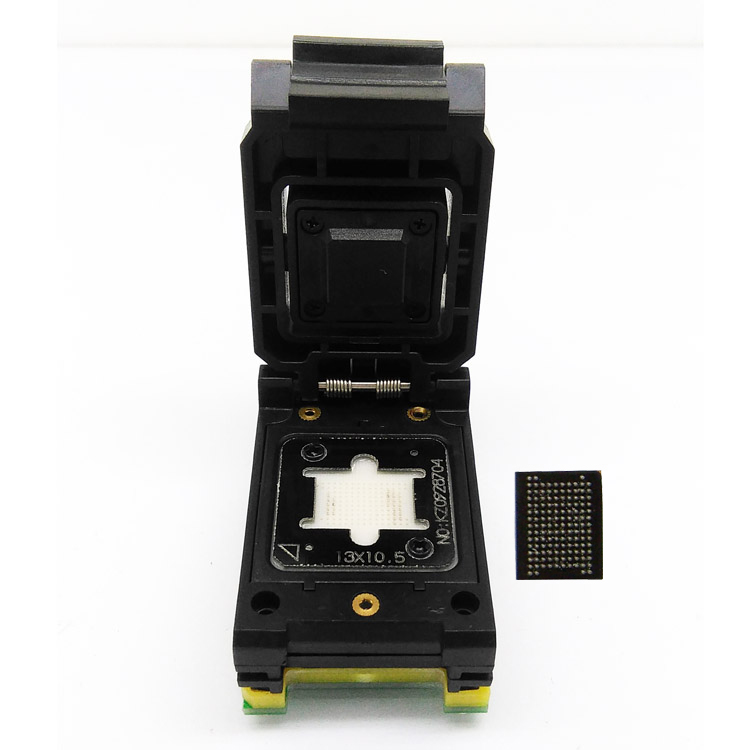

BGA137 6

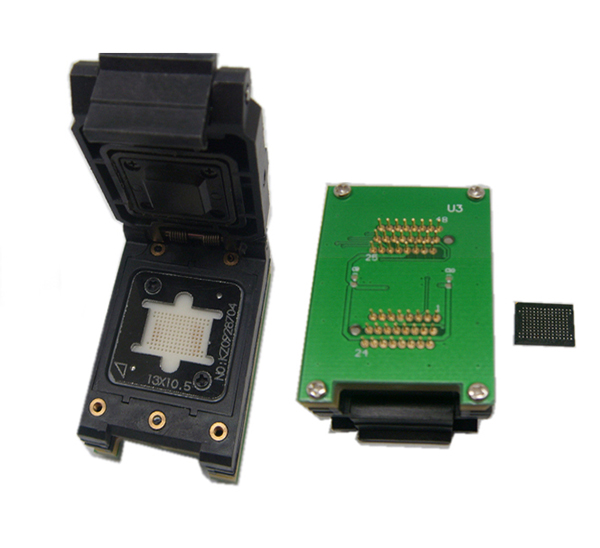

BGA137

BGA137 1

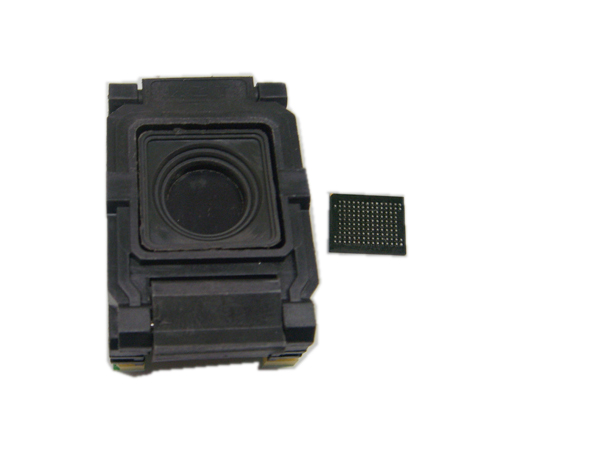

BGA137 2

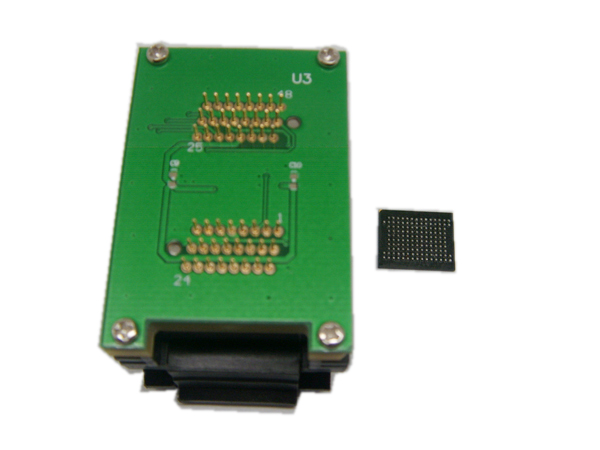

BGA137 3

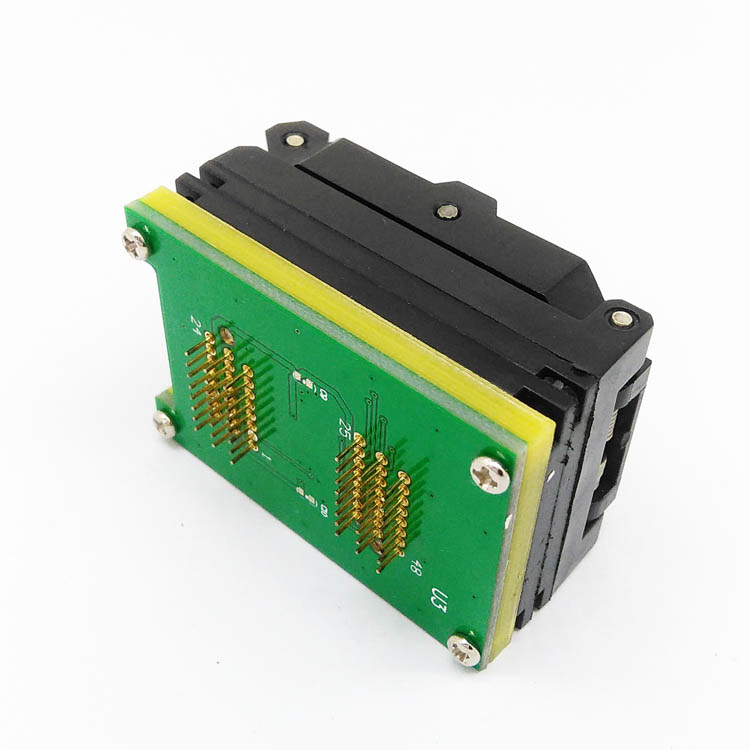

BGA137 5

BGA137 6

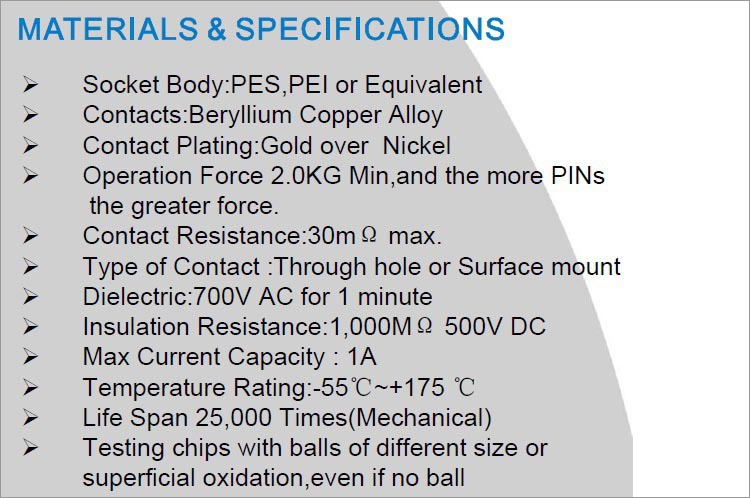

BGA137
