DDR2 3 4 Burn in Test Socket 60/84/78/96 GDDR3 136pin Ball Pin P

Contact resistance:30m oh MAX.at 10mA and 20mV MAX...
Test lifetime:15000 times
Pin Pitch:0.8mm
Working temperature:-55~175 degree
Product description:DDR2 3 4 Burn in Test Socket 60/84/78/96 GDDR3 136pin Ball Pin Pitch 0.8mm DDR DIMM DRA...
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

DDR2 3 4 Burn in Test Socket 60/84/78/96 GDDR3 136pin Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer

Specification :

a) DDR2/34 60/84/78/96 Ball Pitch 0.8

b) working temperature:-55~175℃

c) Apply to Memory Chip of Sumsung , Hynix , Winbond , Micron etc

d) Socket material :PEI

e) Rated current : 1A

f) Contact resistance : 30m oh MAX.at 10mA and 20mV MAX(Start)

g) Test lifetime : 15000 times

Please leave us a message which size / datasheet of your chip , so we can send the proper socket , thanks a lot !

We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! !

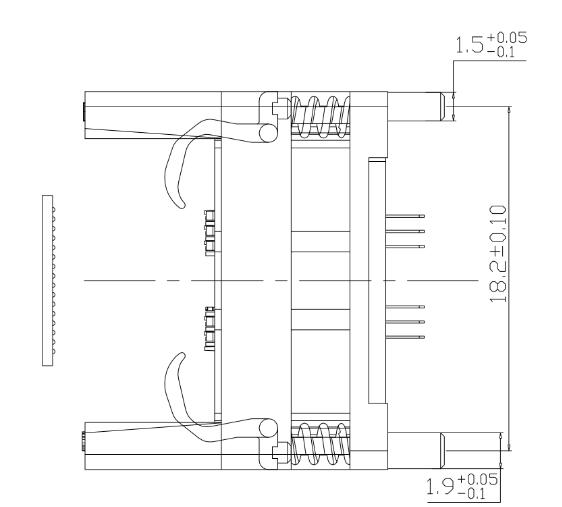

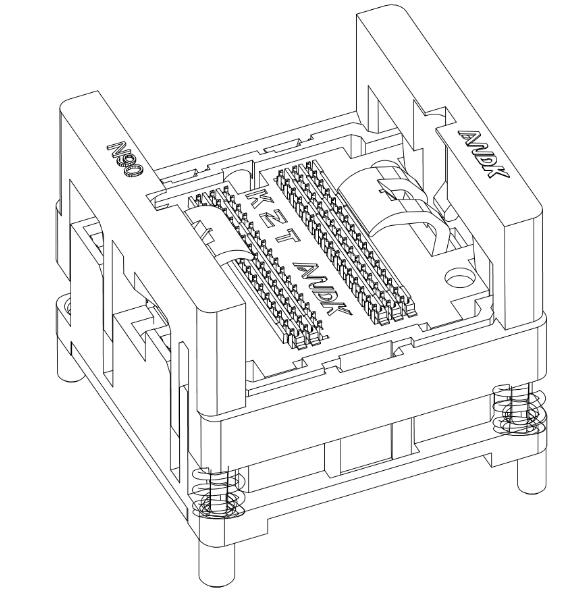

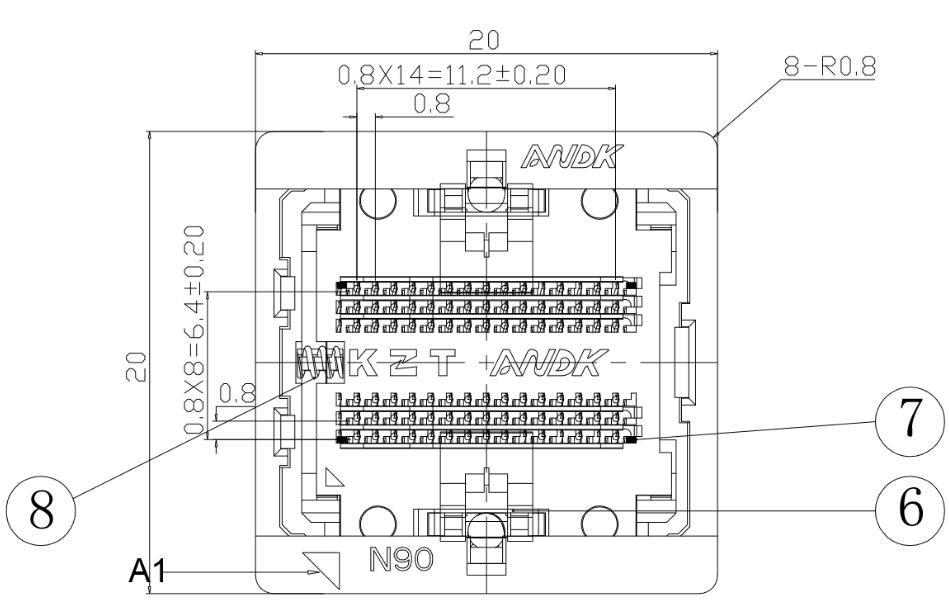

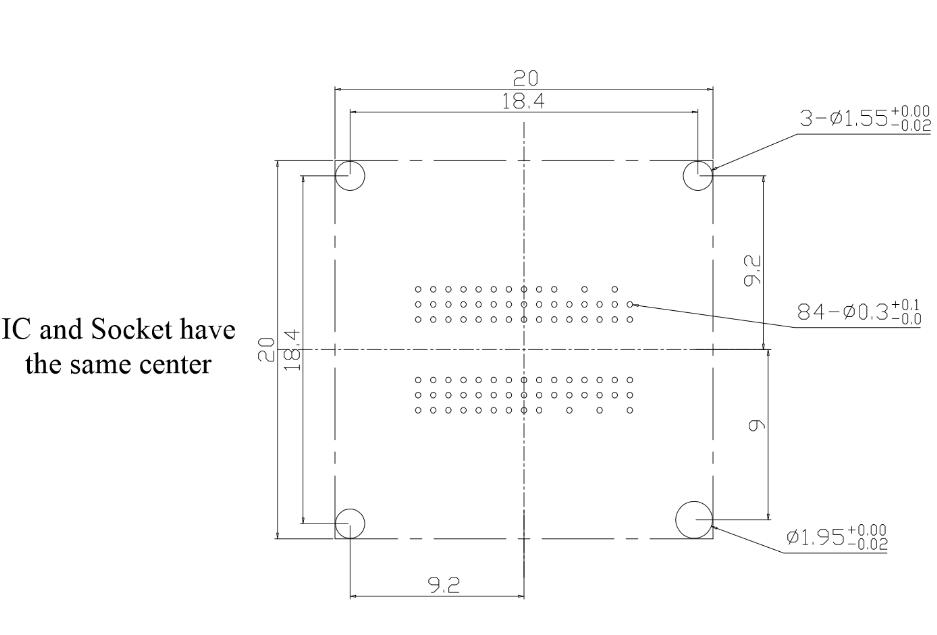

DDR2 3 4 Burn in Test Socket

DDR2 3 4 Burn in Test Socket

DDR2 3 4 Burn in Test Socket

DDR2 3 4 Burn in Test Socket
