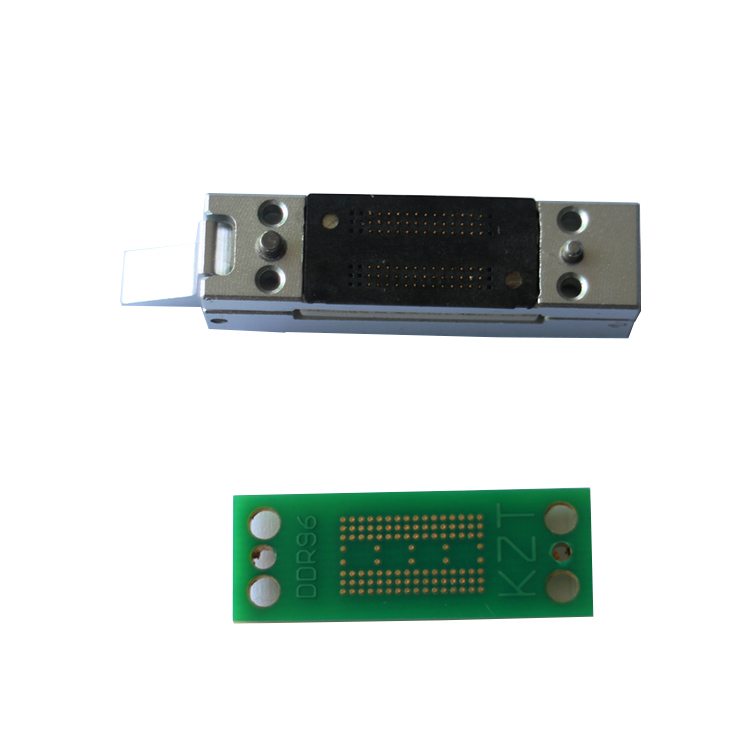

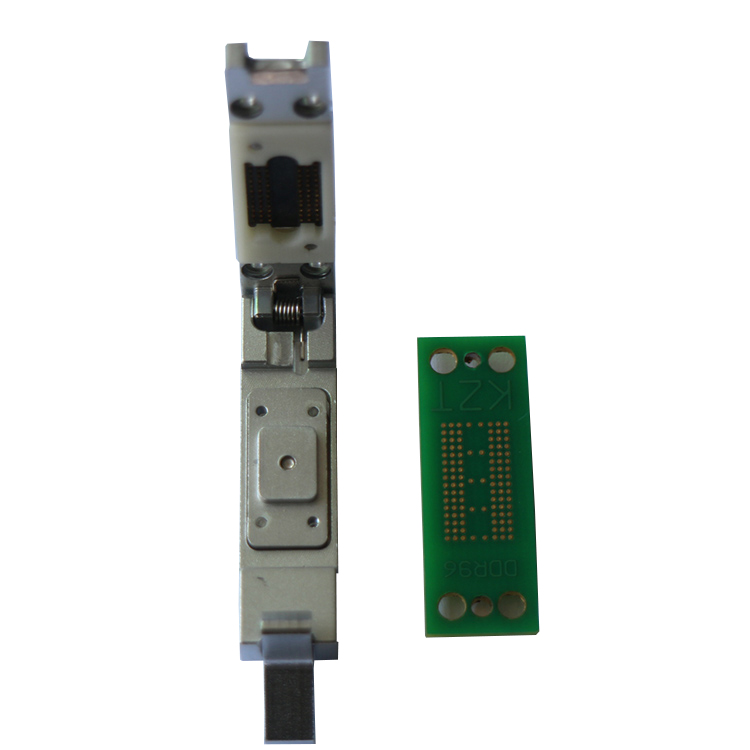

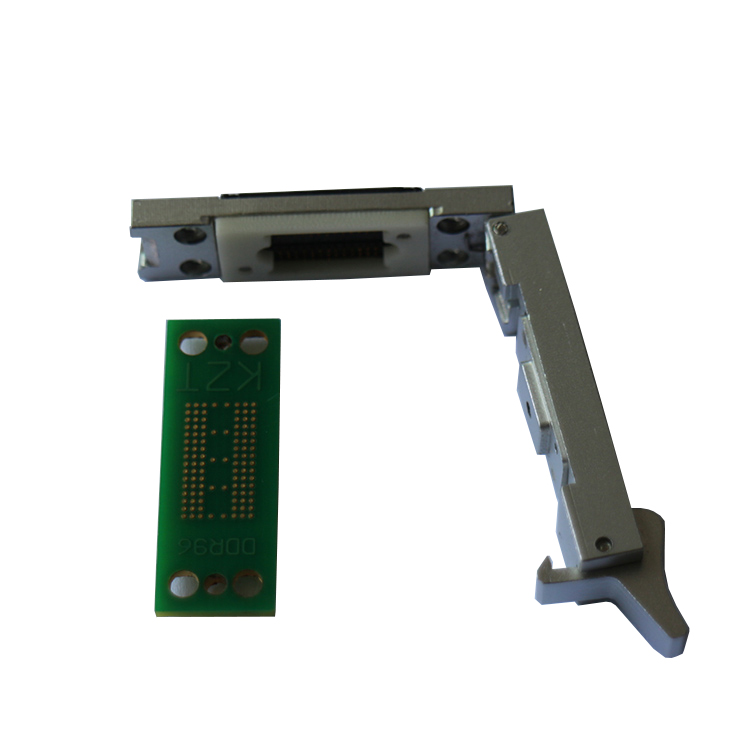

DDR2 3 4 Memory Chip Test Socket 8 Bit /16 Bit Universal Socket
Socket material:aluminium alloy , glass fiber
Test lifetime:100000 times
Pin Pitch:0.8mm
Test lifetime:100000 times
Pin Pitch:0.8mm
DDR2 3 4 Memory Chip Test Socket 8 Bit /16 Bit Universal Socket 78/96 Ball Pin Pitch 0.8mm Pogo Pin Wholesale
Specification :
a) DDR3 78/96 Ball Pitch 0.8
b) Frequency F : Exceed 2800Mhz
c) Apply to Memory Chip of Sumsung , Hynix , Winbond , Micron etc
d) Socket material : aluminium alloy , glass fiber
e) Rated current : 1.5A
f) Contact resistance : 65-182 mohm
g) Test lifetime : 100000 times
Please leave us a message which size / datasheet of your chip , so we can send the proper socket , thanks a lot !
We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! !
