DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM

Socket material:PEI
Rated current:1A
Contact resistance:30m oh MAX.at 10mA and 20mV MAX...
Test lifetime:15000 times
Pin Pitch:0.8mm
Working temperature:-55~175 degree
Part number:DDR3-0.8 78pin Burn in socketv Product description:a) DDR3-0.8 78pin Burn in socket b) working temperature:-55~175℃ c) Apply to Memory Chip of Sum...
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer test DDR NAND chips

Specification :

a) DDR3-0.8 78pin Burn in socket

b) working temperature:-55~175℃

c) Apply to Memory Chip of Sumsung , Hynix , Winbond , Micron etc

d) Socket material :PEI

e) Rated current : 1A

f) Contact resistance : 30m oh MAX.at 10mA and 20mV MAX(Start)

g) Test lifetime : 15000 times

Please leave us a message which size / datasheet of your chip , so we can send the proper socket , thanks a lot !

We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! !

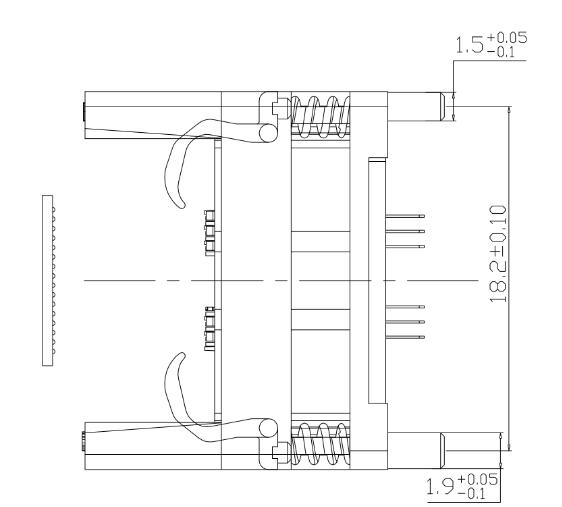

DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm3

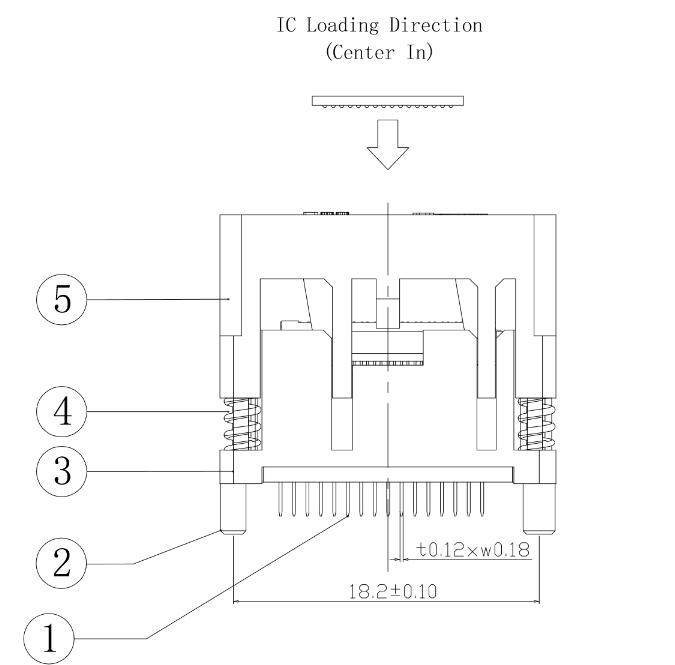

DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm2

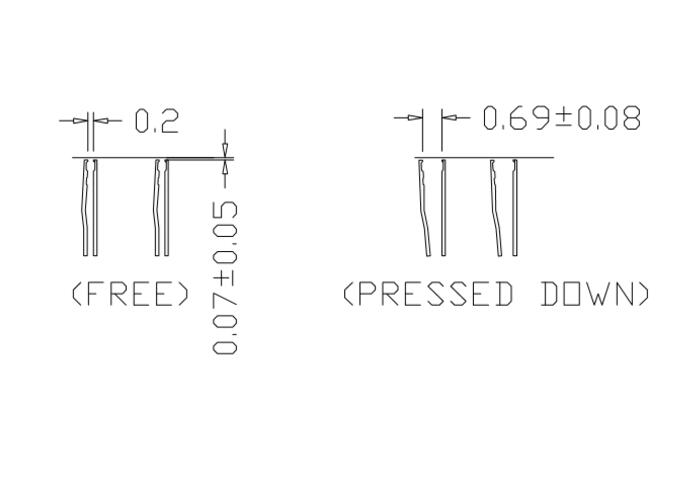

DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm1

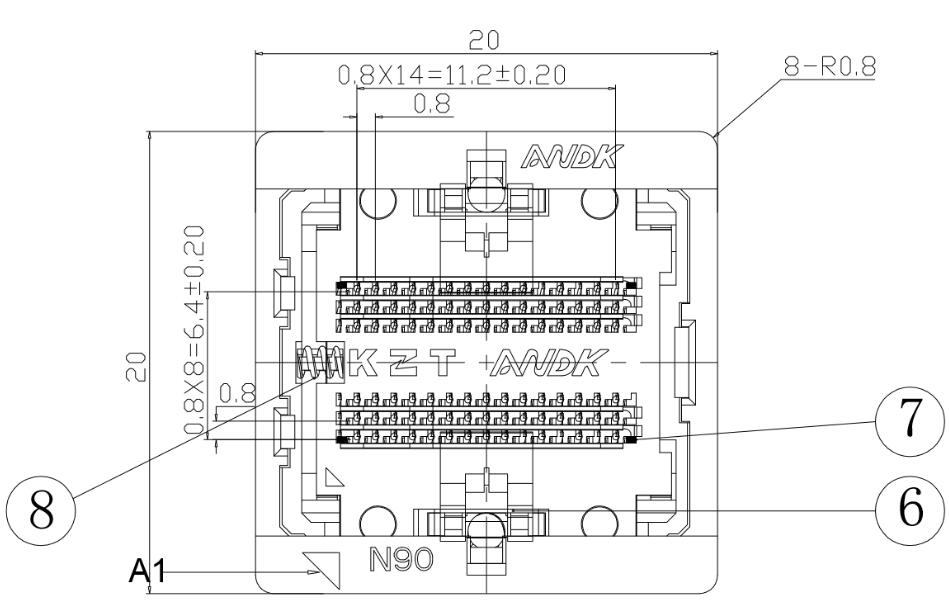

DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm

DDR3-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer test DDR NAND chips
