DDR4-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM

Working temperature:-55~175 degree
Part number:DDR4-0.8 78pin Burn in socket
Product description:DDR4-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer t...
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

DDR4-0.8 78pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer testing DDR NAND chips

Specification :

a) DDR4-0.8 78pin Burn in socket

b) working temperature:-55~175℃

c) Apply to Memory Chip of Sumsung , Hynix , Winbond , Micron etc

d) Socket material :PEI

e) Rated current : 1A

f) Contact resistance : 30m oh MAX.at 10mA and 20mV MAX(Start)

g) Test lifetime : 15000 times

Please leave us a message which size / datasheet of your chip , so we can send the proper socket , thanks a lot !

We're the original manufaturer , we can provide the lowest and competitive

price , the shortest processing time is guaranteed ! ! !

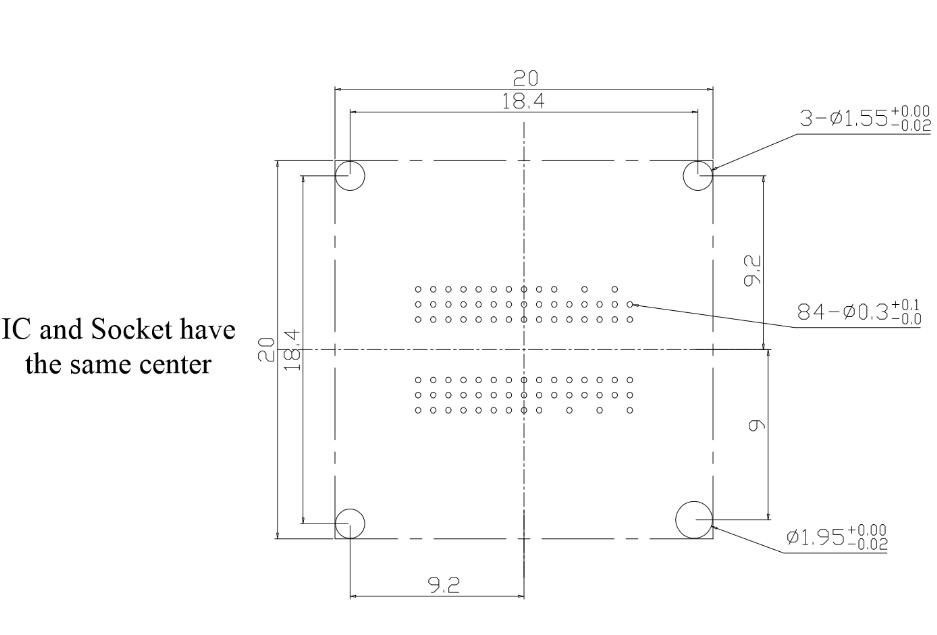

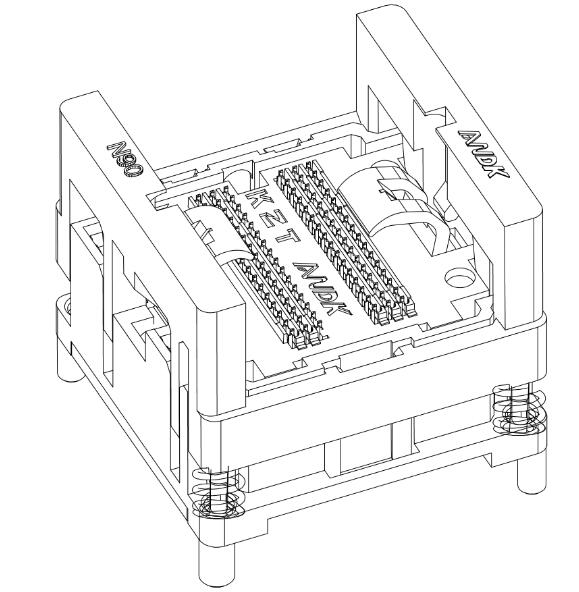

DDR4-0.8 78pin

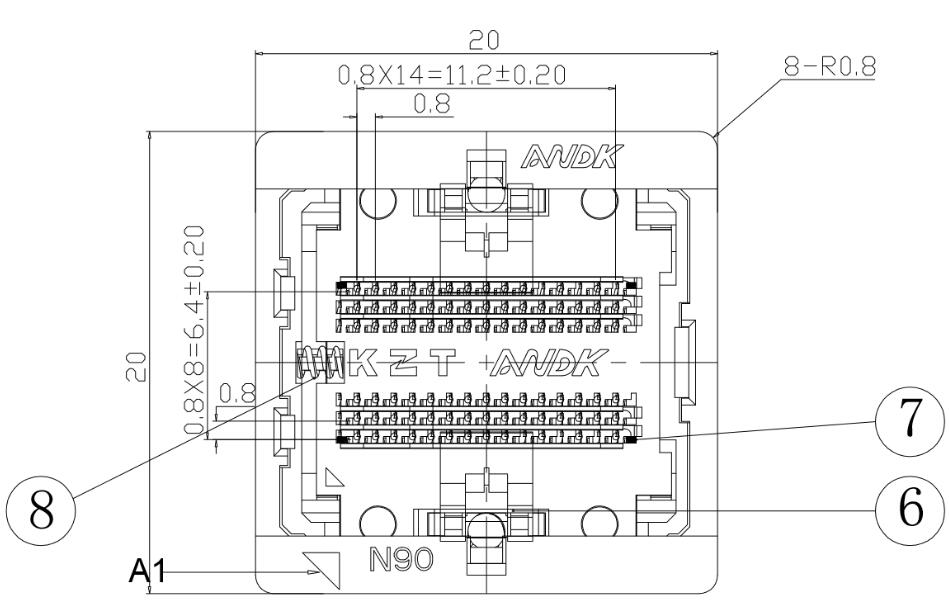

DDR4-0.8 78pin 4

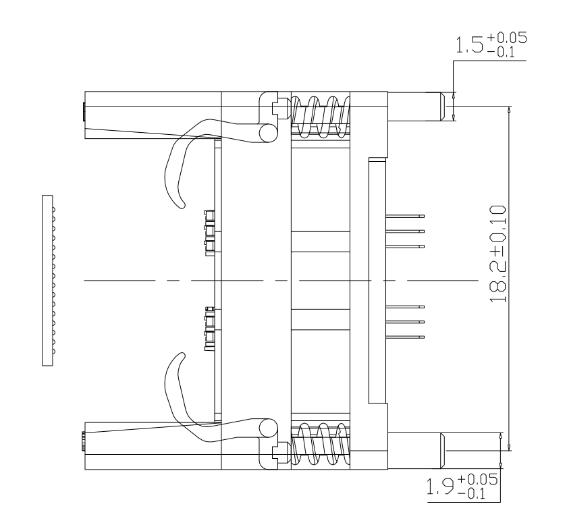

DDR4-0.8 78pin 3

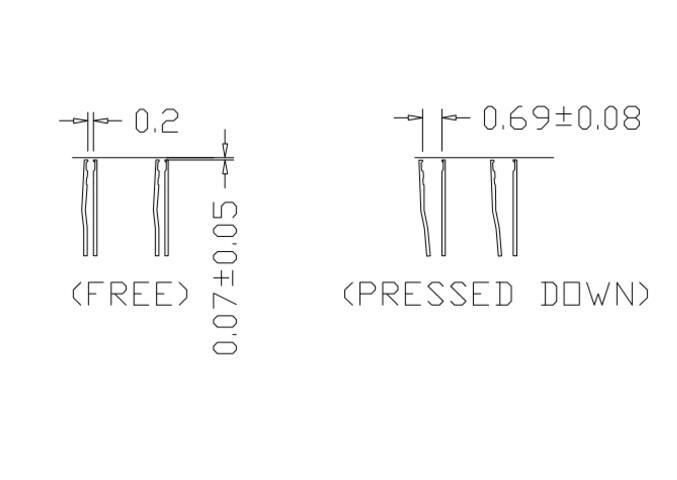

DDR4-0.8 78pin 2

DDR4-0.8 78pin 1

DDR4-0.8 78pin
