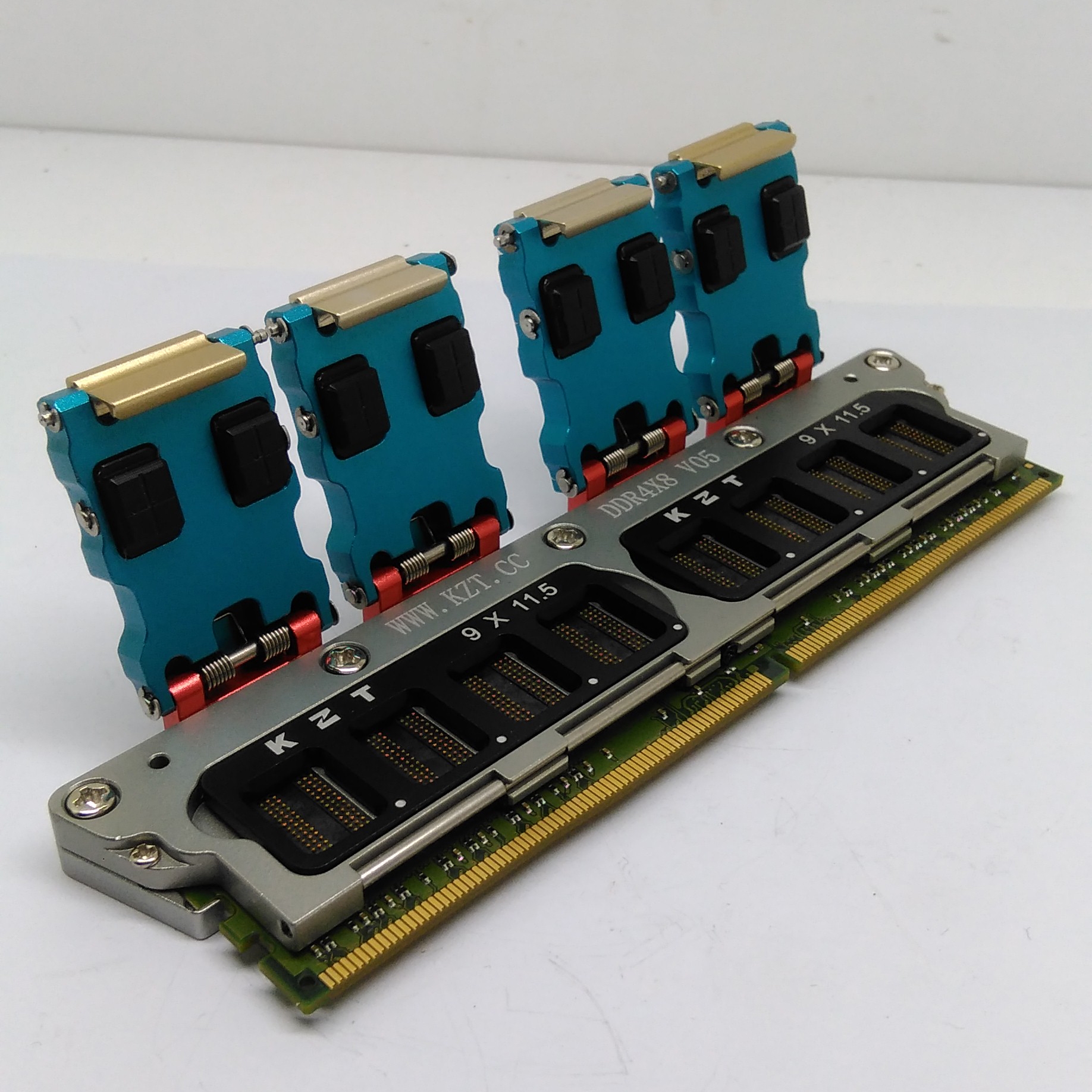

DDR4 SDRAM Particle Test Fixture Multi-fuction All in one Jig Me
DDR4 x 8 SDRAM Particle Test Fixture Multi-fuction All in one Memory Chip Jig
DDR4 chip has mutiple size specification , please tell us your chip size when placing order , for your convenience to test the IC , basically we provide 4 sets complimentary frame guide ( 7.5*11mm , 9*11mm , 9*11.1mm , 9*11.5mm )
a) DDR4x 8 SDRAM Particle Test Fixture
b) Frequency : Exceed 2800Mhz
c) Apply to memory chip of Sumsung , Hynix , Winbond , Micron etc
d) Socket material : aluminium alloy , glass fiber
e) Contact resistance : 65-182 mohm
f) Test lifetime : 100000 times
We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed . If you have any quote or enquiry , please feel free to contact us !!!
