ddr3 78 ball test fixture
DDR test fixture for DDR particle test 78ball 96ball and other special chip test
parameter
| Application IC | DDR2 DDR3 DDR4 |
| DDR particle | 78ball 96ball and others |
| DDR particle size | 7.5*11mm 7.5*13mm and other size. |
| Support Frequency |
DDR2 800MHz DDR3 1600~1866MHz DDR4 2400~4000MHz~+ |
| Material | Contact Rubber |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
Advantage
-
1.Rubber contact pin to protect the IC chip ball fine; -
2.the fixture is based on the real DDR device,99% simulated real test; -
3.Alloy shell to make protect well.

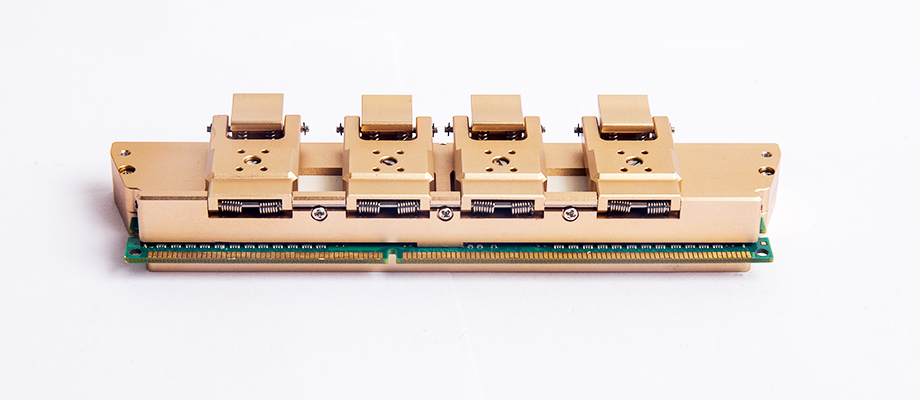

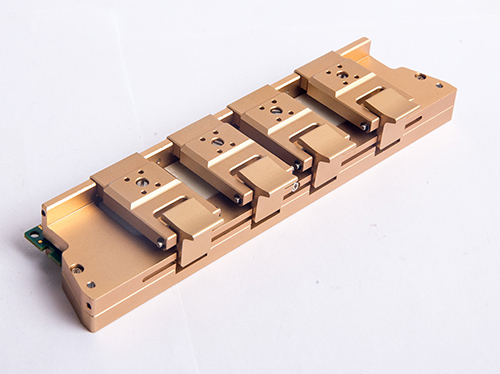

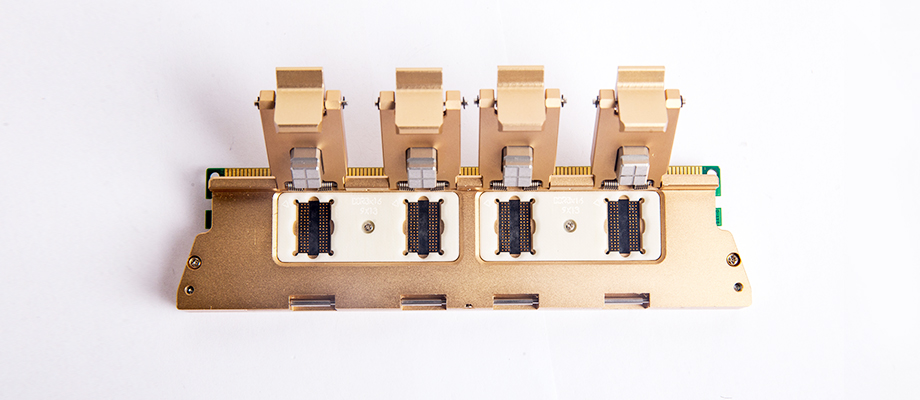

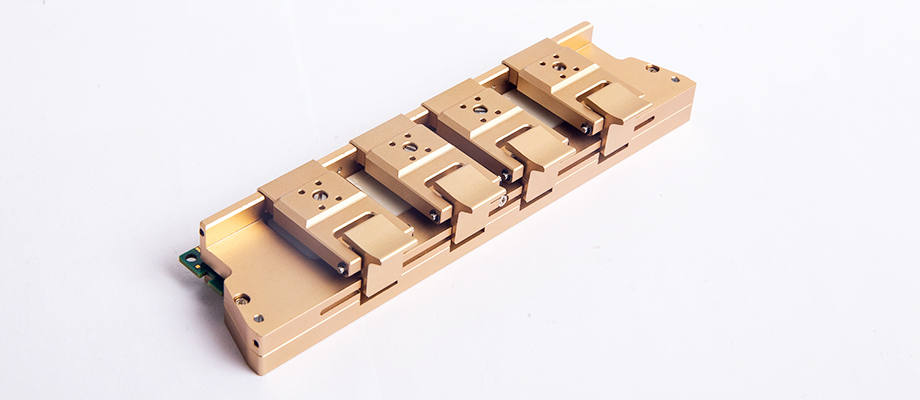

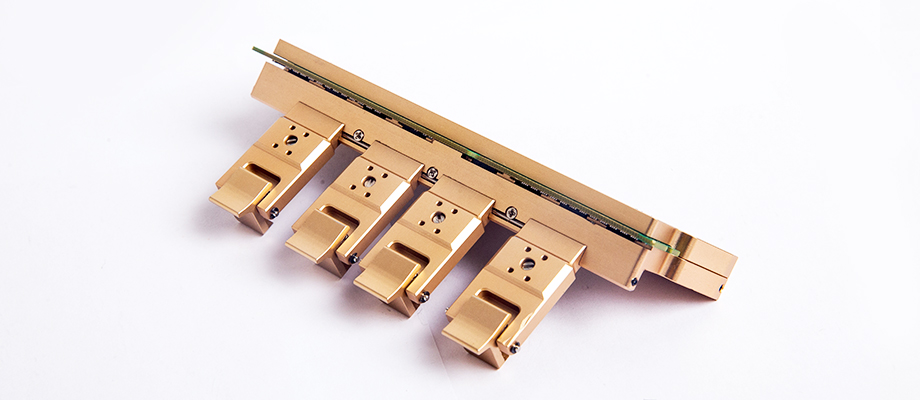

Product image
