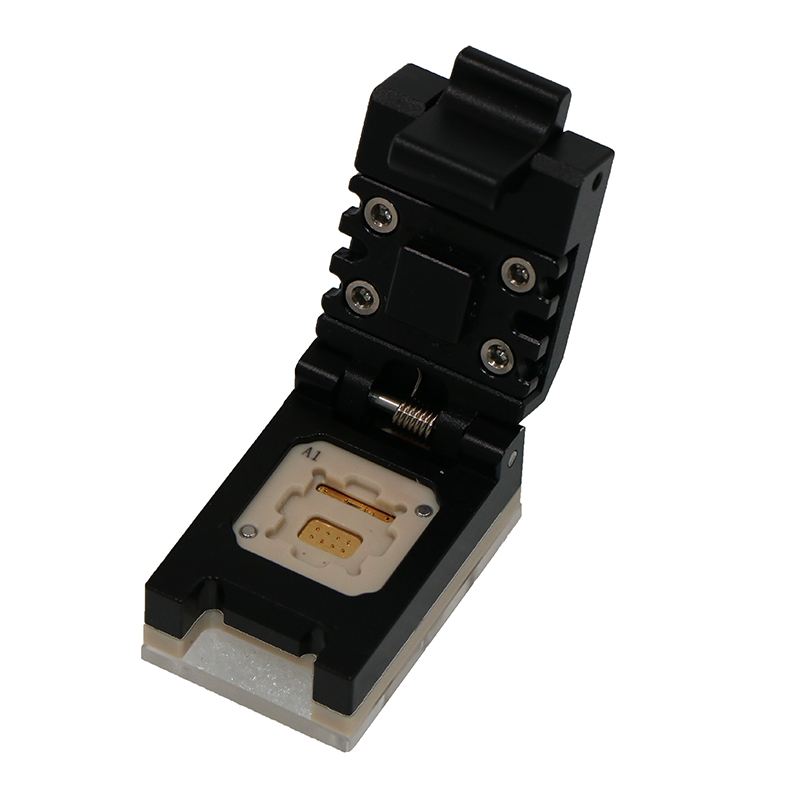

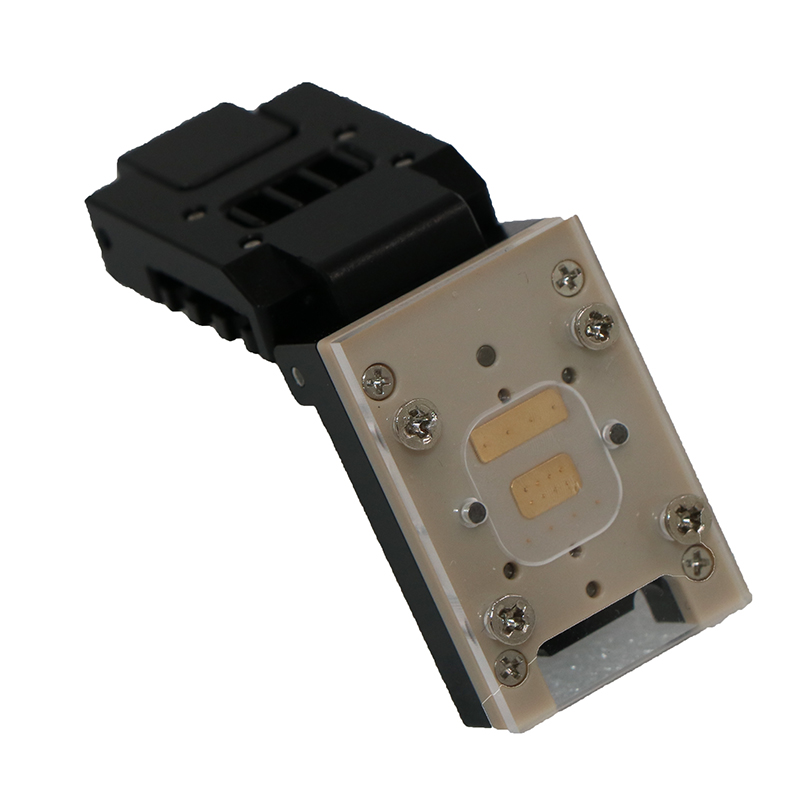

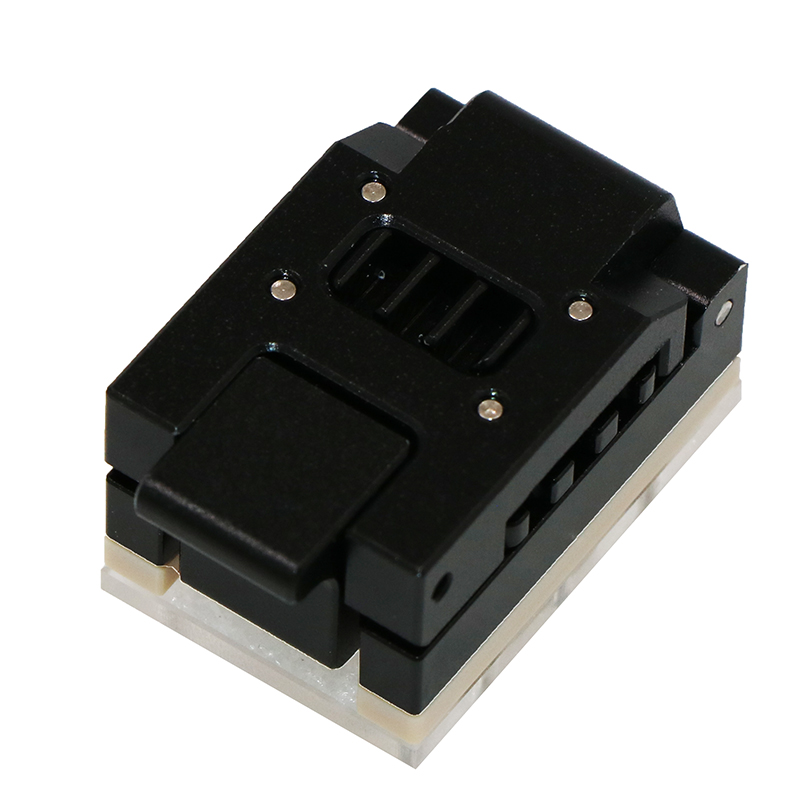

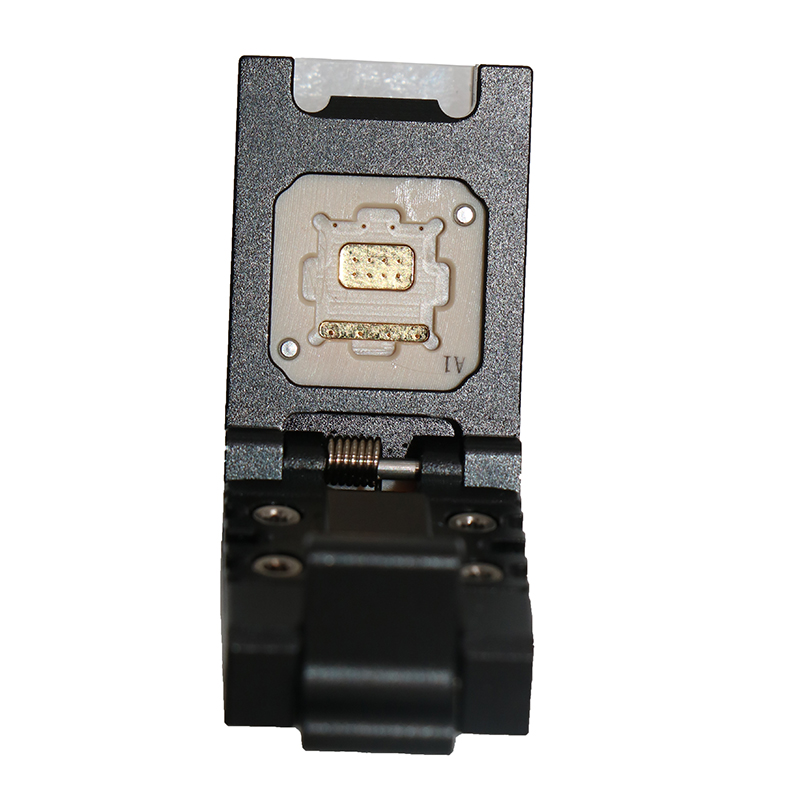

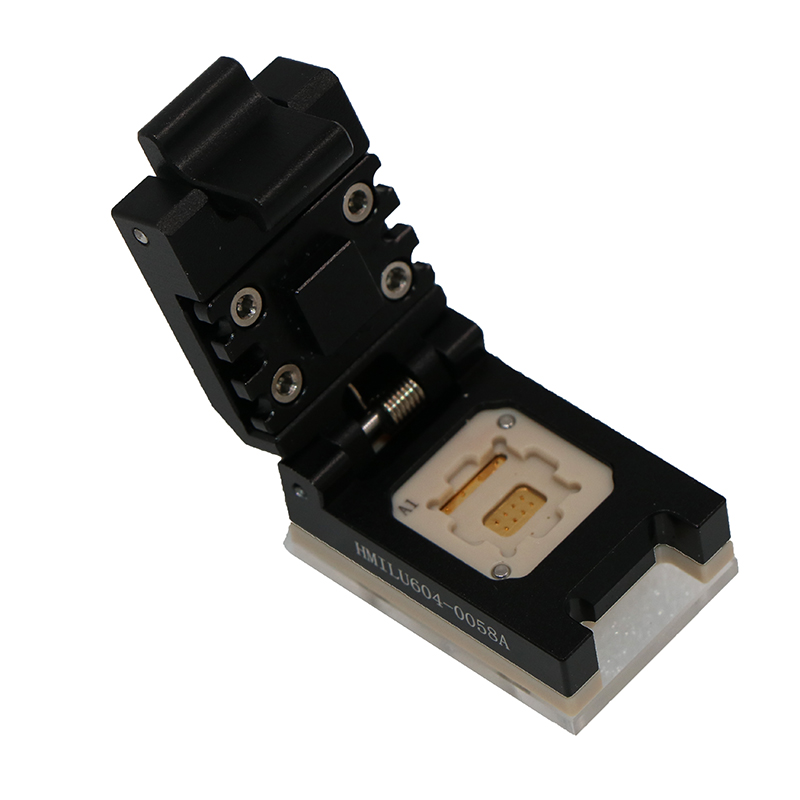

DFN8x8 HEMT socket for 1200V/30A pulse test

DFN8x8 HEMT socket for 1200V/30A pulse test DFN8 package, 0.95 pitch, 8 * 8 size, but the temporary requirement of the customer is functional testing, need to pass the maximum 800V/30A power multi-pulse test; the current design is the flip structure, in order to high current foot can better overcurrent, it is suggested that the copper block be gilded to increase the ability of conducting and diverting flow. In addition, it is suggested that the pressing should be tighter to avoid the electric spark or arc caused by excessive contact impedance
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

DFN8x8 HEMT socket for 1200V/30A pulse test

DFN8 package,

0.95 pitch

IC size:8 * 8mm

Test requirements:1200V/30A pulse test

DFN测试座

DFN封装芯片测试座

DFN老化座

DFN芯片测试座

DFN芯片老化座
