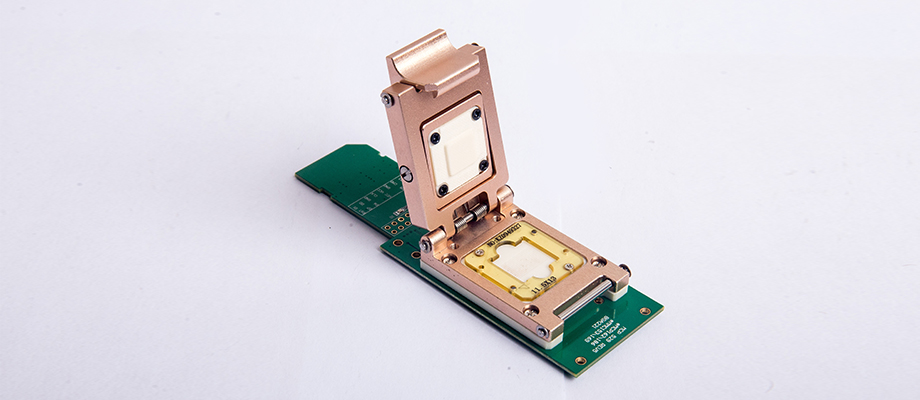

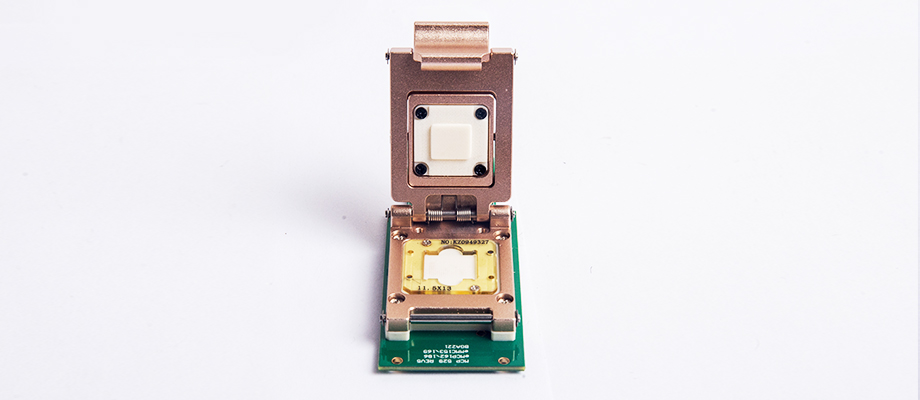

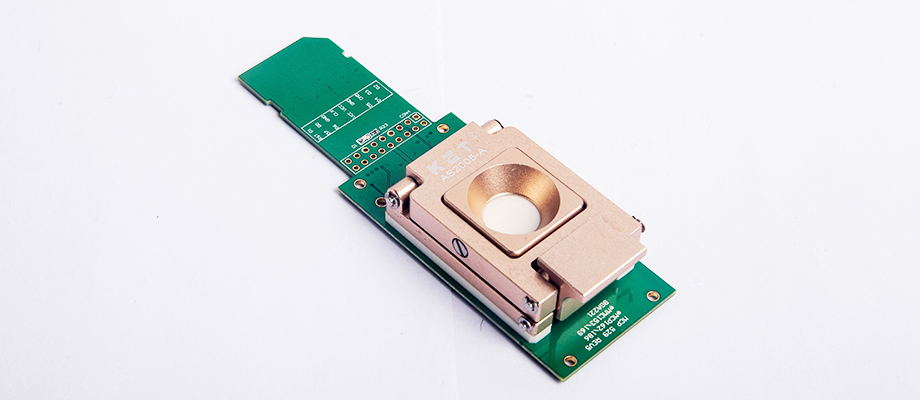

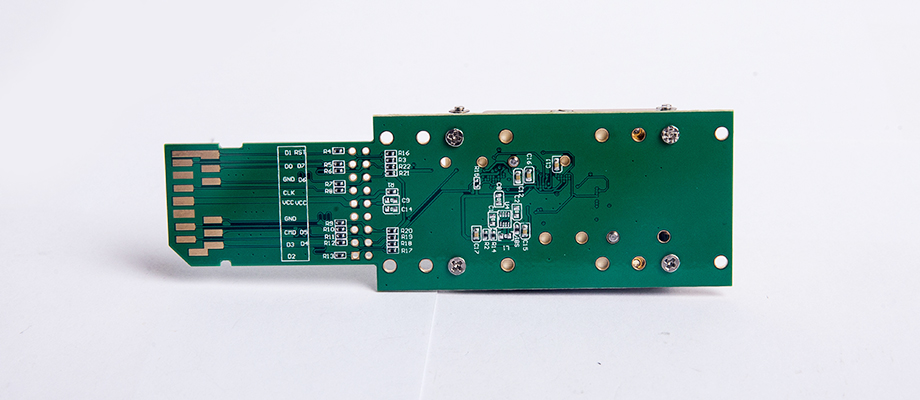

eMMC to SD

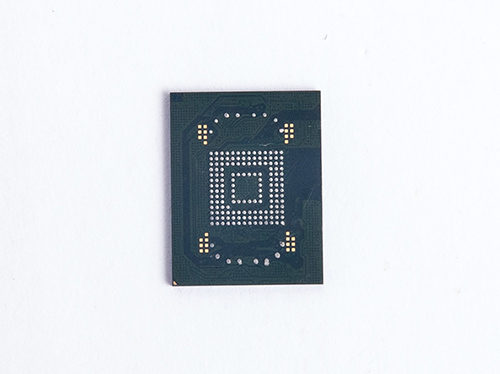

eMMC153/169 data recovery to SD port for Android phone NAND flash check
parameter
| Application IC | eMMC153/169 (eMMC2.x~eMMC4.x) |
| Device Function | data recovery |
| IC size | 9*11mm 10*11mm 11.5*13mm 12*16mm 12*18mm 14*18mm |
| eMMC/eMCP thickness | 0.8mm - 1.5mm |
| Software | Basic section version |
| Interface | SD port |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
Product image
