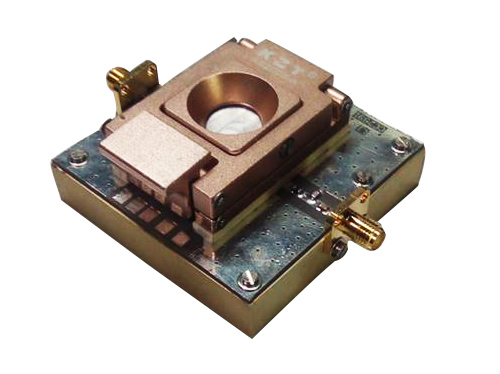

High frequency socket-2.5GHz test socket
parameter
Socket requirements:
| Frequency Range | 0.03 – 2.5GHz |
| P SAT | >40dBm at P IN = 27dBm |
| P1dB | >33dBm |
| PAE | >50% |
| Large Signal Gain | >13dB |
| Small Signal Gain | >19dB |
| Input Return Loss | >10dB |
| Output Return Loss | >12dB |
| Bias | V D = 32V, I DQ = 360mA, V G = -2.6V Typical |
| Wideband Flat Power | |
| Package Dimensions | 5.0 x 5.0 x 1.45 mm |
Socket feature：
| Pin count | 32+9pins(GND bigger pin) |
| Pin pitch | > 0.5mm |
| IC Size | 5*5mm |
| Material | pogo pin |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
