SSD 2 in 1 SM2246EN Test Board BGA152/132/100/88 TSOP48 NAND Fla

Product description: This board adopt SM2246EN controller , 128MB buffer memory , can support BGA152/132/100/88/LGA6...
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

SSD NAND flash test socket for BGA152 132 100 88 LGA60 TSOP48 96 SM2246EN Controller Flash Memory 4 in 1 Multiple PCB board

This board adopt SM2246EN controller , 128MB buffer memory , can support BGA152/132/100/88/LGA60 , TSOP84/96(just for green model) etc mutiple packaging flash memory chip test , test sockets can interchange freely .

a) For testing TSOP48 packaged flash , after plugging in TSOP48 to DIP48 test socket can meanwhile test 4 pieces TSOP48 flash memory chips .

b) Can meanwhile plug in clamshell shrapnel to DIP48 BGA152/132/100/88 LGA60 4CE test socket , can meanwhile plug in four test sockets and four flash chips .

Main Picture:

Clamshel bga152=bga132=bga136=bga88(size14*18,12*18)

ONE SOCKET=4 SOCKET

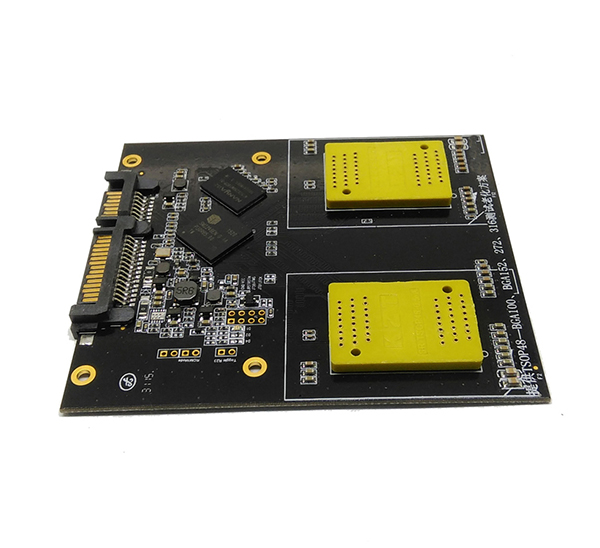

SSD 2 in 1 SM2246EN Test Board

BGA132/152/88/136 open top socket to DIP48((size14*18,12*18)

SSD 2 in 1 SM2246EN Test Board

SSD 2IN1 TO dip48 SSD burn-in test workshop show:

SSD 2 in 1 SM2246EN Test Board 2
