SSD NAND flash SM2256K Controller test solution for BGA152 132 1

Voltage support : 3.3V
DRAM : Yes;
TCG/AES : Yes;
Product description:SM2256K test NAND flash test solution
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

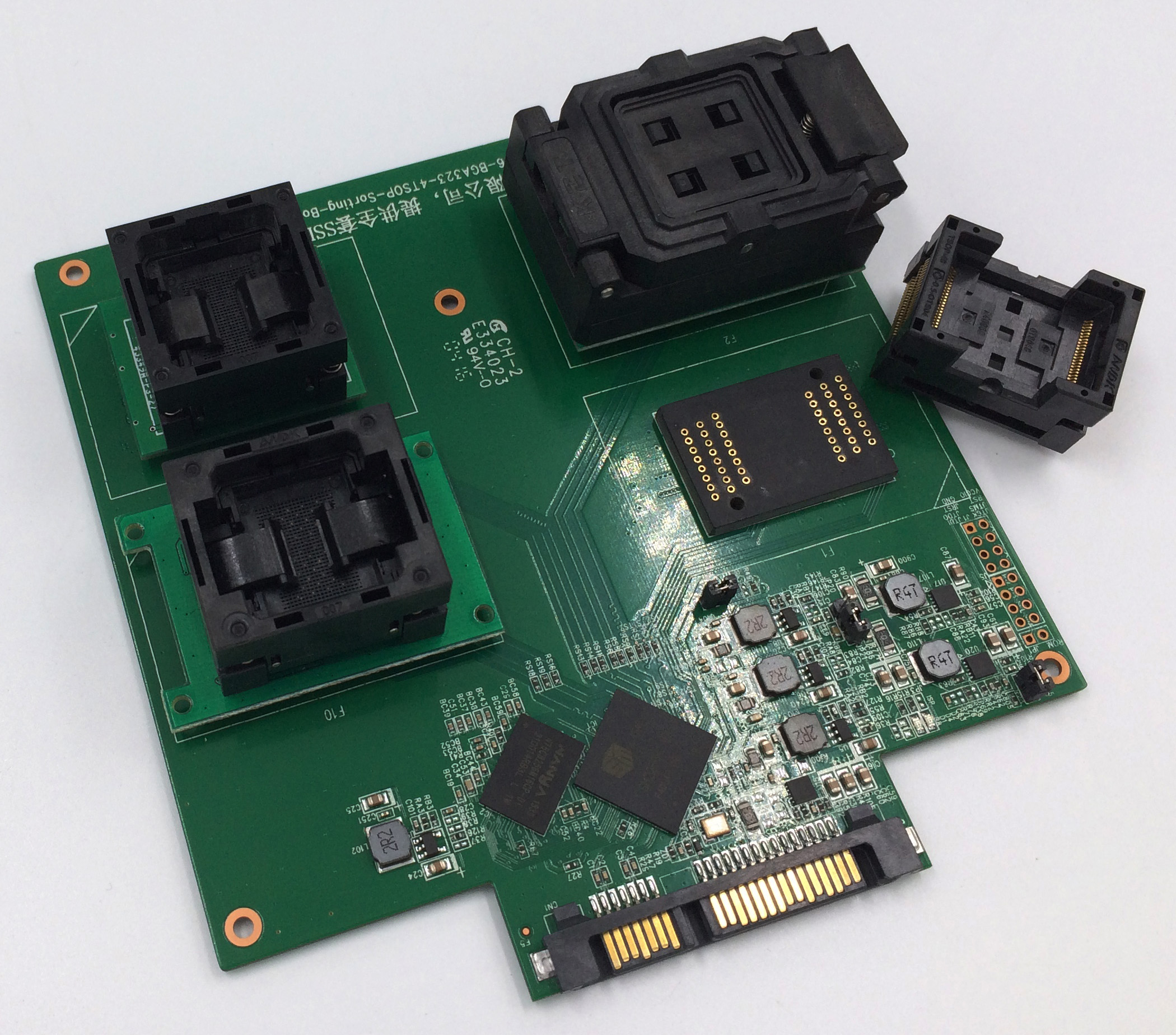

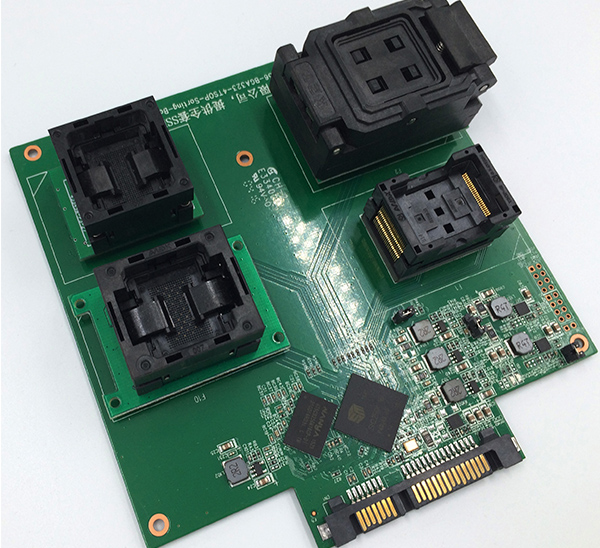

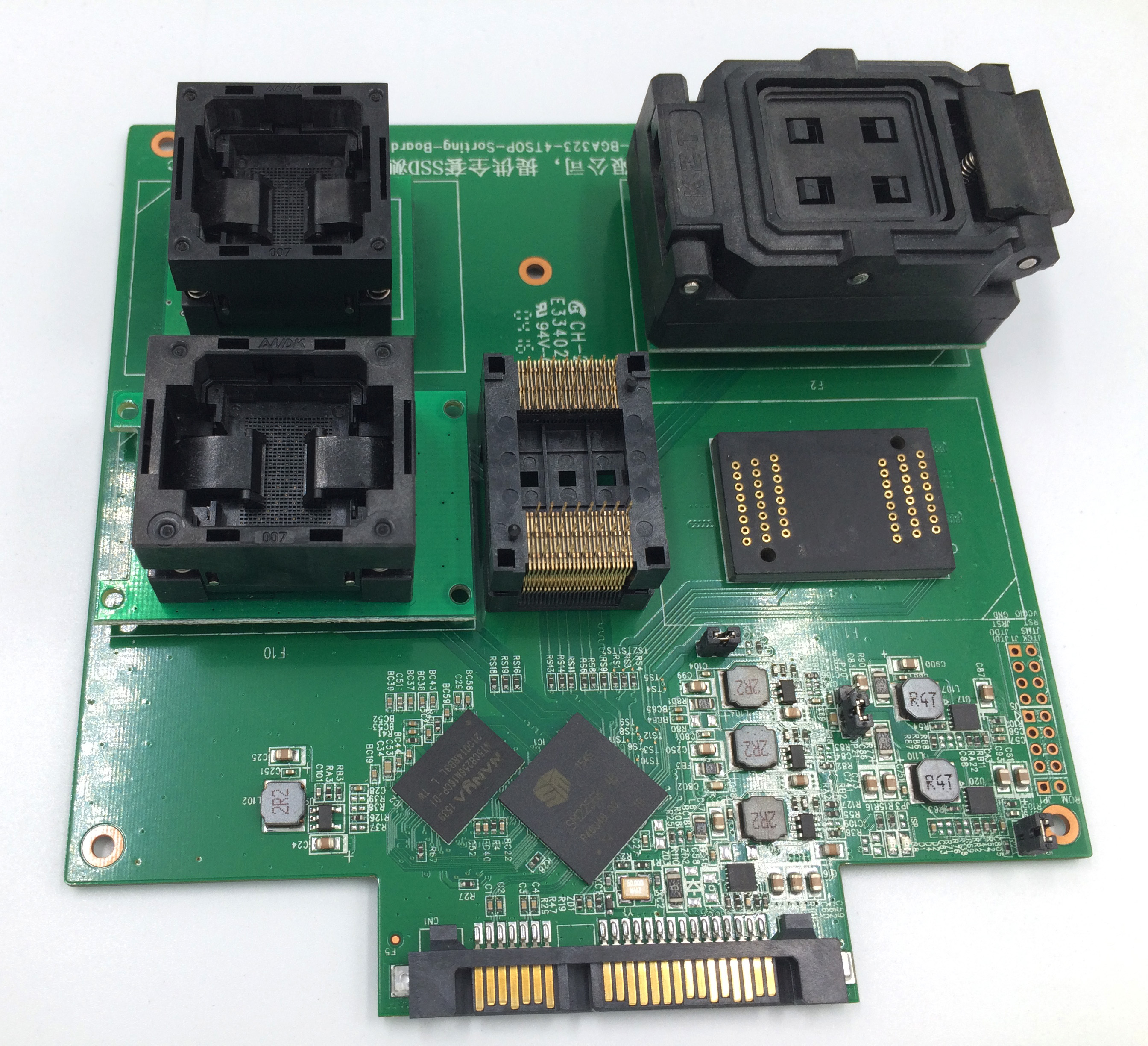

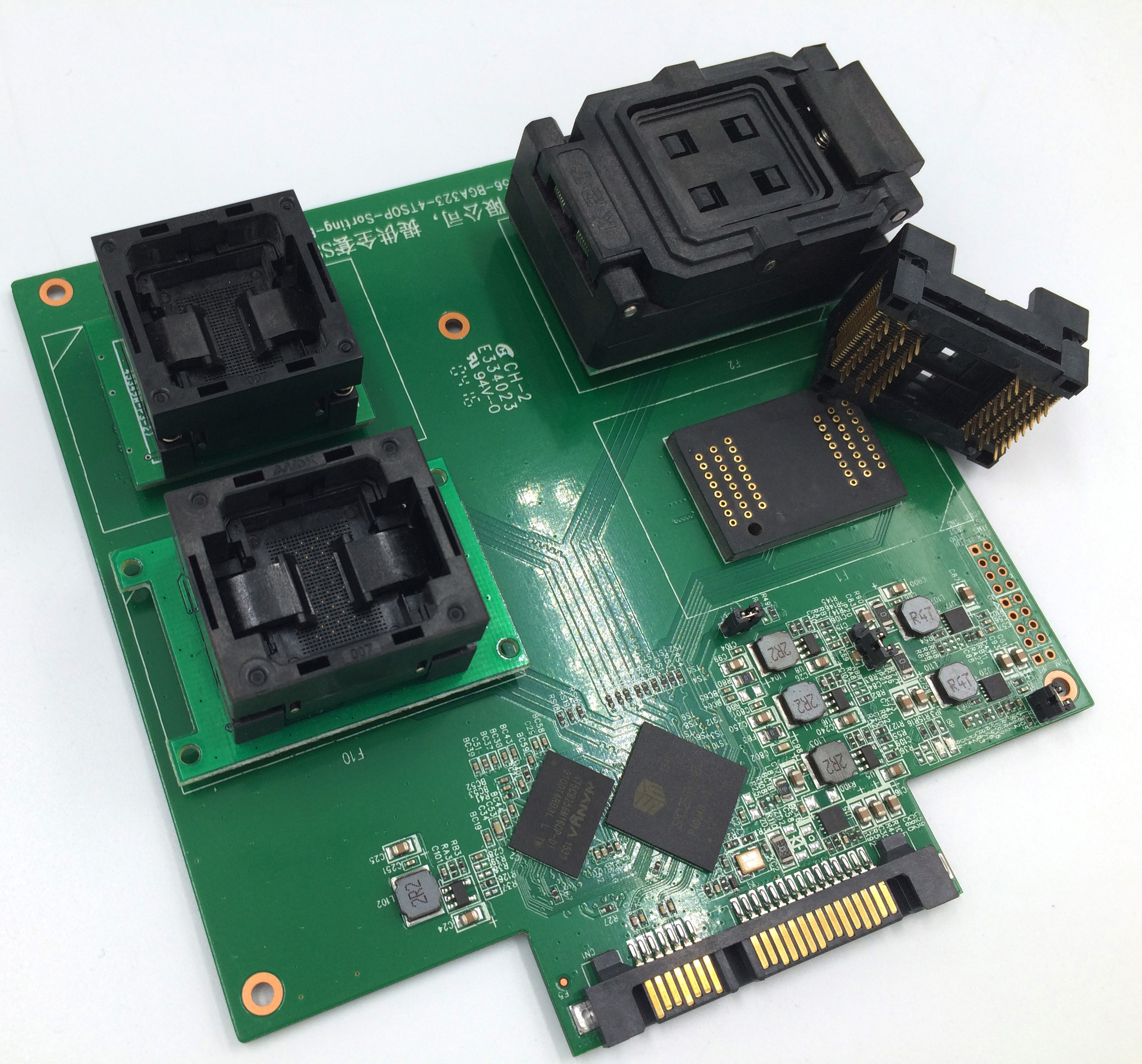

SSD NAND flash SM2256K Controller test solution for BGA152 132 100 88 LGA60 TSOP48 96 Flash Memory 4 in 1 Multiple PCB board

This board adopt SM2256K controller , can support BGA152/132/100/88/LGA60 , TSOP84 with DIP48(4CE test) and DIP96(8CE test) etc. mutiple packaging flash memory chip test , test sockets can interchange freely .

a) For testing TSOP48 packaged flash ,we can test the 4pcs TSOP48 chips at the same time.just need to plug the 4pcs sockets on the SM2256K test board,and company with its test software to check your TSOP48 IC good or not,its capacity,its ID and other information,the software also provide the OPEN card function( MPtool ),and other helpful function.

b) Can meanwhile plug in clamshell spring to DIP48 BGA152/132/88 BGA100 LGA60 4CE test socket or BGA152/132 8CE DIP96 , test the 4pcs ICs and read its good or not,its capacity,its ID and other information,the software also provide the OPEN card function( MPtool ),and other helpful function.

A.silicon motion (SMI SSD) controller Introduction

1.Features

• High performance flash memory controller with 4-CH/8-CH flash interface

• Supports PCIe Gen3 x4 NVMe 1.3 and SATA 6Gb/s

• End-to-end Data Path Protection

• Priority NANDXtend erro-correcting and data protection technology

• DRAM ECC and SRAM ECC

• The latest security protocols, including AES 256, Trusted Computing Group (TCG) and Opal full-drive encryption compliant

• Global wear-leveling to extend product life cycle

• Flexible flash memory configuration

• Enhanced ESD design

• Internal voltage detection circuitry

• Available in commercial and industrial grade

2.Flash Memory

• Support for up to 8-16 flash CE pins per channel

• Support for latest Samsung, Toshiba, SanDisk, Micron, Intel, SK Hynix MLC, TLC and SLC Flash

3.User Benefits

• High performance data transfer rate to/from flash card

• Excellent data integrity and product reliability

• Superior compatibility performance with over 200 popular consumer electronic devices and PCs

4.Applications

SATA and PCIe SSDs for client, enterprise, data center and embedded applications

B.SM2256K SSD TEST solution Introduction

Product name: SM2256K test NAND flash test solution

Host standards : SATA 6Gb/s (revision 3.1);

PCB Interface: for computer connect-SATA port,for NAND flash chip socket-DIP48 receptacle

ECC support : Configurable BCH ECC;

Voltage support : 3.3V

DRAM : Yes;

TCG/AES : Yes;

Applications : SATA and PCIe SSDs NAND flash test(BGA132, BGA152, BGA100, BGA88, TSOP48 package NAND flash Chip 4CE and 8CE BGA152/132/88)

C.Socket introduce:

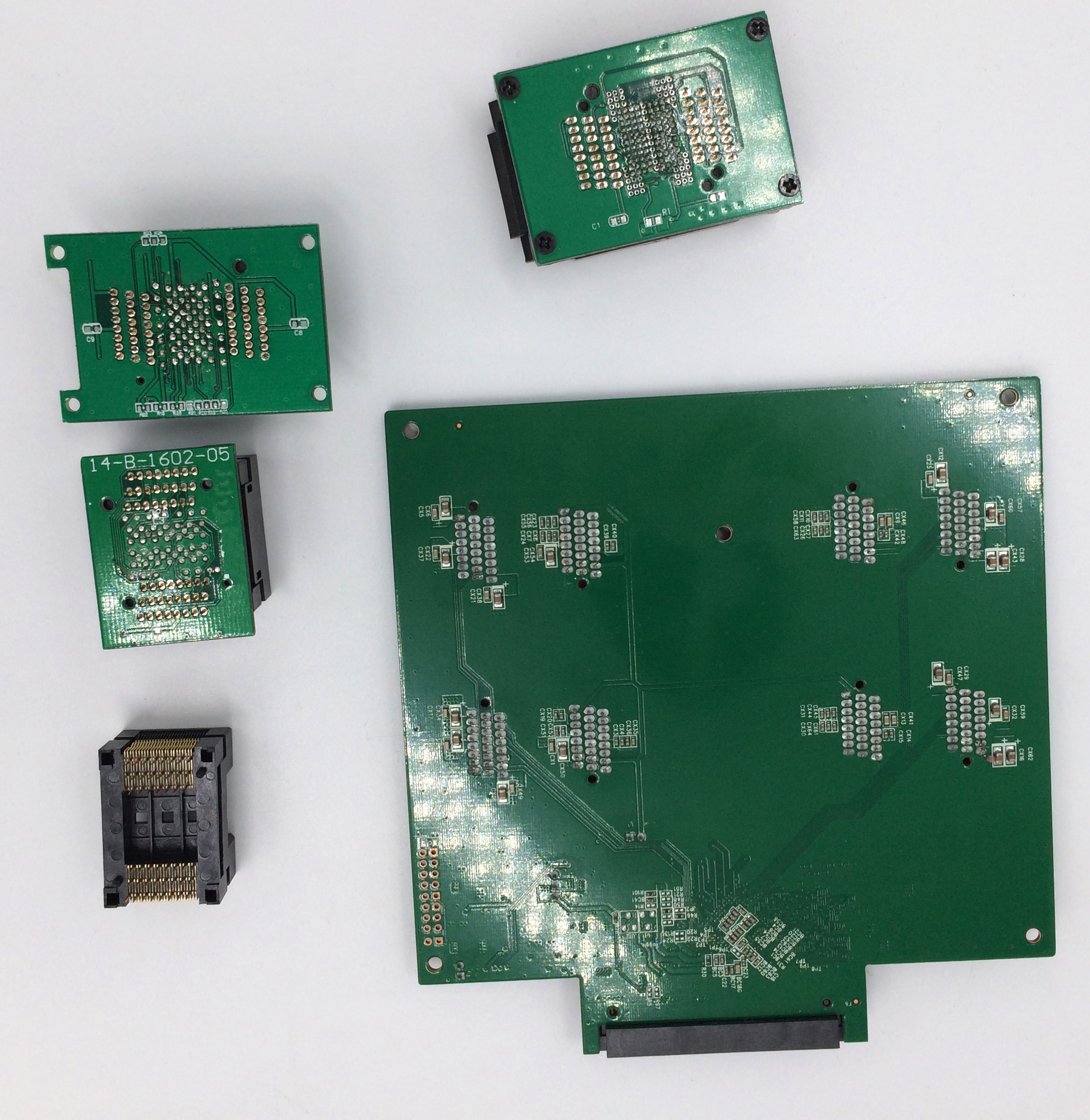

Universal SM2256K controller PCB with DIP48 receptacle device,can support many popular SSD flash chips,such as BGA132, BGA152, BGA100, BGA88, TSOP48.

Good socket design can help you change the size limiter to meet different size Chip.Now BGA series have 12*18mm and 14*18mm
