SSOP24-（28） TSSOP24 IC Test Socket
SSOP24-（28） TSSOP24 IC Test Socket OTS-34-0.65-01 Chip Burn in Socket Adapter Conversion Block Connector
Product features
-
1. Use double contact technology , contact more stable; -
2. The socket shell use special engineering plastic , high strength , long mechanical life ; -
3. The shapnel use import beryllium copper , small impedance , good flexibility ; -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance
-
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)
-
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 20000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max -
3. Specification and Dimension :
a) Type : SOP 24 (34)-0.65
b) Pin pitch : 0.65mm
c) Pin Count : 24
d) Applicable IC body width : 5.3-5.7mm
Specification and Dimension
| Type | SOP 24 (28)-0.65 |
| Pin pitch | 0.65mm |
| Pin Count | 24 |
| Product description | SSOP24 TSSOP24 OTS-34-0.65-01 Chip IC Test Socket Burn in Socket |

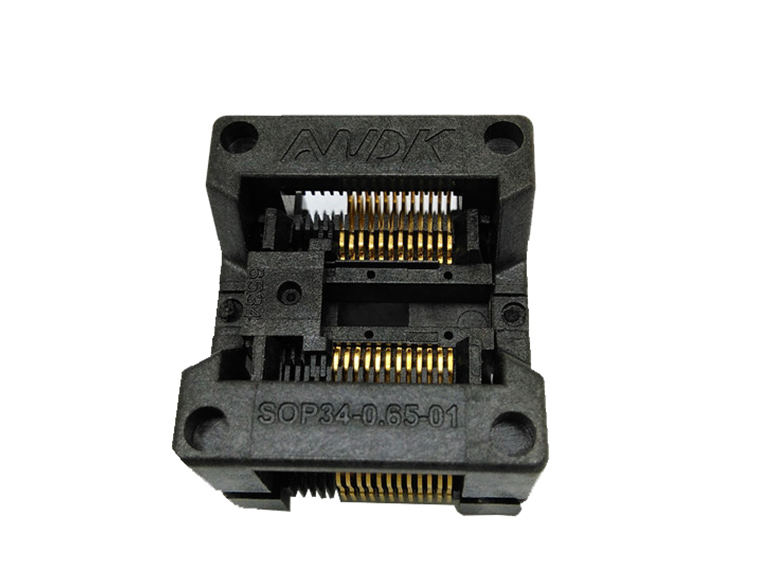

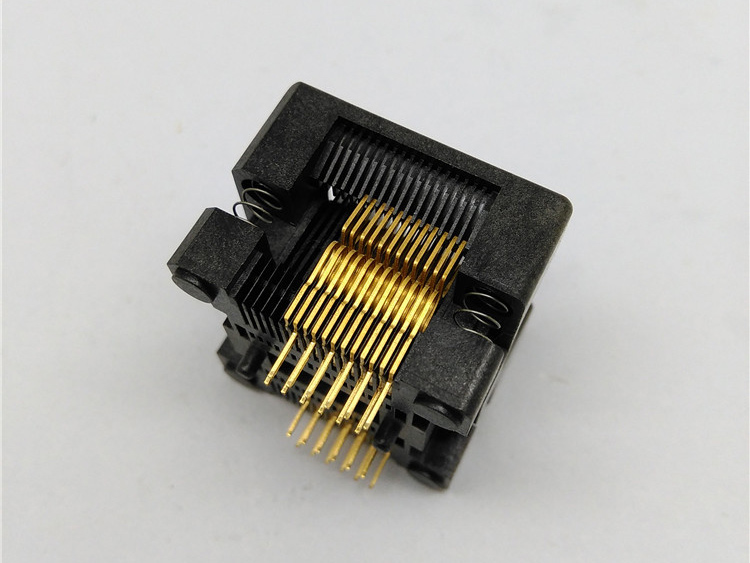

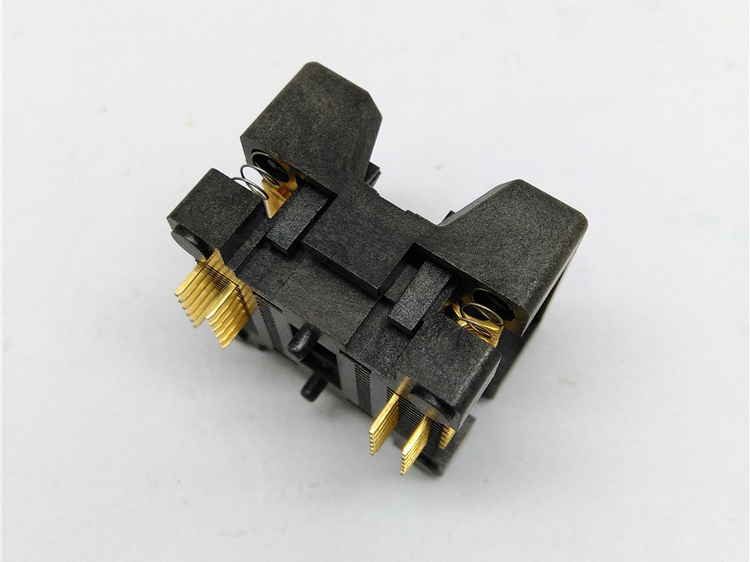

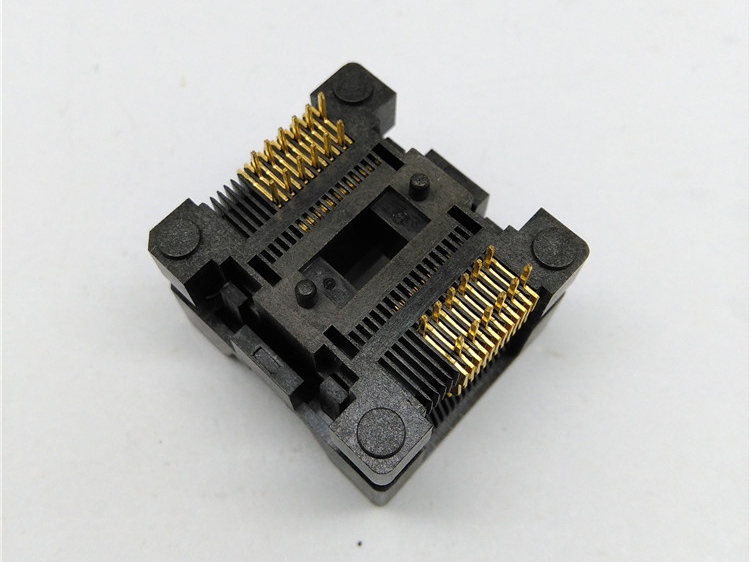

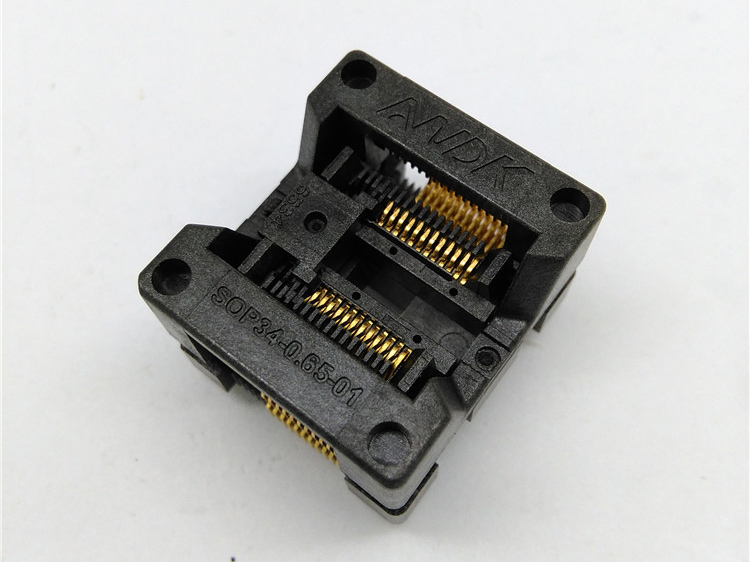

Product image
