TSOP54-0.8 IC Test Socket Chip Size 18x22mm
TSOP54-0.8 IC Test Socket Chip Size 18x22mm Burn in Socket Programming Socket Adapter Conversion Block
Product Feature :
-
1. Use double contact technology , contact more stable , -
2.The socket shell use special engineering plastic , high strength , long mechanical life , -
3.The shapnel use import beryllium copper , small impedance , good flexibility , -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Material : -
Insulator , PEI , PPS -
Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50) -
2. Electrical Specification : -
Insulation resistance : 1000m Min,At DC 500V -
Voltage resistance : voltage resistance -
Contact resistance : exceed 25m -
Mechanical life : 100000Times -
PIN feet stretch : 55g/PIN(Normal) -
Operating temperature : Minus 65 degree to 55 degress -
Operating force : exceed 0.9kg Max
Product Specification and Dimension :
| Type | TSOP 54-0.8 |
| Pin Pitch | 0.8 mm |
| Pin Count | 54 |
| Applicable Chip Dimension | 18*22 mm |

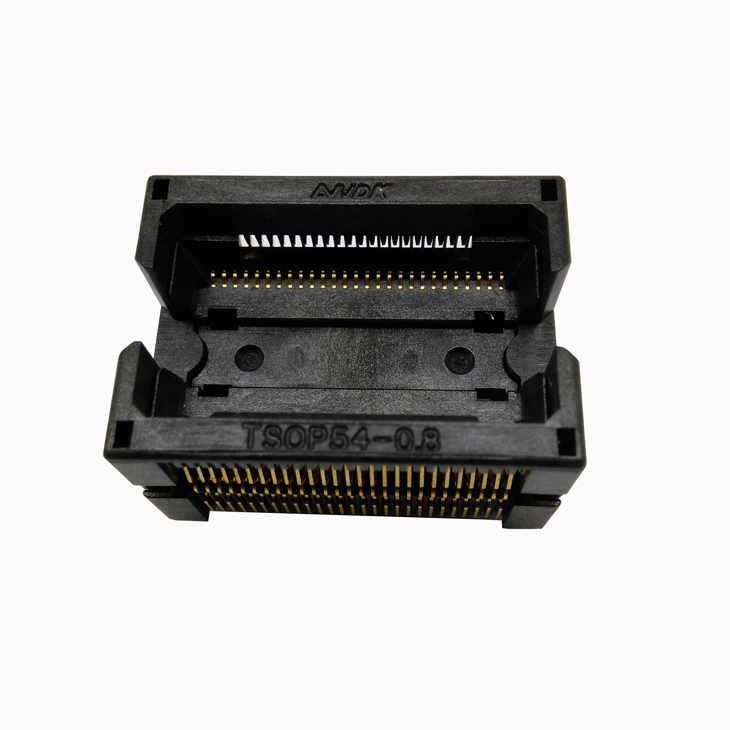

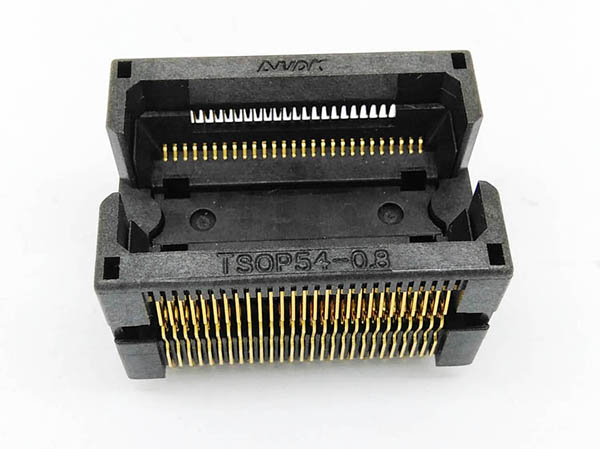

Product image
