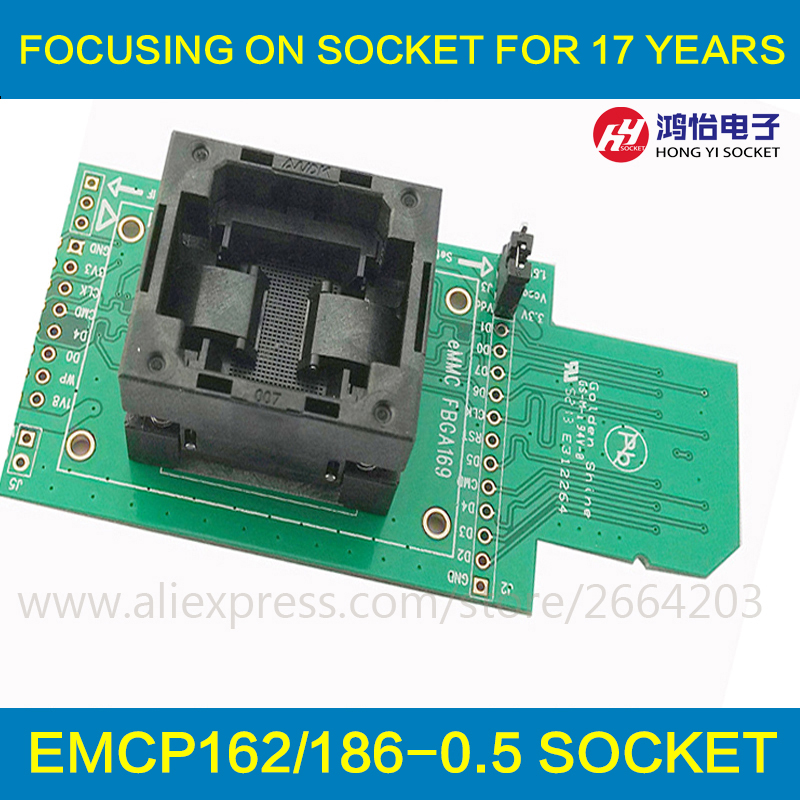

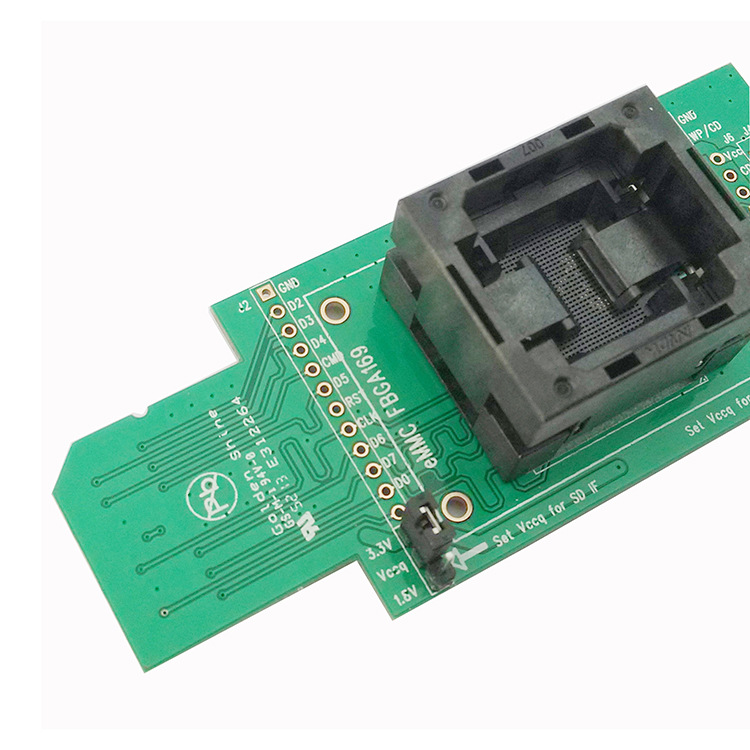

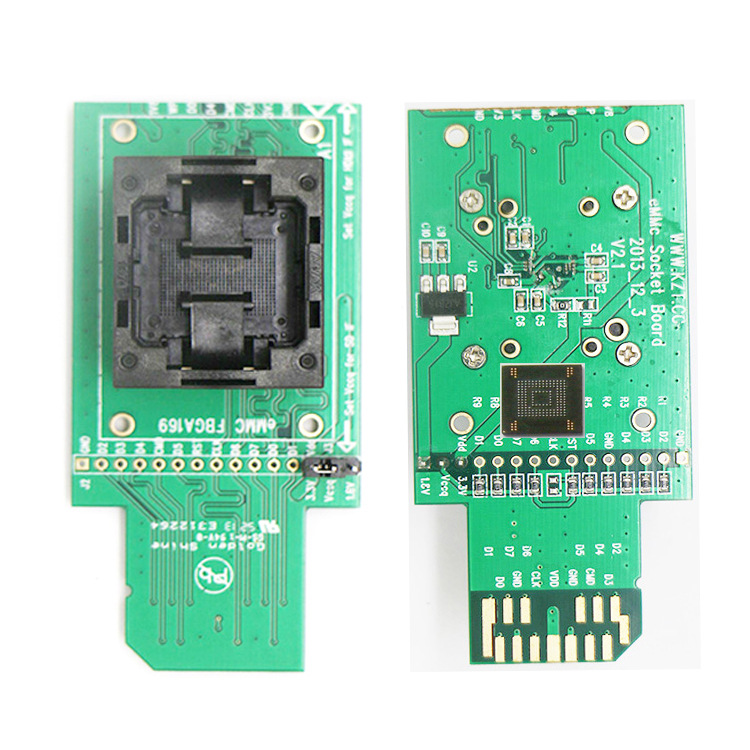

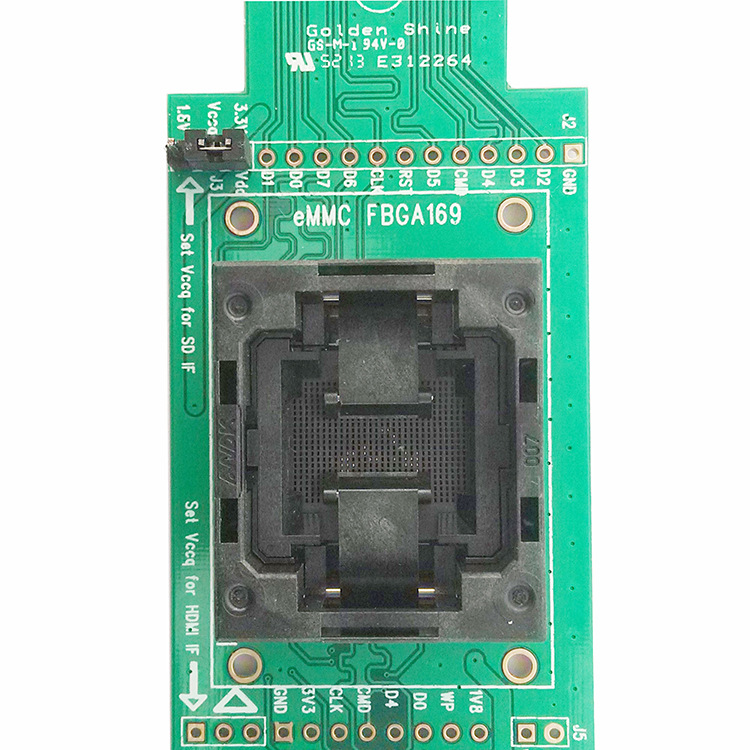

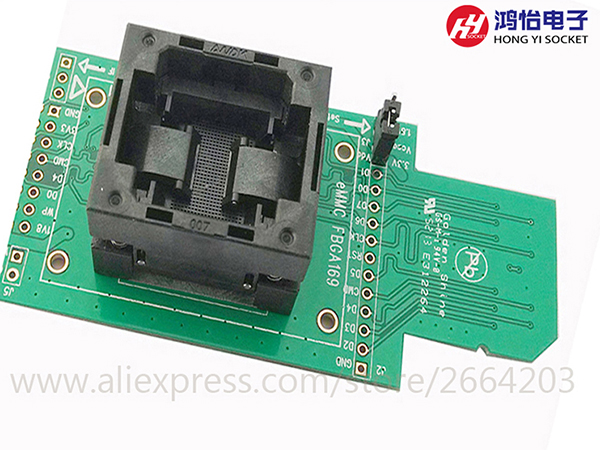

eMCP162 186 socket adapter connector smart digital device GPS device flash memory data recovery burn

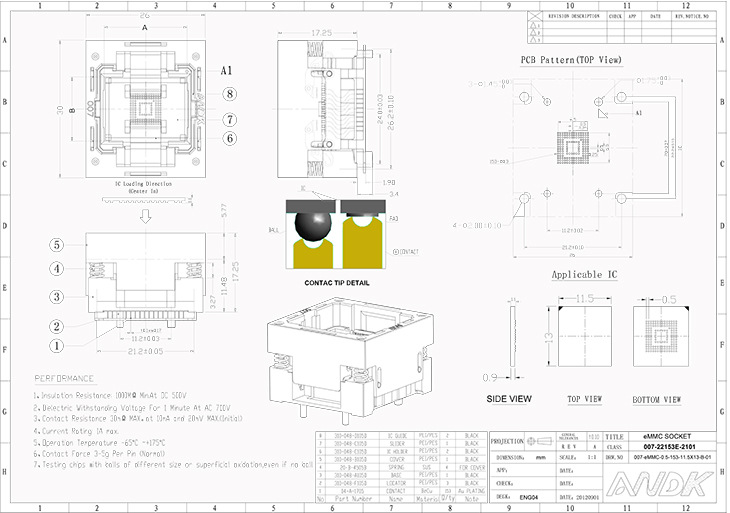

Hotline：+8618824309157 Email：sales@andksocket.com Drawing：Download

1. Socket compatible with the ball without the ball test, IC bounding box can be replaced, as compared to similar products with long life, wide versatility;
2. Also compatible with: Toshiba, Samsung, Hynix, Intel, Sandisk (SanDisk) and other packages of 4BIT, 8BIT eMMC flash memory
3. Also compatible with 162-FBGA 186-FBGA;
4. Beryllium copper shrapnel imported high-precision molds by stamping, head-shaped imitation probe design, late and hard, thick gold plating process to ensure product stability and durability;
5. The contact module of the overall structure, reduce duplication locate problems and ensure their points of contact with the IC PAD precise alignment, the first test pass rate;
6. Welded structure to ensure good contact, test stability;
7. Using the structure under the pressure, more user-friendly manual of tests, convenient and simple to operate;

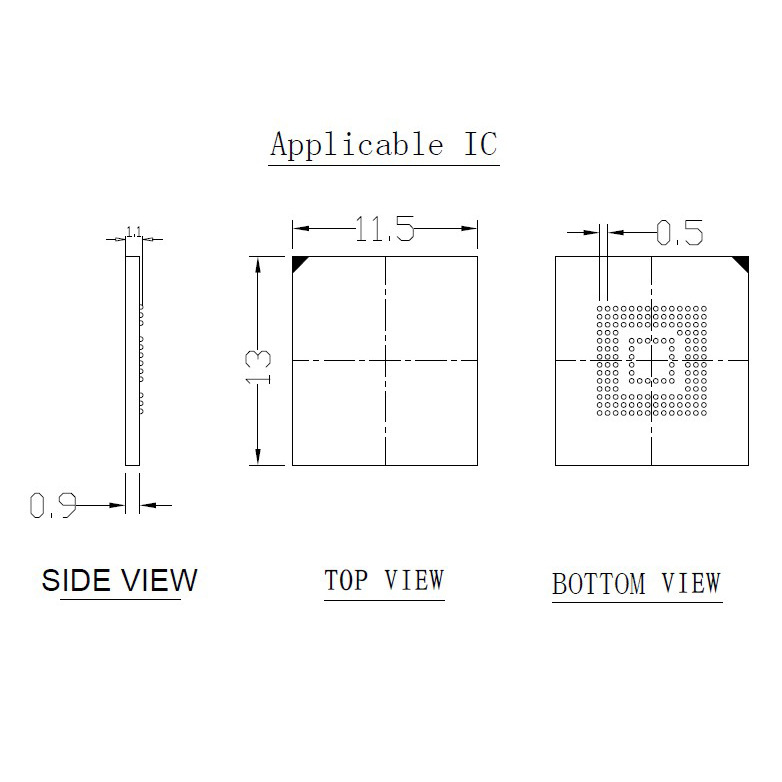

8. Compression IC plus spring integrally molded using a mold adaptive structure, to ensure that different thicknesses IC does not require any adjustment to its good contacts, the IC test universal wide (thickness 0.6-2.0MM range can be tested)；
9. Structure using injection molding, precision positioning, pick and place convenient IC, work more efficiently;

1.Parallel to the direction of the press into the IC SOCKET.
2.Inserted into a socket on the SD card reader connected to the computer and then select the appropriate test program.

In the use of this product can not be found during tests or test performance is unstable, it is recommended to use the following solutions:
1.With an air gun or anti-static brush to remove impurities inside SOCKET seat to good contact;
2.With anhydrous alcohol to clean SOCKET, the impurities adhered to the top of shrapnel clean so good contact;
3.Ss found inside SOCKET shrapnel burned or broken, please purchase the appropriate SOCKET replaced;
4.Plug the USB interface can not be detected, check the power switch is turned on or the computer USB connection is normal;
5.Do not use water that day, washer water and other organic solvents soaking, washing, to avoid damage to the internal structure SOCKET;
6.When not in use for a long time, use anti-static bag sealed to prevent dust falling, the impact of product testing performance.

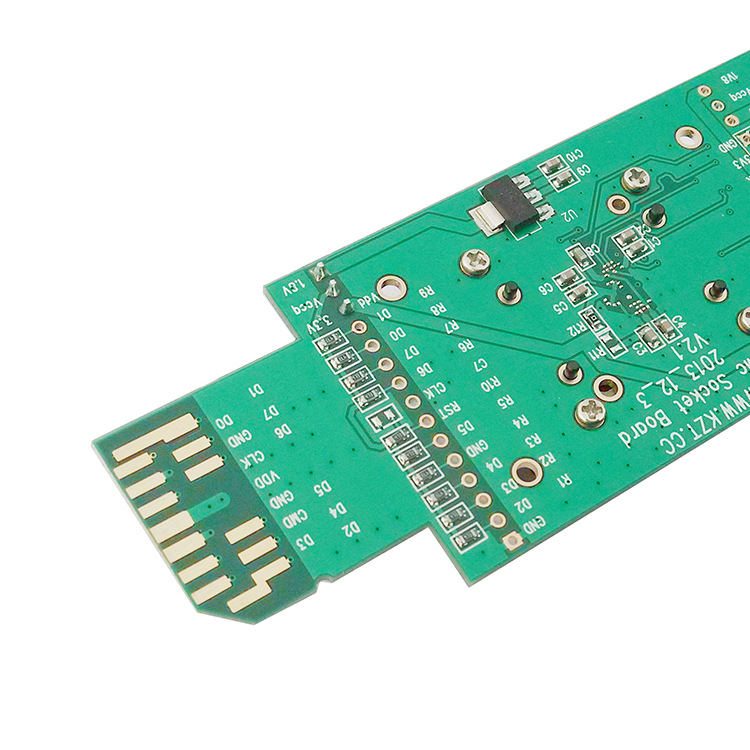

Interface Type	SD
Applicable	EMCP/BGA162 186
Applicaiton	Programming/Test/data recovery/burn-in
Product description	eMCP162 186 socket adapter connector smart digital device GPS device flash memory data recovery burn
