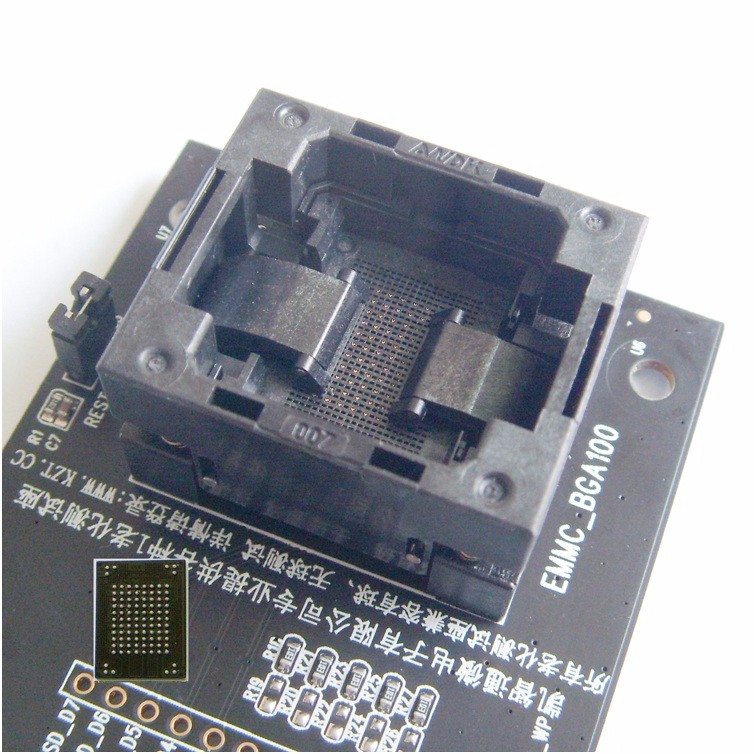

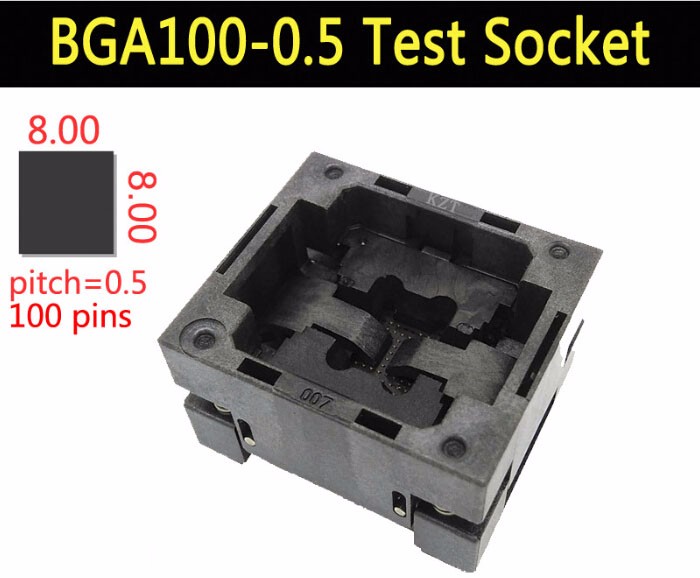

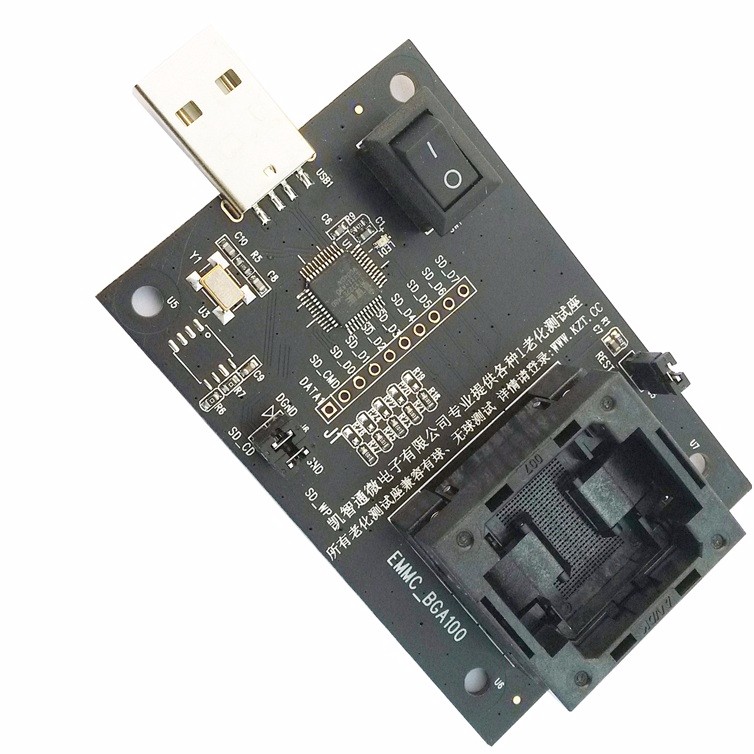

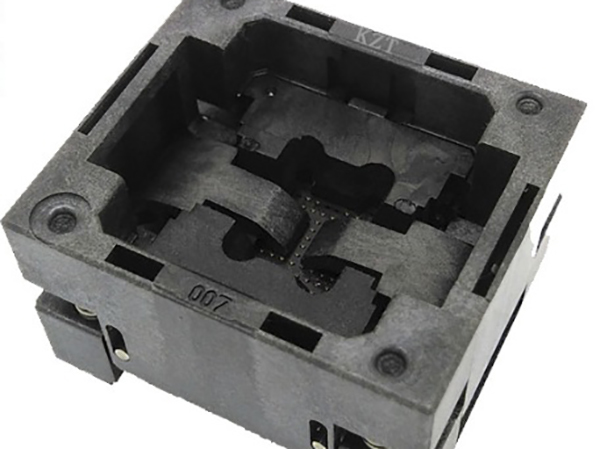

EMMC100 BGA100 socket OPEN-TOP
This BGA100-0.5 socket is used to test BGA100 chip or make burn-in test. Product Use: Programmin.
Product Features
-
Product Use: Programming Block, Test Block, for IC chip for programming, testing Applicable Package: BGA100 pin pitch 0.5mm -
Feature: Leads to the bottom pin -
Our products: Socket for QFN,QFP,SOP,SSOP,TSOP,MSOP,BGA,eMMC,eMCP,etc.
Product Specification
| Pin Count | 100 |
| Pitch | 0.5mm |
| Adapter of IC Dimensions | 8*8mm |
| Unit | mm |
| Model | BGA100-0.5 |
| Pitch | 0.5mm |
| No.of Pin | 100 |
| Adapter of IC Dimensions | 8*8 |
| Use way | Top-open pressure socket |
| GND pin | Yes |
Product image
