ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure Burn in Socket IC Test Socket Flash Test Socket Adapter tnm5000 programmer
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Feature :


  • 1. Use double contact technology , contact more stable ,

  • 2. The socket shell use special engineering plastic , high strength , long mechanical life ,

  • 3. The shapnel use import beryllium copper , small impedance , good flexibility ,

  • 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

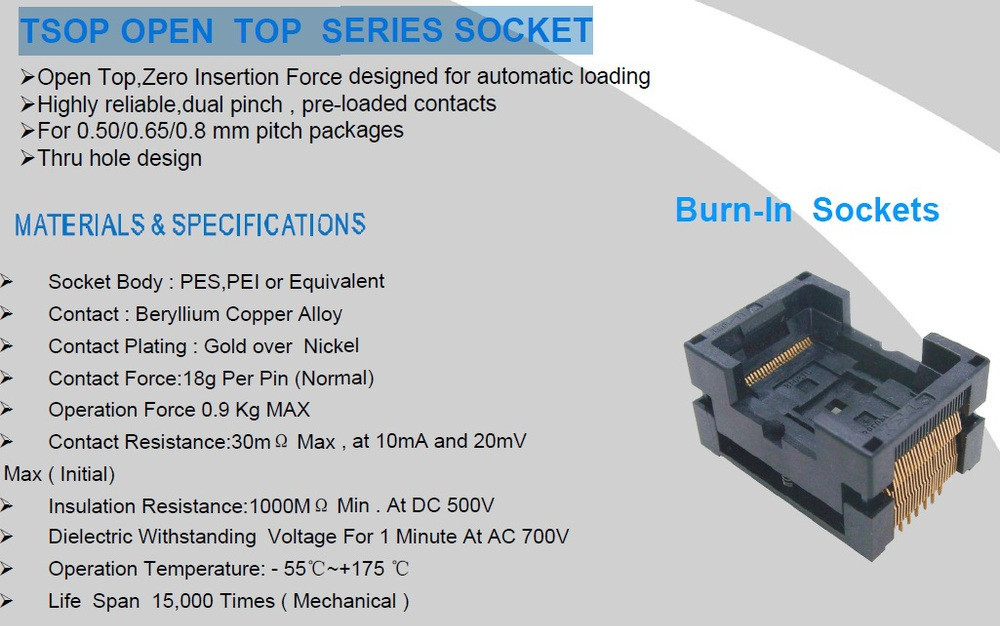

Product performance :


  • 1. Material :
    a) Insulator , PEI , PPS
    b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

  • 2. Electrical Specification :
    a) Insulation resistance : 1000m Min,At DC 500V
    b) Voltage resistance : voltage resistance
    c) Contact resistance : exceed 25m
    d) PIN feet stretch : 55g/PIN(Normal)
    e) Mechanical life : 100000Times
    f) Operating temperature : Minus 65 degree to 55 degress
    g) Operating force : exceed 0.9kg Max

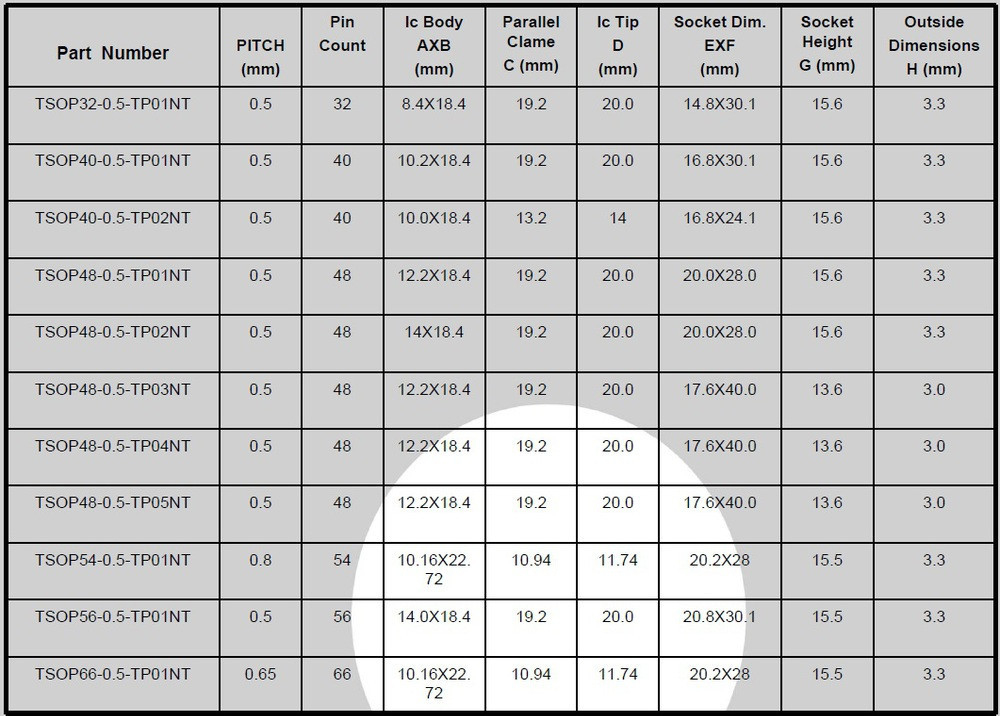

  • 3. Specification :
    a) Type : TSOP 48-0.5
    b) Pin pitch : 0.5 mm
    c) Pin Count : 48

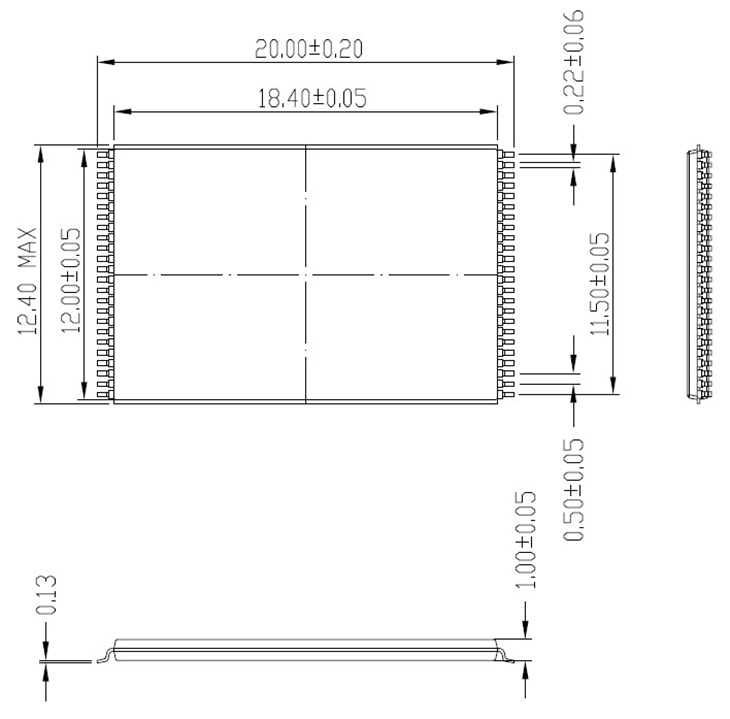

    d) Chip Dimension : 12*20 mm (Including pin length)

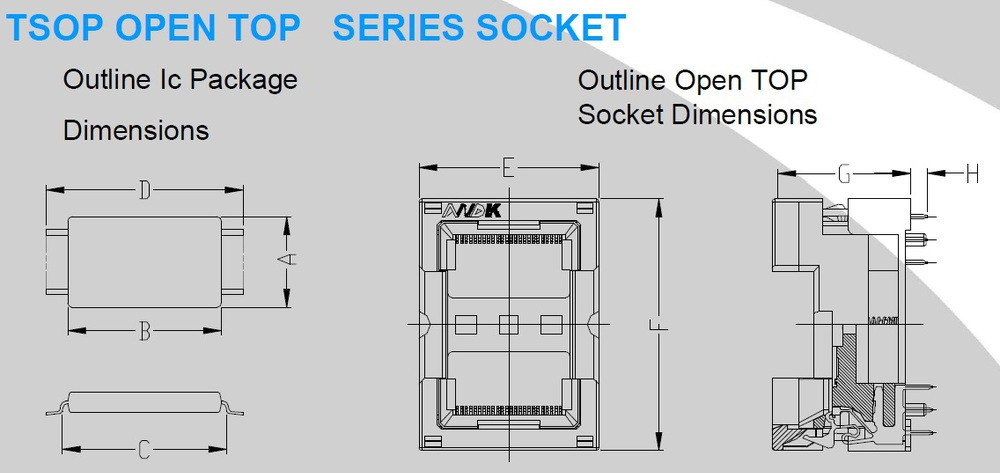

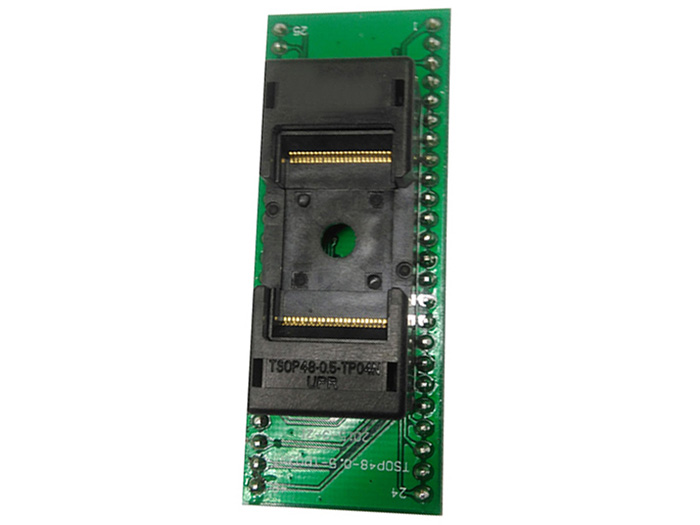

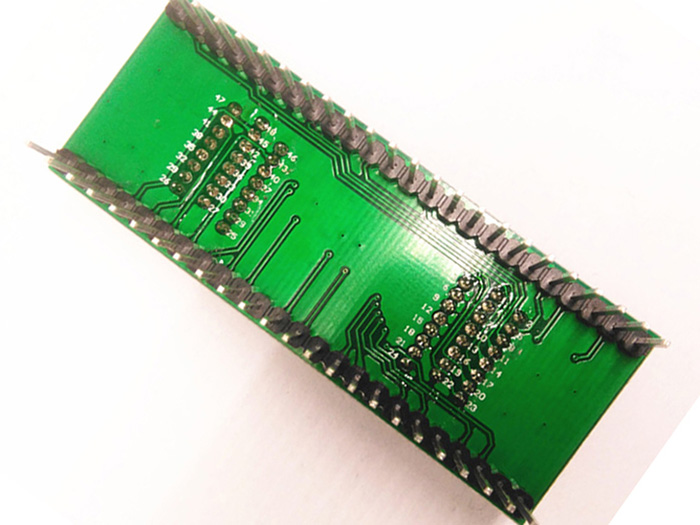

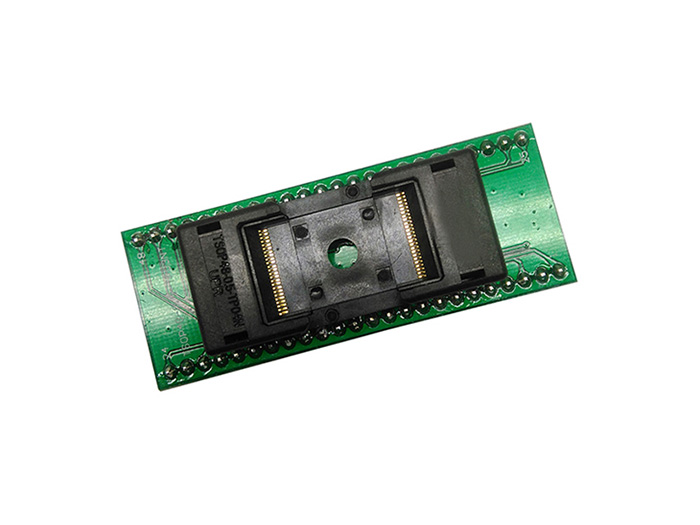

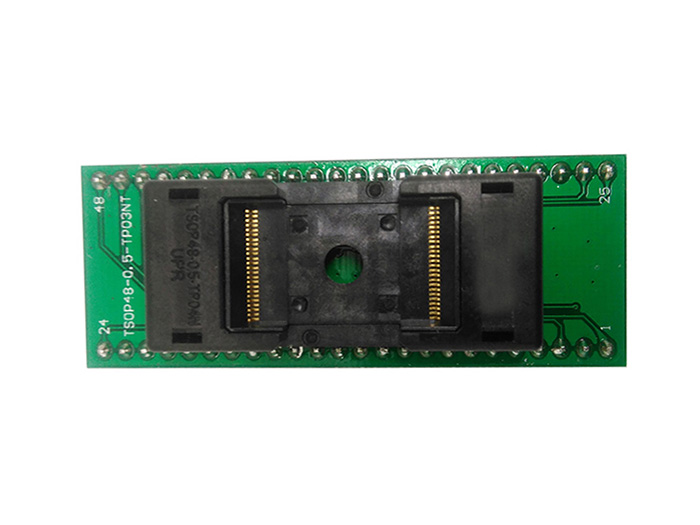

Product image

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure

ANDK High Quality Long TSOP48-0.5 Open Top Structure
