ANDK Standard TSOP48-0.5 Open Top Programming Socket
ANDK Standard TSOP48-0.5 Open Top Programming Socket IC354-0482-031/035 IC Test Socket Flash Programmer Adapter
Product Feature :
-
1. Use double contact technology , contact more stable , -
2. The socket shell use special engineering plastic , high strength , long mechanical life , -
3. The shapnel use import beryllium copper , small impedance , good flexibility , -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)
-
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 100000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max
-
3. Specification :
a) Type : TSOP 48-0.5
b) Pin pitch : 0.5 mm
c) Pin Count : 48
d) Chip Dimension : 12*20 mm (Including pin length)
Specification and Dimension
| Type | TSOP 48 Programming Socket |
| Pin: | 48 |
| Pin Pitch: | 0.5mm |
| Chip Dimension: | 12*20 mm (Including pin length) |
| Product description: |
1. Use double contact technology , contact more stable , 2. The socket shell use special engineering plastic , high strength , long mechanical life , 3. The shapnel use import beryllium copper , small impedance , good flexibility , 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability . |

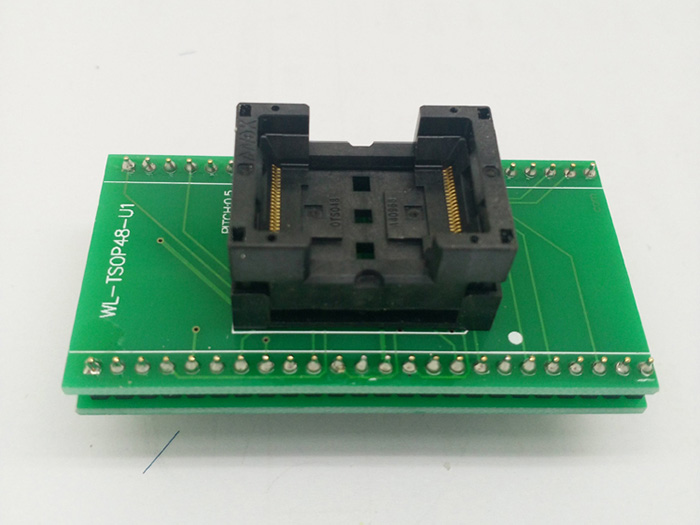

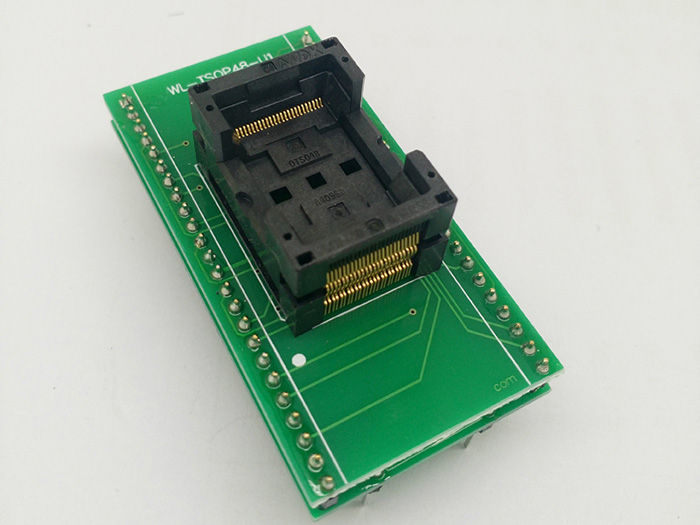

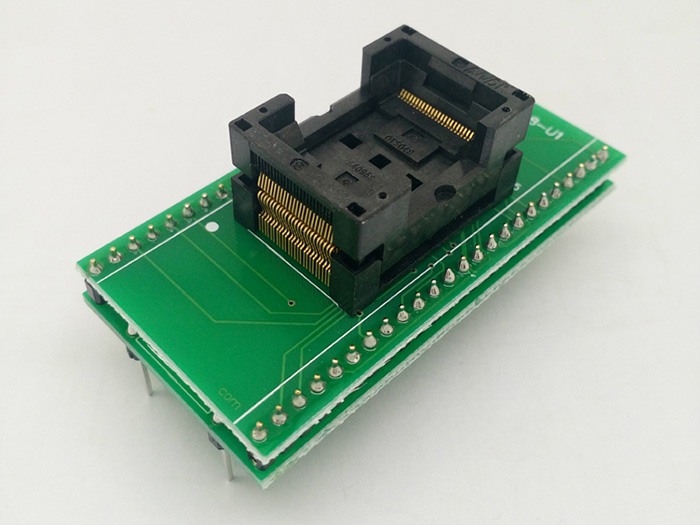

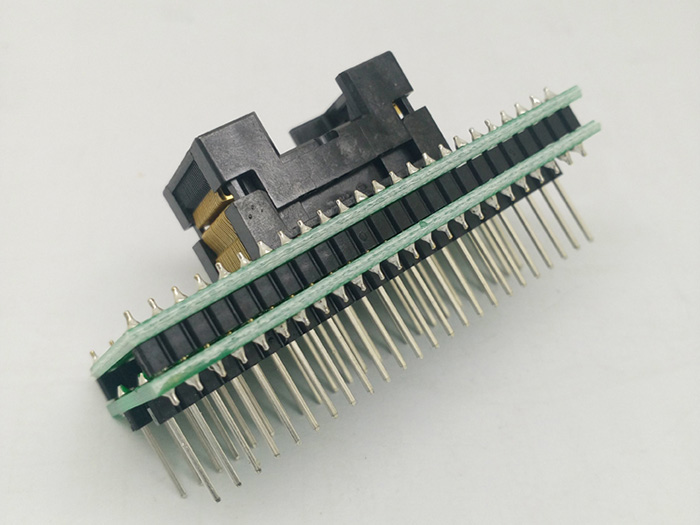

Product image
