BGA100-1.0 Burn in/programmer socket

BGA100-1.0 OPEN TOP Burn in socket pin pitch 1.0mm IC size 14*18mm 12*18mm BGA100-1.0 BGA100 VFBGA100 burn in socket
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Material & Performance:


  • 1. socket Body: PEI

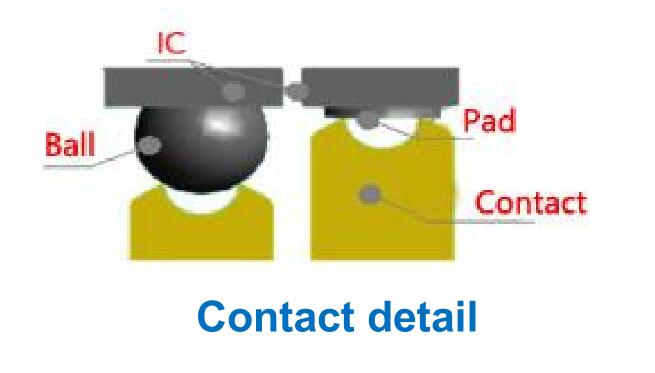

  • 2.Contacts:Beryllium Copper Alloy

  • 3.Contact Plating:Gold over Nickel

  • 4. Operation Force:2.0KG min, the more PINs the greater force.

  • 5.Contact Resistance:50mΩ max

  • 6. Dielectric:700V AC for 1 minute

  • 7. Insulation Resistance:1,000MΩ 700V DC

  • 8. Max Current Capacity : 1A

  • 9. Temperature Rating:-55℃~+175 ℃

  • 10. Life Span 25,000 Times (Mechanical)

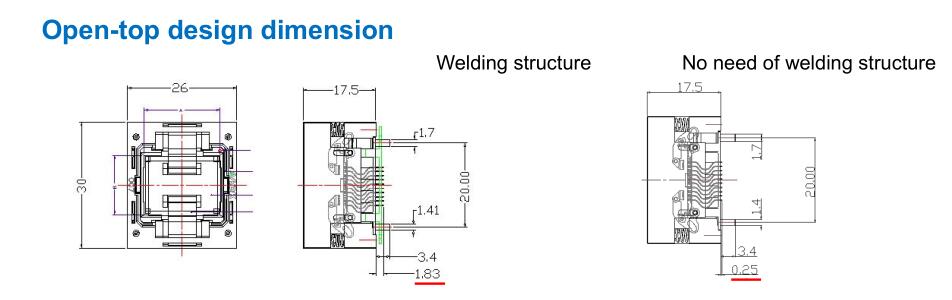

Product Specification and Dimension :

Type BGA 100-1.0 Burn in/programmer socket
Pin Pitch 1.0mm
Pin Count 80 pins
Applicable IC body size 14*18mm 12*18mm
Life Span 25,000times
Part number BGA100(14*18mm 12*18mm)-1.0 socket
IC Package BGA 100 , VFBGA 100
Structure OPEN-TOP

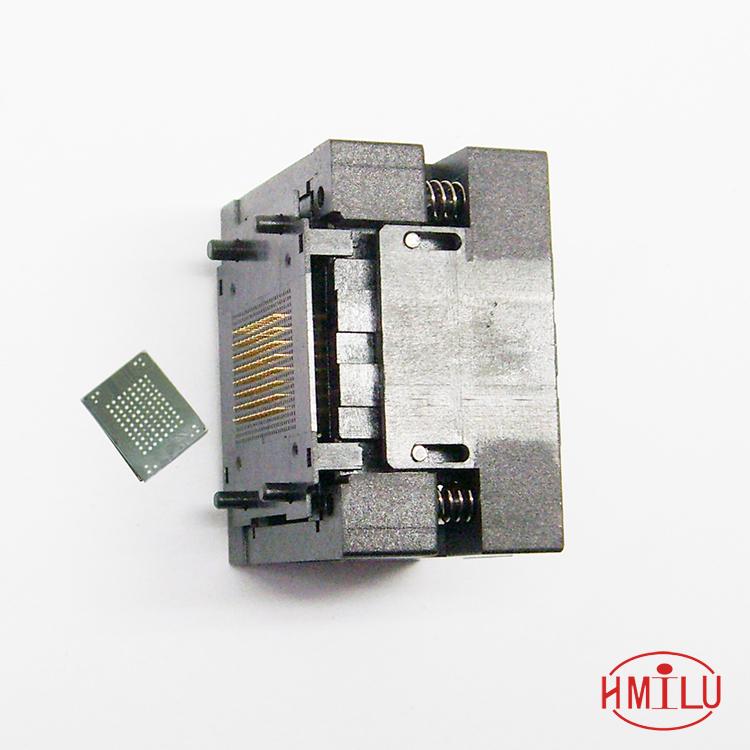

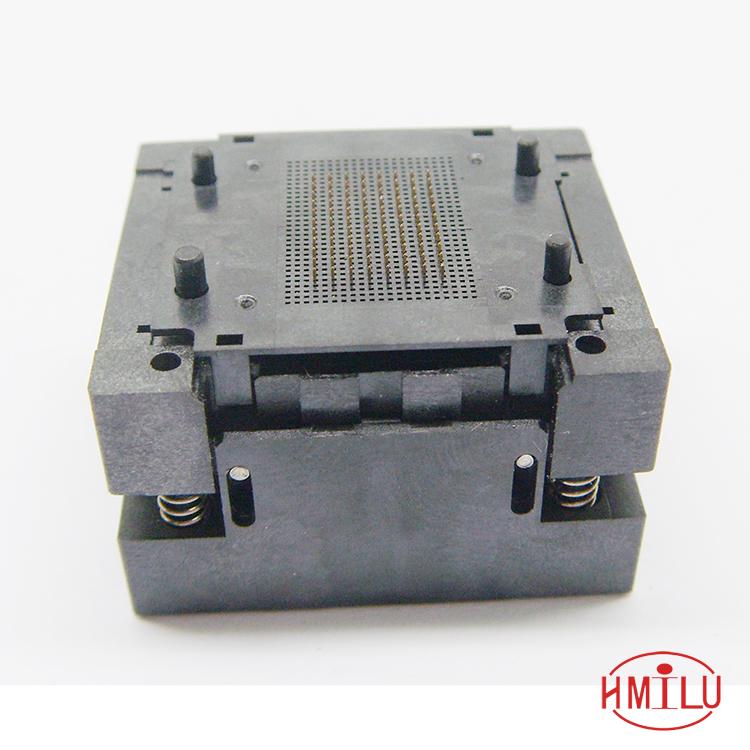

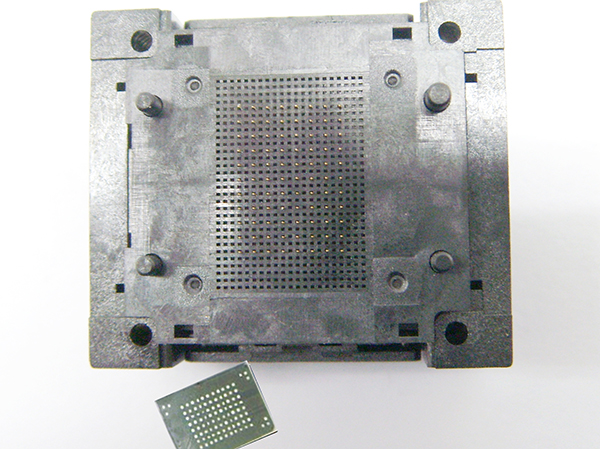

Product image

BGA100-1.0 Burn in/programmer socket

BGA100-1.0 Burn in/programmer socket

BGA100-1.0 Burn in/programmer socket

BGA100-1.0 Burn in/programmer socket

BGA100-1.0 Burn in/programmer socket
