BGA24-1.0 Clamshell Burn in socket
BGA24-1.0 Clamshell Burn in socket pin pitch 1.0mm IC size 6*8mm Pin Grid 5*5 4*6 BGA24(6*8)-1.0 BGA24 VFBGA24 burn in socket
Product Feature :
-
1.Welding structure : Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and effort , and once the socket is welded , it can’t be recycle ; -
2.No need of welding structure : Adopt innovative screws locking type to fix the sockets and PCBA board , ensure contact is stable , meantime shorten the assembly time , time-saving and reduce effort , and socket can be removed from the PCBA board , recycle and reduce test cost ;
Specification and Dimension
| Part number: | BGA24(6*8)-1.0 socket |
| IC Package: | BGA 24, VFBGA 24 |
| Pin Pitch: | 1.0mm |
| Pin Count: | 24 pins |
| IC Size: | 6*8mm |
| Pin Grid: | 5*5mm;4*6mm |
| Structure: | Clamshell |
| socket Body: | PEI |
| Contacts: | Beryllium Copper Alloy |
| Contact Plating: | Gold over Nickel |
| Operation Force: | 2.0KG min, the more PINs the greater force. |
| Contact Resistance: | 50mΩ max |
| Dielectric: | 700V AC for 1 minute |
| Insulation Resistance: | 1,000MΩ 700V DC |
| Max Current Capacity : | 1A |
| Temperature Rating: | -55℃~+175 ℃ |
| Life Span 25,000 Times (Mechanical) |
Tips:Welcome to visit our KZT-Store,If you have any questions,please leave message to us. If you want to buy more quantites about this one.please connect with me and ask me to get the better price. Thanks.

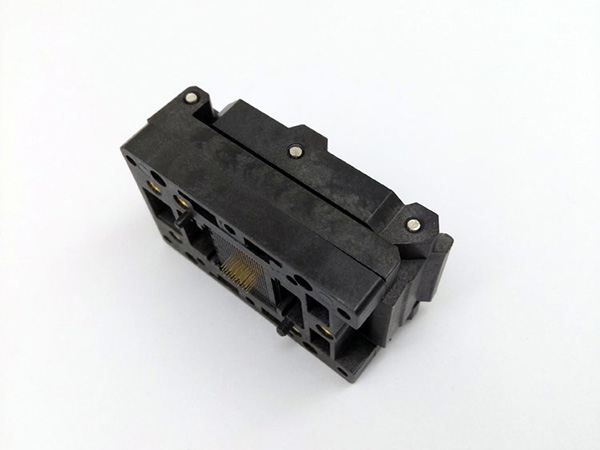

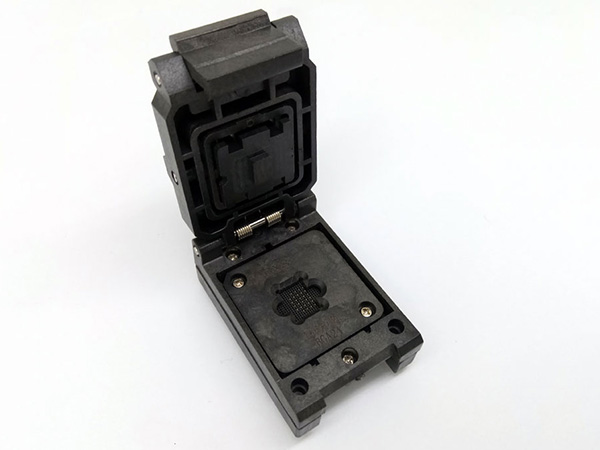

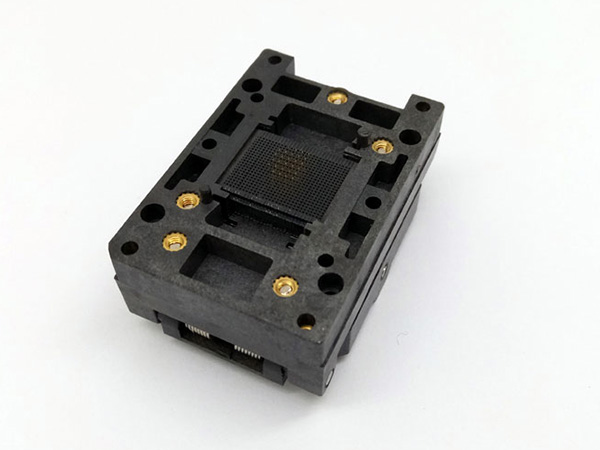

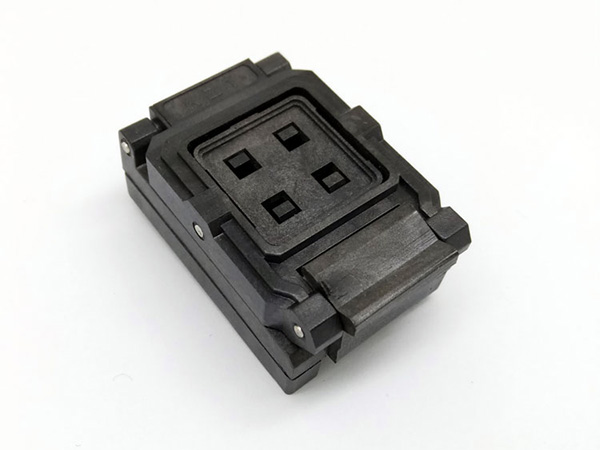

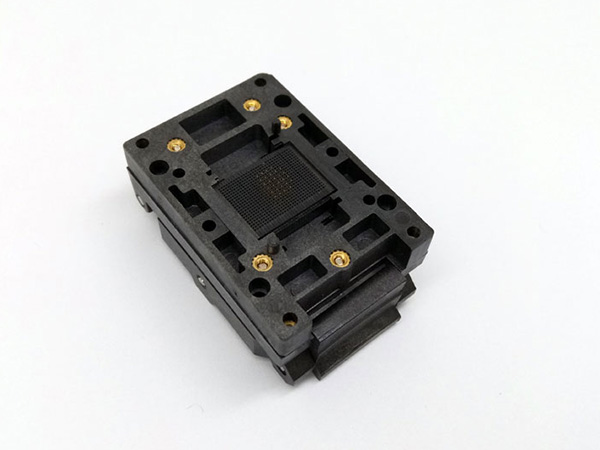

Product image
