QFN12 MLF12 0.4 2*2 open top burn in socket

QFN12 MLF12 Open Top Frame Burn in Socket Chip Size 2*2 Pitch 0.4mm Programming Socket Flash Adapter QFN12 Burn in Socket

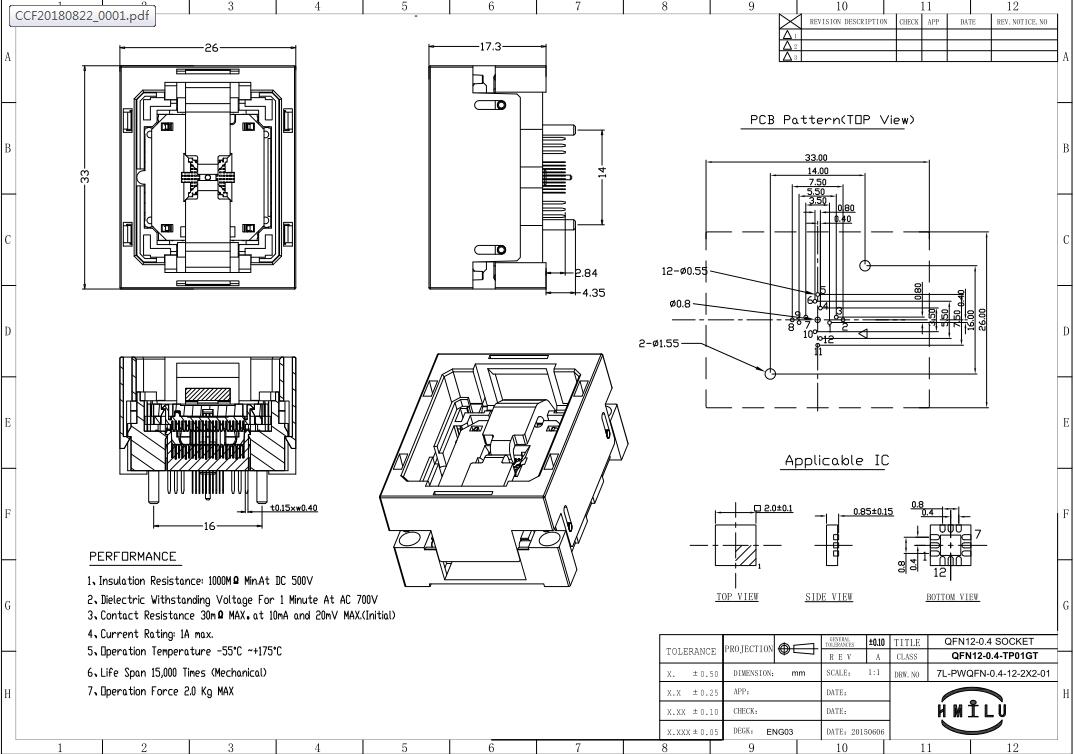

Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • 1.Product Usage : programmer socket , test socket , burn in and test for chip QFN12

  • 2.Applicable Package : QFN12 , pin pitch 0.4mm

Specification and Dimension

Model Number QFN 12
Type Test & Programming Socket ( with pcb )
Pin Pitch 0.4 mm
Pin Count 12 pins
Applicable IC body size 2*2 mm
Note Double-board can plug into DIP socket of programmer directly .

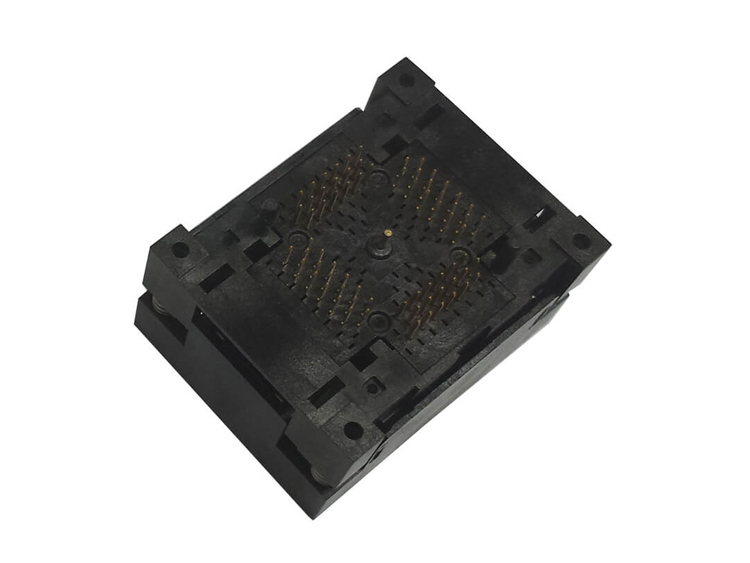

Product image

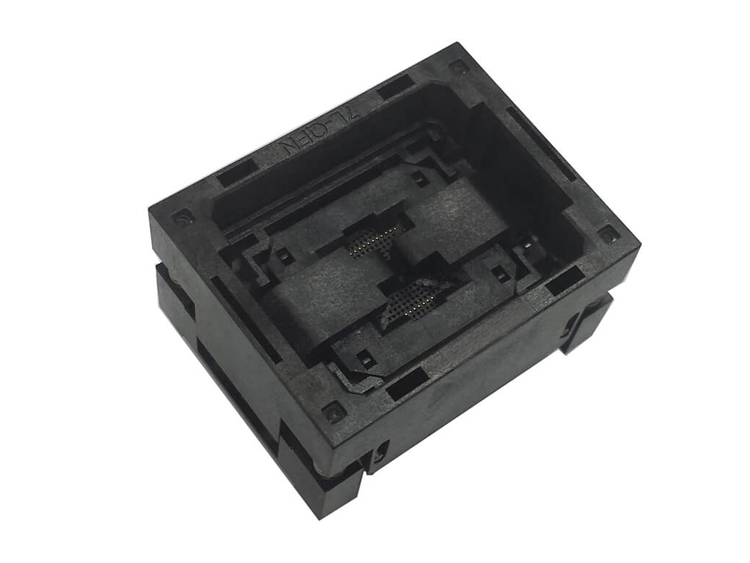

QFN12 MLF12 Open Top Frame Burn in Socket Chip Size 3*3 Pitch 0.5mm Programming Socket Flash Adapter QFN12 Burn in Socket

QFN12 MLF12 Open Top Frame Burn in Socket Chip Size 3*3 Pitch 0.5mm Programming Socket Flash Adapter QFN12 Burn in Socket

QFN12 MLF12 Open Top Frame Burn in Socket Chip Size 3*3 Pitch 0.5mm Programming Socket Flash Adapter QFN12 Burn in Socket

QFN12 MLF12 Open Top Frame Burn in Socket Chip Size 3*3 Pitch 0.5mm Programming Socket Flash Adapter QFN12 Burn in Socket
