QFN16 MLF16 0.5 3*3 Burn in Socket IC Test Socket

QFN16 MLF16 Burn in Socket IC Test Socket NP506-016-027-C-G Pitch 0.5mm Chip Size 3*3 Flash Adapter Open Top Programming Socket

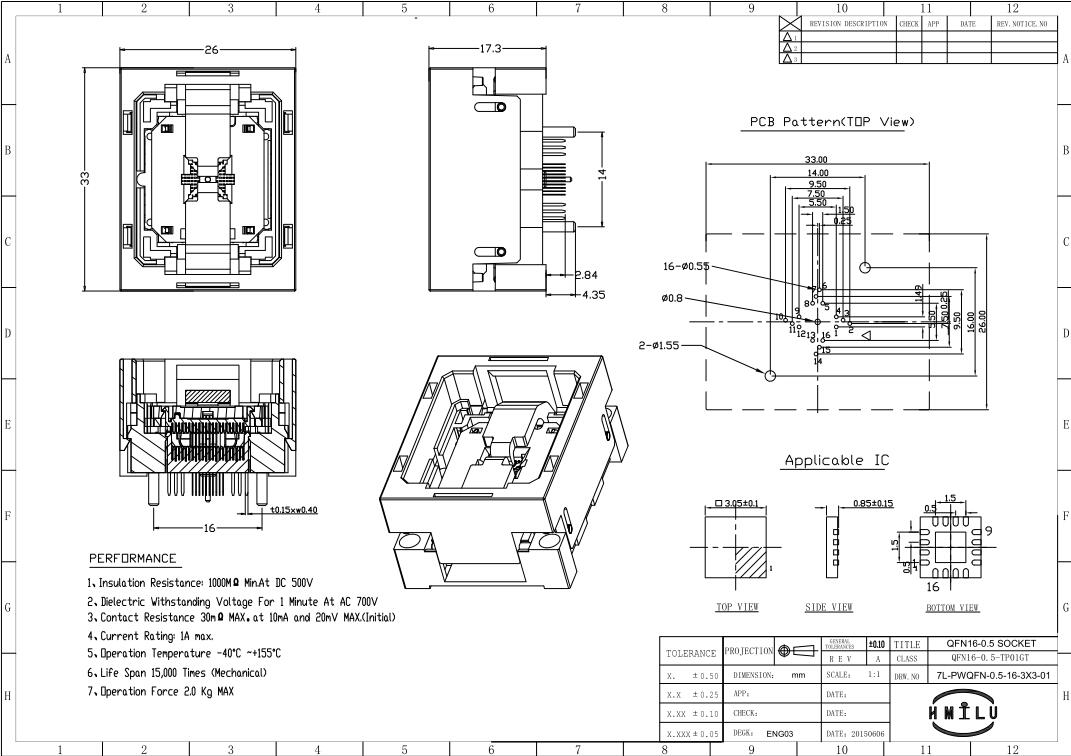

Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • 1.Product Usage : burn in socket , test socket , burn in and test for chip QFN16

  • 2.Applicable Package : QFN16 , pin pitch 0.5mm

Specification and Dimension

Type QFN16-0.5 (open top structure)
Pin pitch 0.5 mm
Pin Count 16
Applicable IC Body Dimension 3*3 mm

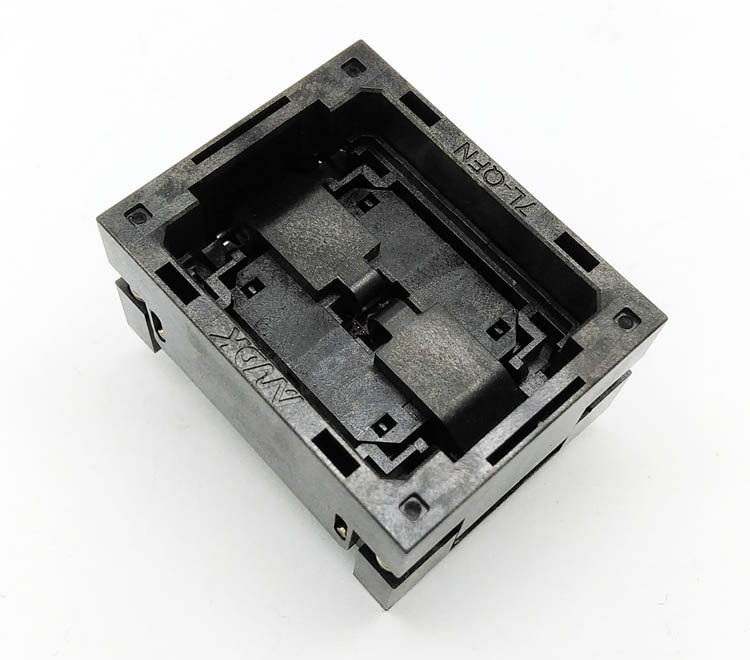

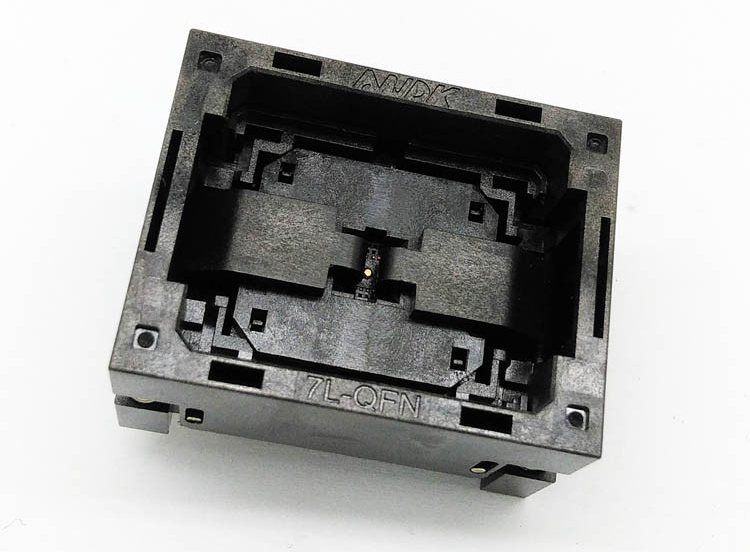

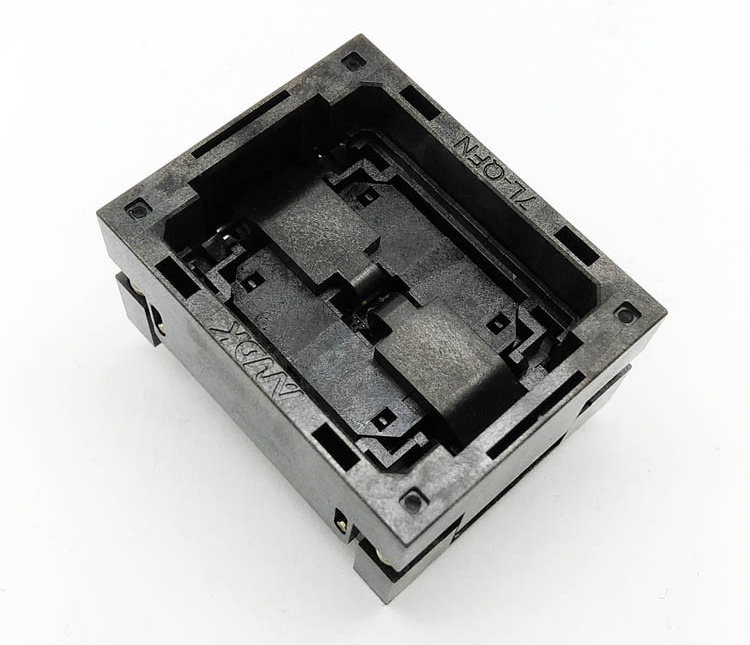

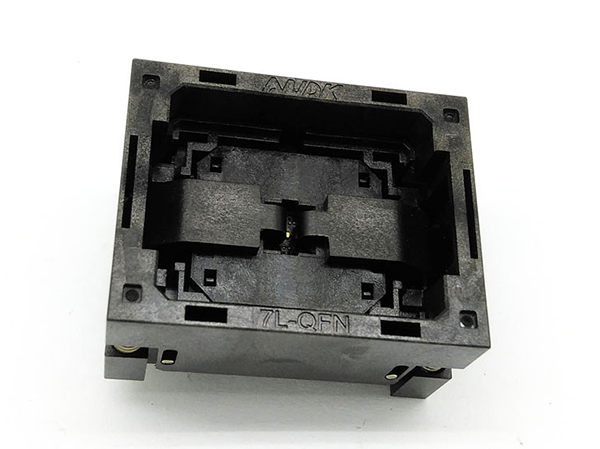

Product image

QFN16 MLF16 Burn in Socket IC Test Socket

QFN16 MLF16 Burn in Socket IC Test Socket

QFN16 MLF16 Burn in Socket IC Test Socket

QFN16 MLF16 Burn in Socket IC Test Socket
