QFN20 MLF20 WLCSP20 0.5 4*4 programmer socket

QFN20 MLF20 WLCSP20 to DIP20 Double-Board Programming Socket Adapter Pitch 0.5mm IC Body Size 4x4mm IC550-0204-009-G Test Socket
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • 1.100% brand new , high Quality and duarable

  • 2.Tested before shipping

  • 3.Easy to use

  • 4.Technical support and datasheet are available if you need

  • 5.we are the original manufacturer and welcome anyone to be our distribution agents

  • 6.Professional manufacturer in all kinds of IC chip testing sockets and adapters

  • More Quantities with LOWER PRICE!

  • More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

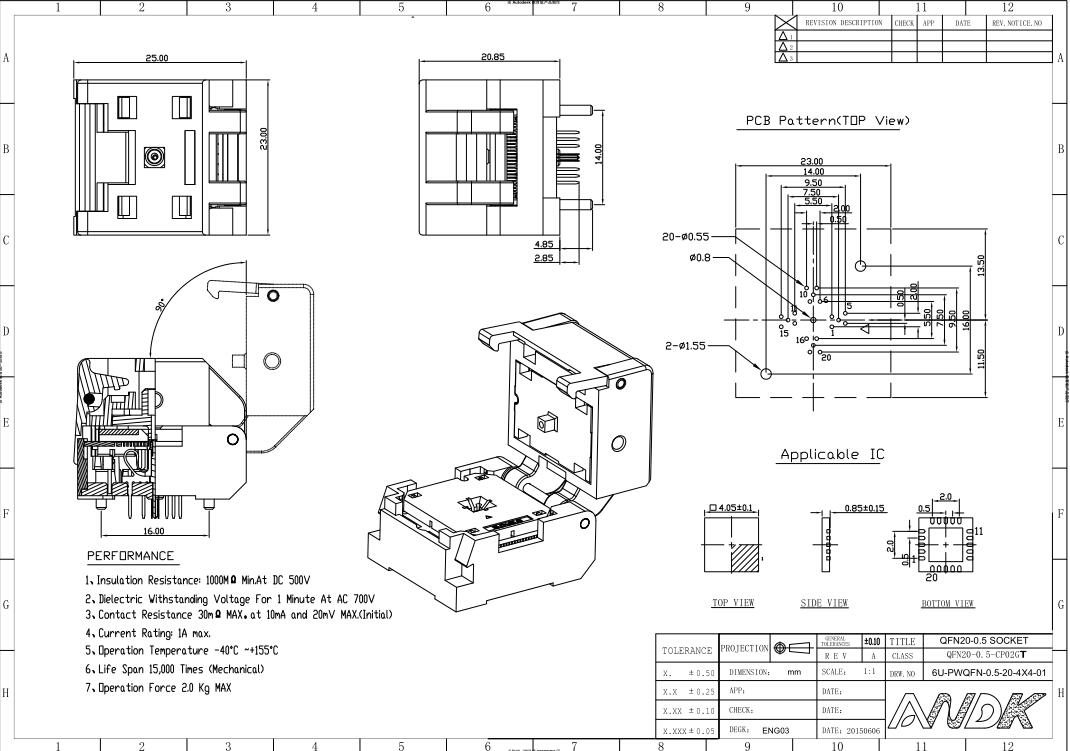

Specification and Dimension

Model Number QFN 20 burn in socket
Type Test & Programming Socket ( with pcb )
Package QFN 20 , MLF 20 , WLCSP 20
Pin Pitch 0.5 mmPin
Pin Count 20 pins
Applicable IC body size 4x4 mm
Note Double-board can plug into DIP socket of programmer directly .

Product image

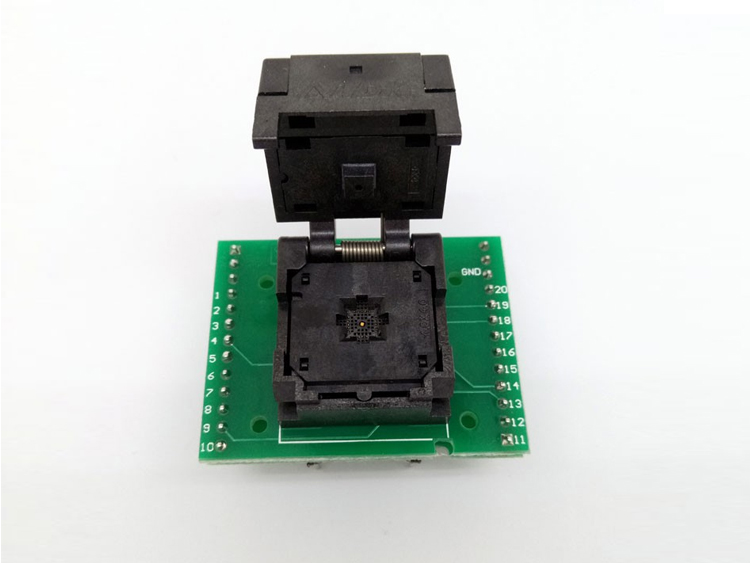

QFN20 MLF20 WLCSP20 to DIP20 Double-Board Programming Socket Adapter Pitch 0.5mm IC Body Size 4x4mm IC550-0204-009-G Test Socket
