QFN52 MLF52 MLP52 0.4-7*7 BURN IN SOCKET

QFN52 MLF52 MLP52 NP506-052-052-SC-G Burn in IC Test Socket Opentop Chip Size 7*7 Programming Socket Flash Connector Wholesale

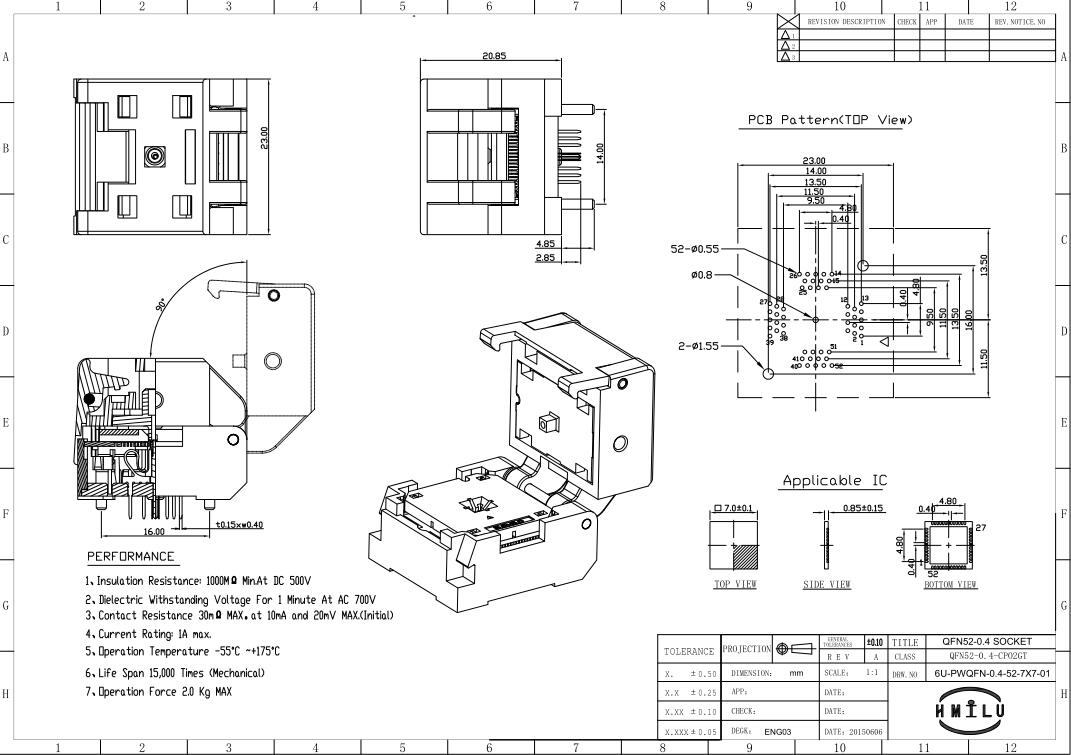

Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • 1.Product Usage : programmer socket , test socket , burn in and test for chip QFN52

  • 2.Applicable Package : QFN52 , pin pitch 0.4mm

Specification and Dimension

Type QFN 52-0.4
Pin pitch 0.4 mm
Pin Count 52
Applicable IC Body Dimension 7*7 mm
Applicable IC Body Dim... ...
Product description QFN52 MLF52 MLP52 NP506-052-052-SC-G Burn in IC Test Socket Clamshell structure Chip Siz...

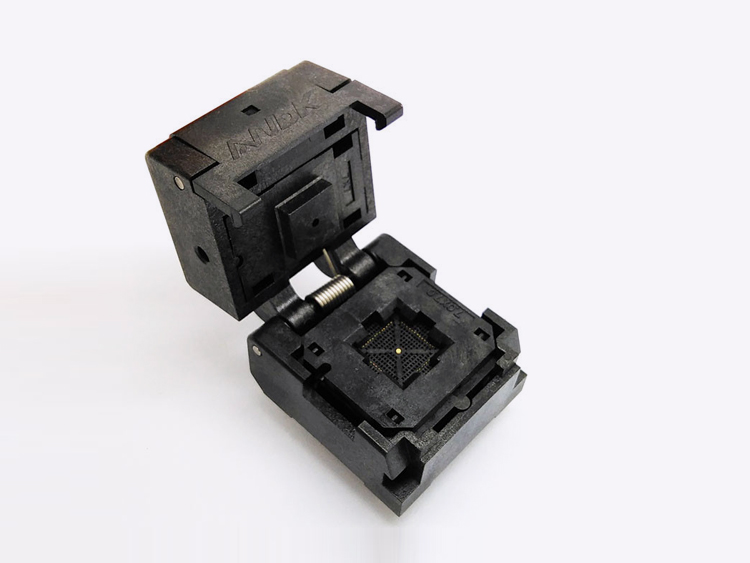

Product image

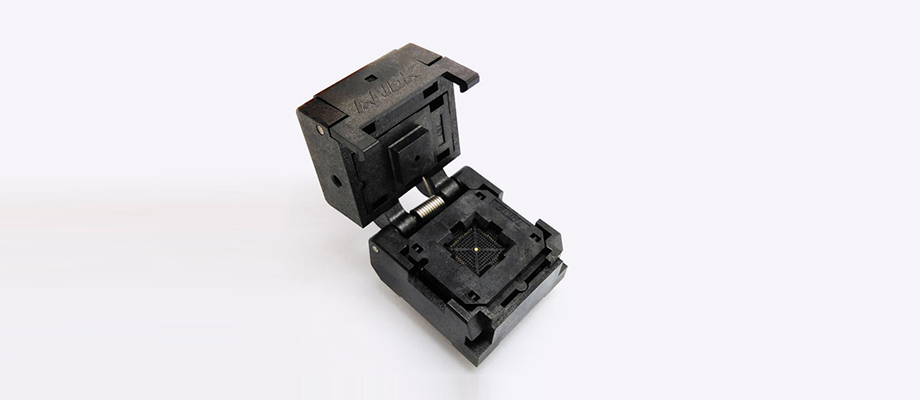

QFN52 MLF52 MLP52 NP506-052-052-SC-G Burn in IC Test Socket Opentop Chip Size 7*7 Programming Socket Flash Connector Wholesale
