QFN84 Burn in Socket QFN84 MLF84 IC Test Socket

QFN84 Burn in Socket QFN84 MLF84 IC Test Socket Pitch 0.4mm Clamshell Chip Size 10*10 Flash Programming Adapter IC549-0844-018-G

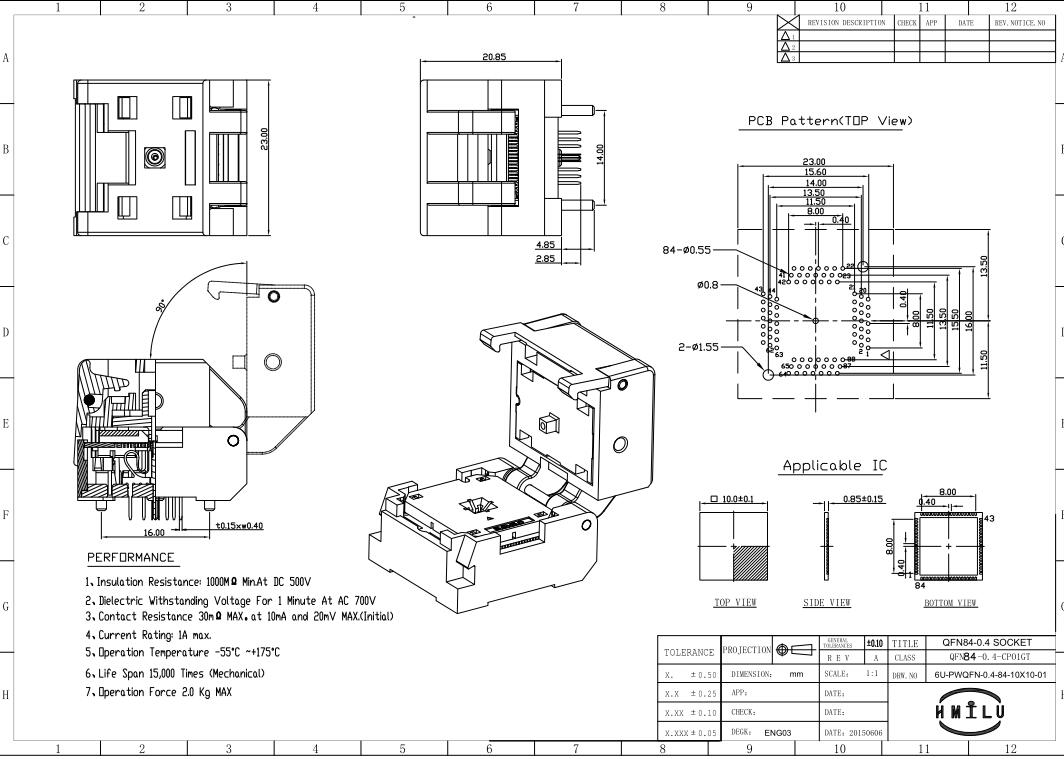

Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • 1. Product Usage : burn in socket , test socket , burn in and test for chip QFN84

  • 2.Applicable Package : QFN84 , pin pitch 0.4mm

Specification and Dimension

Type QFN84-0.4
Pin pitch 0.4 mm
Pin Count 84
Applicable IC Body Dimension 10*10 mm

Product image

QFN84 Burn in Socket QFN84 MLF84 IC Test Socket

QFN84 Burn in Socket QFN84 MLF84 IC Test Socket

QFN84 Burn in Socket QFN84 MLF84 IC Test Socket

QFN84 Burn in Socket QFN84 MLF84 IC Test Socket
