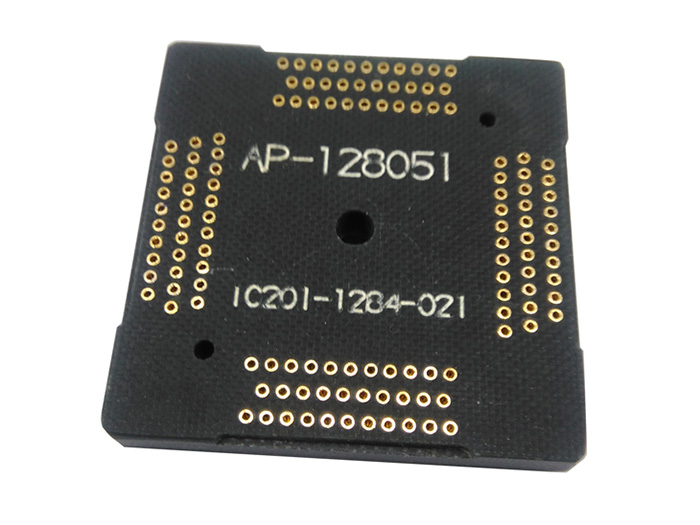

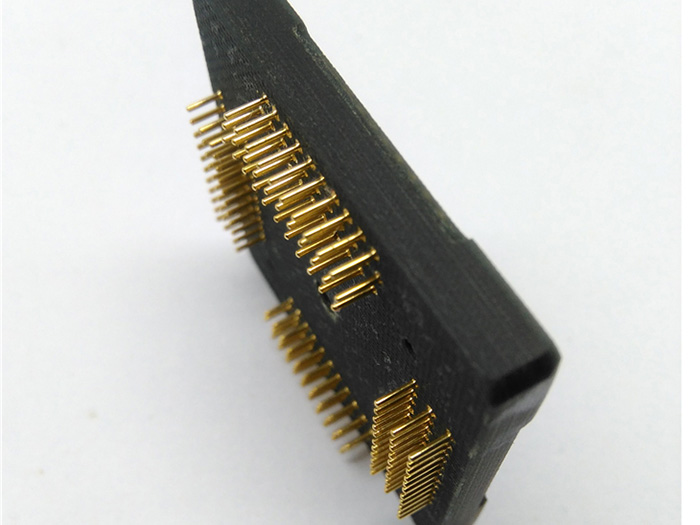

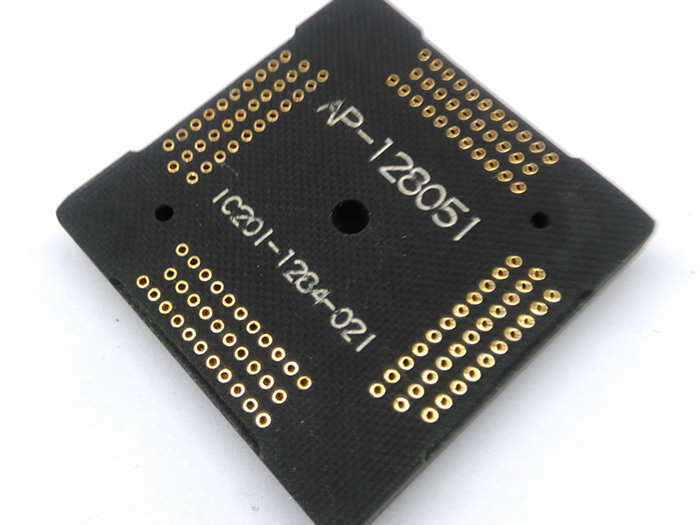

QFP128-0.5 New receptacle pin board adapter board
QFP128-0.5 New receptacle pin board adapter board pinboard Longer usage lifetime than Stable Quality
Function :

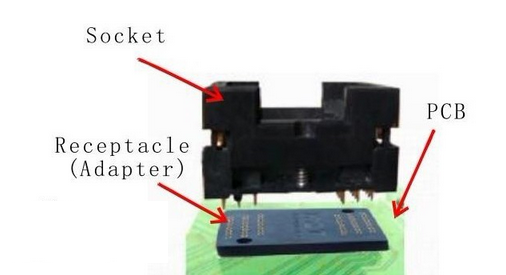

- a) For massive chip testing , protect the PCB
- b) Easy to change socket , no need of welding , improve efficiency greatly
Contacts: Beryllium Copper Alloy
Contact Plating: Gold over Nickel
Operation Force: 050g/pin, the more PINs the greater force
Contact Resistence: 50mΩ max
Dielectric: 700V AC for 1 minute
Insulation Resistance: 1,000mΩ500V DC
Max Current Capacity: 2A
Operation Temperature: -55℃~+175℃
Life Span: 1,000 Times(Mechanical)
§High quality and durable;
§Has been Tested before shipping;
§Easy to operate,Surported Devices;
§Shrapnel with beryllium copper which impedance smaller,better flexibility;
§Suitable for ALL-11 Series,ALL-100GANG , LT-48 Series, Super PRO Series, TOP Series etc;
§The shell of socket adopts special engineering plastic with high strength and long life;
§For more Info. Pls send your email to me via Trademanager or via message.
Contact Plating: Gold over Nickel
Operation Force: 050g/pin, the more PINs the greater force
Contact Resistence: 50mΩ max
Dielectric: 700V AC for 1 minute
Insulation Resistance: 1,000mΩ500V DC
Max Current Capacity: 2A
Operation Temperature: -55℃~+175℃
Life Span: 1,000 Times(Mechanical)
§High quality and durable;
§Has been Tested before shipping;
§Easy to operate,Surported Devices;
§Shrapnel with beryllium copper which impedance smaller,better flexibility;
§Suitable for ALL-11 Series,ALL-100GANG , LT-48 Series, Super PRO Series, TOP Series etc;
§The shell of socket adopts special engineering plastic with high strength and long life;
§For more Info. Pls send your email to me via Trademanager or via message.
Specification and Dimension
| Model Number: | QFP 128 receptacle board pinboard |
| Product Usage: | Programming Socket,Test Socket,Burn-in,Test for QFP48 |
| Applicable Package: | QFP 128 PQFP 128 TQFP 128 |

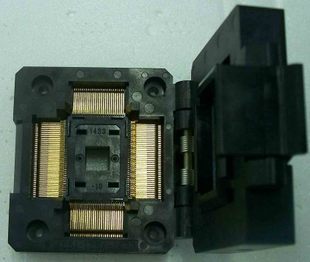

| Test Socket: | QFP 128-0.5 socket |
| Feature: | Pin out as the chips'pad |
| Product description: |
Socket Body: PEI Contacts: Beryllium Copper Alloy Contact Plating: Gold over Nickel Operation Force: 050g/pin, the more PINs the greater force Contact Resistence: 50mΩ max Dielectric: 700V AC for 1 minute Insulation Resistance: 1,000mΩ500V DC Max Current Capacity: 2A Operation Temperature: -55℃~+175℃ Life Span: 1,000 Times(Mechanical) |
Product image
