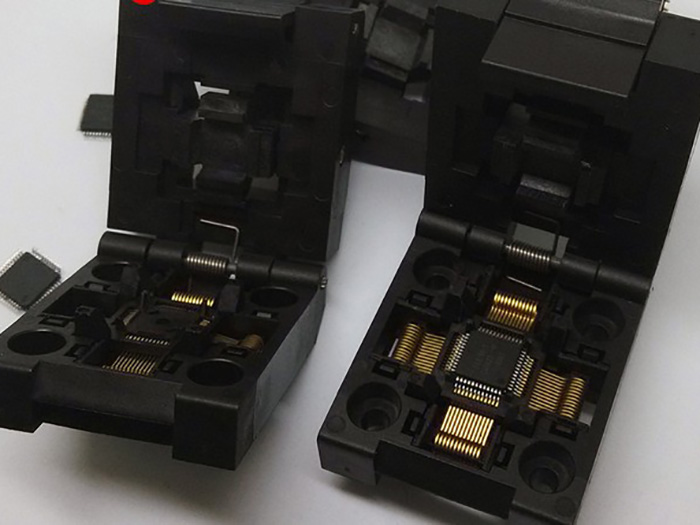

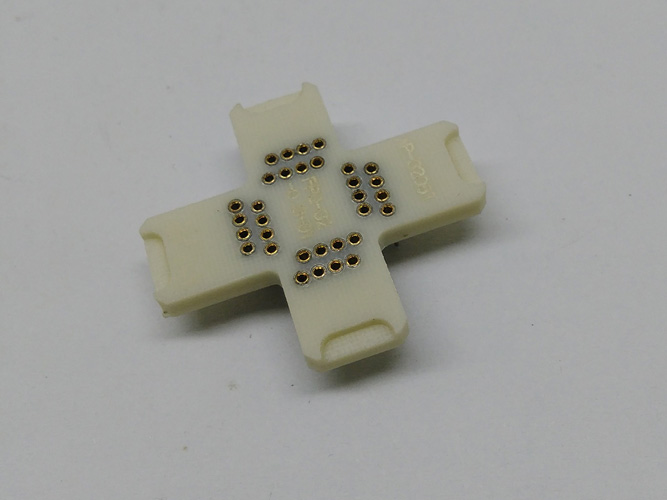

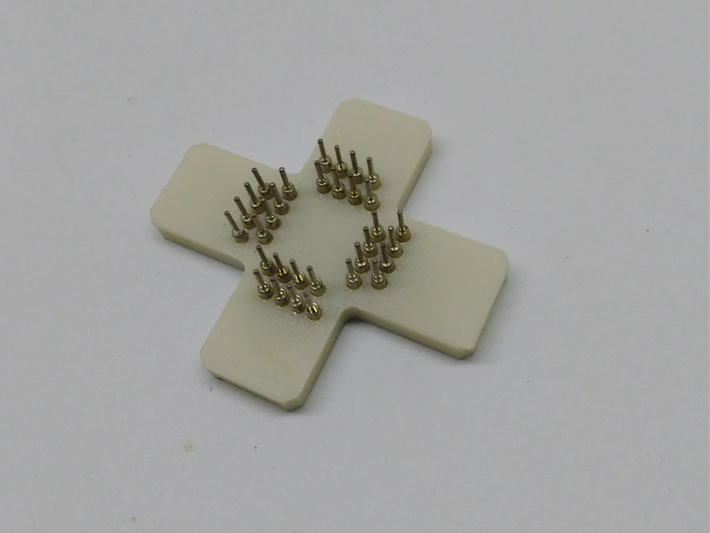

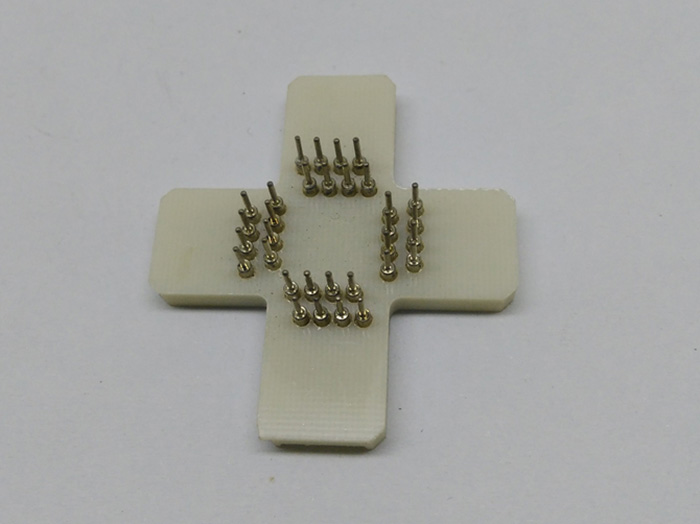

QFP32-0.5 White receptacle pin board
QFP32-0.5 White receptacle pin board STM32 OTQ-32-0.5-01 adapter board pinboard Longer usage lifetime than Stable Quality
Specification and Dimension :
-
*Contacts: Beryllium Copper Alloy
Contact Plating: Gold over Nickel
Operation Force: 050g/pin, the more PINs the greater force
Contact Resistence: 50mΩ max
Dielectric: 700V AC for 1 minute
Insulation Resistance: 1,000mΩ500V DC
Max Current Capacity: 2A
Operation Temperature: -55℃~+175℃
Life Span: 1,000 Times(Mechanical)
§High quality and durable;
§Has been Tested before shipping;
§Easy to operate,Surported Devices;
§Shrapnel with beryllium copper which impedance smaller,better flexibility;
§Suitable for ALL-11 Series,ALL-100GANG , LT-48 Series, Super PRO Series, TOP Series etc;
§The shell of socket adopts special engineering plastic with high strength and long life;
§For more Info. Pls send your email to me via Trademanager or via message.
Specification and Dimension
| Model Number: | QFP 32 White receptacle board pinboard |
| Product Usage: | Programming Socket,Test Socket, |
| Applicable Package: | QFP 32 PQFP 32 TQFP 32 |
| Test Socket: | QFT-32-0.5-06 socket |
| Feature : | Pin out as the chips'pad |
| Product description: |
Contacts: Beryllium Copper Alloy Contact Plating: Gold over Nickel Operation Force: 050g/pin, the more PINs the greater force Contact Resistence: 50mΩ max Dielectric: 700V AC for 1 minute Insulation Resistance: 1,000mΩ500V DC Max Current Capacity: 2A Operation Temperature: -55℃~+175℃ Life Span: 1,000 Times(Mechanical) |
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .
Product image
