QFP48 TQFP48 LQFP48 to DIP48 MCU Programmer
QFP48 TQFP48 LQFP48 to DIP48 MCU Programmer Pitch 0.5mm IC Body Size 7x7mm IC51-0484-806 Test Socket Adapter
Product Feature:
-
100% brand new , high Quality and duarable -
Tested before shipping -
Easy to use -
Technical support and datasheet are available if you need . -
we are the original manufacturer and welcome anyone to be our distribution agents -
Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .
Specification and Dimension :
-
* Type : Test & Programming Socket ( with pcb )
* Package : QFP48 , TQFP48 , LQFP48
* Pin Pitch : 0.5 mm
* Pin Count : 48 pins

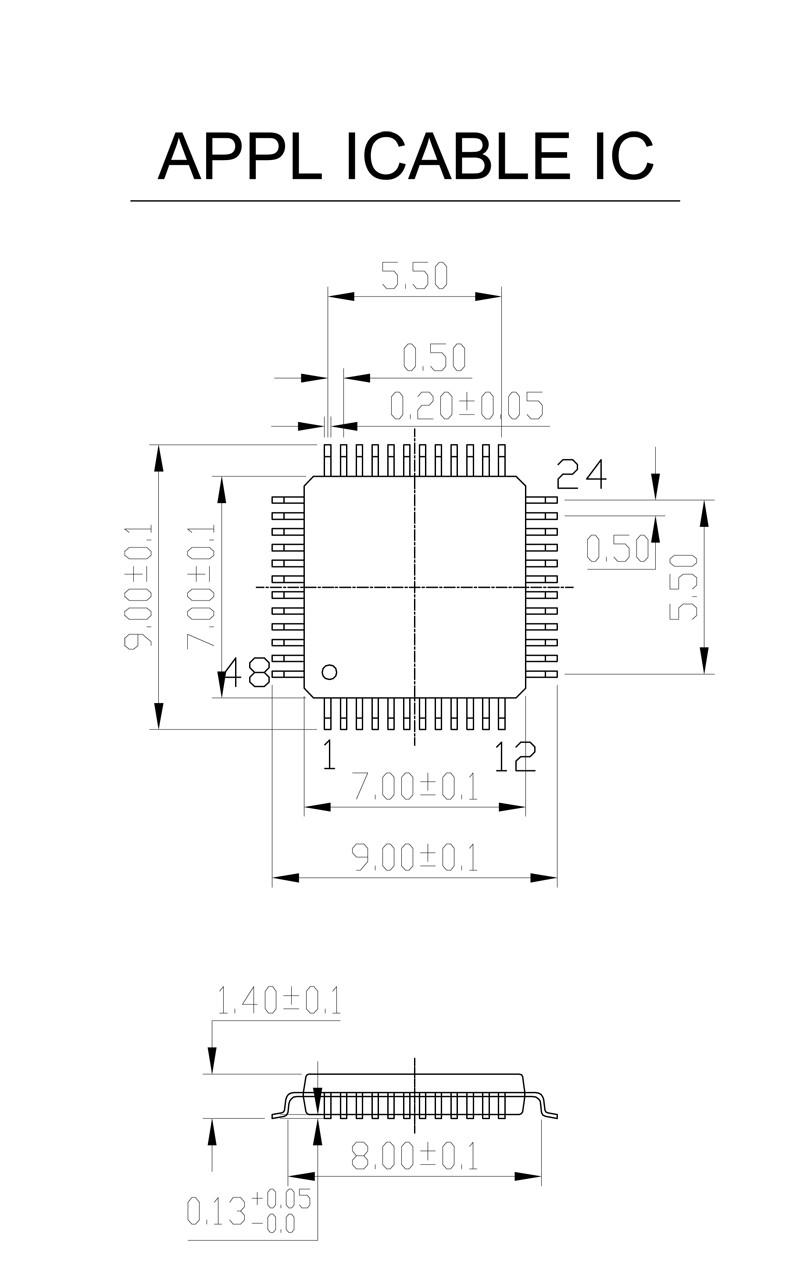

* Applicable IC body size : 7x7 mm
* IC tip-to-tip : 9x9 mm
* Note : This type adapter can plug into the DIP socket of your programmer directly .
Specification and Dimension
| Model Number: | QFP 48 Test & Programming Socket |
| Type: | Test & Programming Socket(with scp) |
| Package: | QFP 48 , TQFP 48 , LQFP 48 |
| Pin Pitch: | 0.5 mmPin Count:48 pins |
| Applicable IC body size: | 7x7 mm |
| IC tip-to-tip: | 9x9 mm |
| Structure: | Clamshell |
| Life Span: | 15,000 times |
| Model: | IC51-0484-806 |
| Note: | Can plug into the DIP socket of your programmer |
| Product description: |
* 100% brand new , high Quality and duarable * Tested before shipping * Easy to use * Technical support and datasheet are available if you need . * we are the original manufacturer and welcome anyone to be our distribution agents * Professional manufacturer in all kinds of IC chip testing sockets and adapters. |
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .

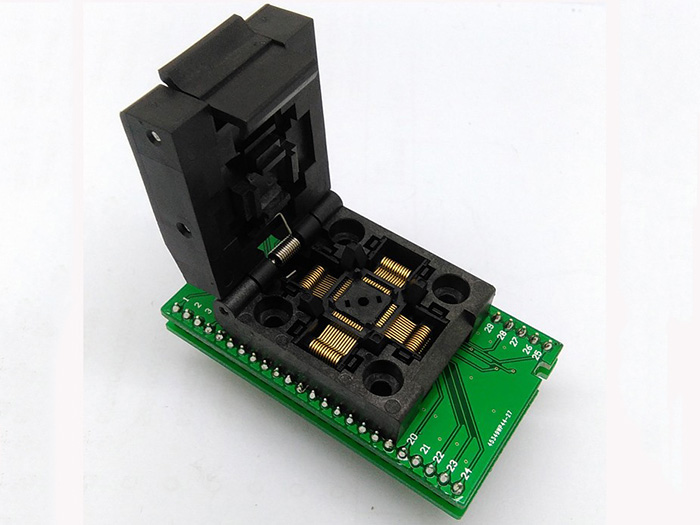

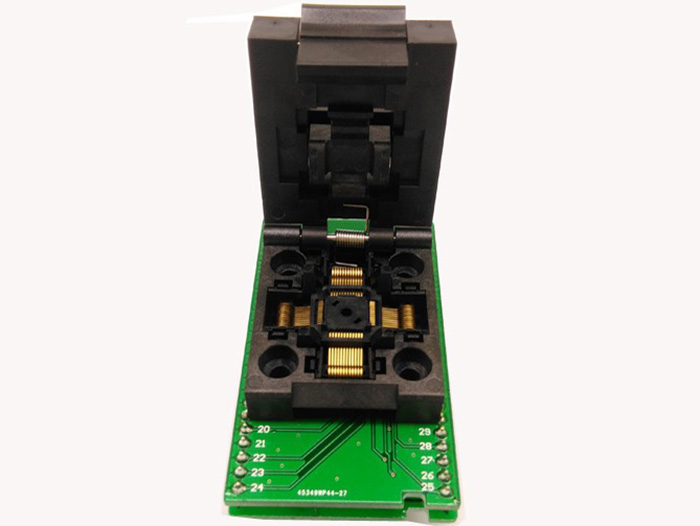

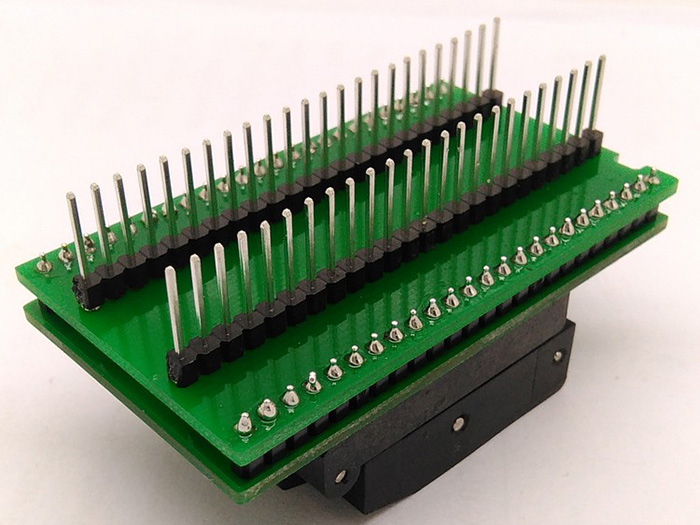

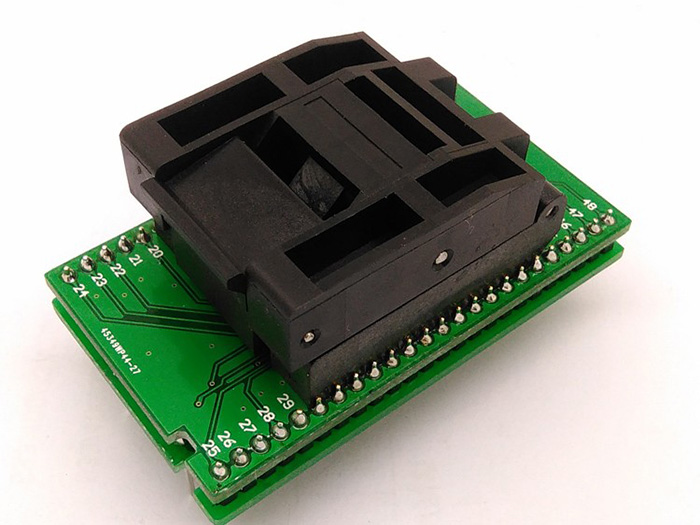

Product image
