SOP16(16)-1.27 Programming socket
SOP16-1.27 SOP16 150mil Programming Socket OTS-16-1.27-03 IC Test Socket Conversion Block Programmer Adapter Plug
Product features:
-
1. Use double contact technology , contact more stable . -
2. The socket shell use special engineering plastic , high strength , long mechanical life . -
3. The shapnel use import beryllium copper , small impedance , good flexibility . -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
HongYi & KZT socket have different socket size tooling for a variety of different electronic devices Oscillators, X-tal, SAW filters, Capacitors, MEMS, Sensors and other Semiconductor devices

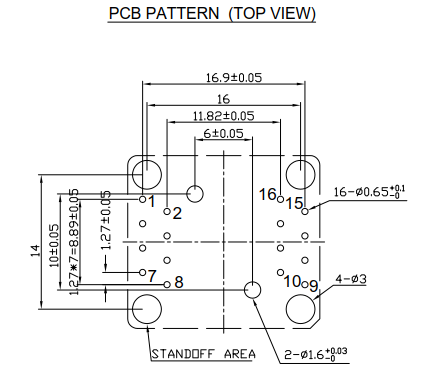

Specification and Dimension
| Material : | Insulator , PEI , PPS / Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50) |
| Insulation resistance : | 1000m Min,At DC 500V |
| Voltage resistance : | voltage resistance |
| Contact resistance : | exceed 25m |
| PIN feet stretch : | 55g/PIN(Normal) |
| Mechanical life : | 50000Times |
| Operating temperature : | Minus 65 degree to 55 degress |
| Operating force : | exceed 0.9kg Max |
| Type : | SOP 16-1.27 |
| Pin pitch : | 1.27 mm |
| Pin Count : | 16 |
| Applicable IC body width : | 3.9mm |
| ANDK Thoery life: | 20,000 times(Mechanical) |
| HMILU Thoery life: | 5,000 times(Mechanical) |
| ANDK Operating Temperature: | -55℃~+175 ℃ |

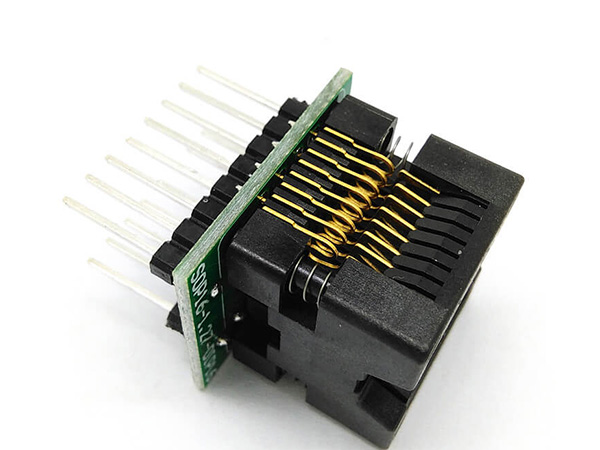

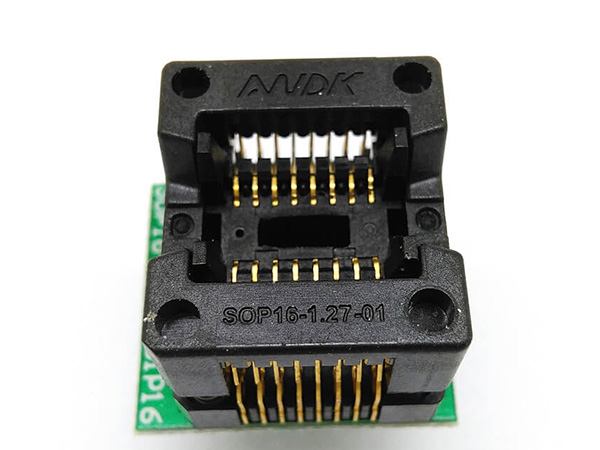

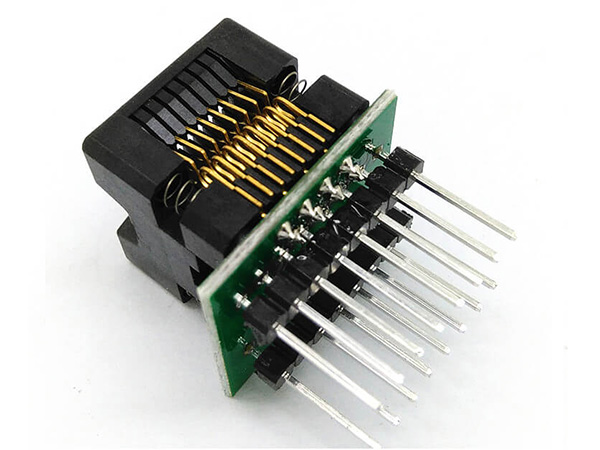

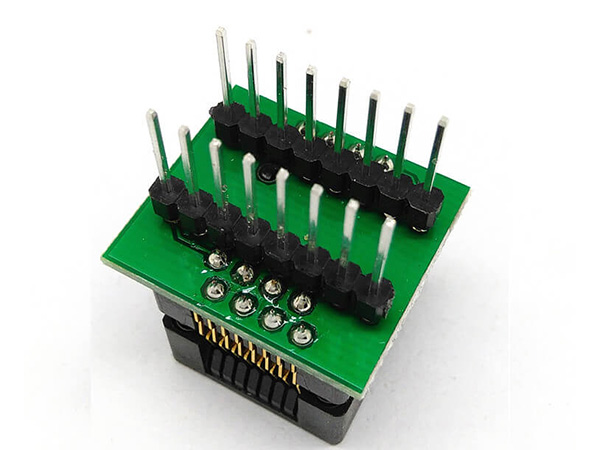

Product image
