SOP20(28) Burn in Socket OTS-28-1.27-01 Chip Test Socket

SOP20 Burn in Socket OTS-28-1.27-01 Chip Test Socket Programming Socket Programmer Adapter Conversion Block
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Features


  • 1.Use double contact technology , contact more stable ,

  • 2.The socket shell use special engineering plastic , high strength , long mechanical life ,

  • 3.The shapnel use import beryllium copper , small impedance , good flexibility ,

  • 4.Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

Product performance :


  • 1. Material :

  • Insulator , PEI , PPS

  • Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

  • 2. Electrical Specification :

  • Insulation resistance : 1000m Min,At DC 500V

  • Voltage resistance : voltage resistance

  • Contact resistance : exceed 25m

  • PIN feet stretch : 55g/PIN(Normal)

  • Mechanical life : 50000Times

  • Operating temperature : Minus 65 degree to 55 degress

  • Operating force : exceed 0.9kg Max

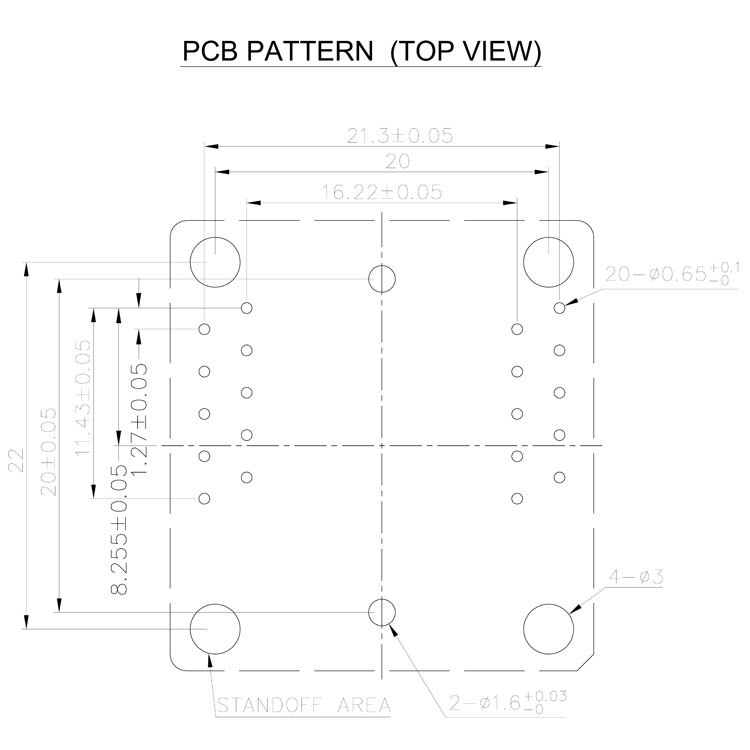

Specification and Dimension

Type SOP 20 (28)-1.27
Pin pitch 1.27 mm
Pin Count 20
Applicable IC body width 7.5mm

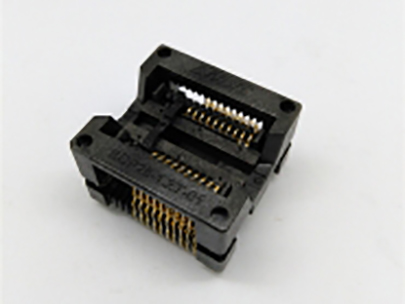

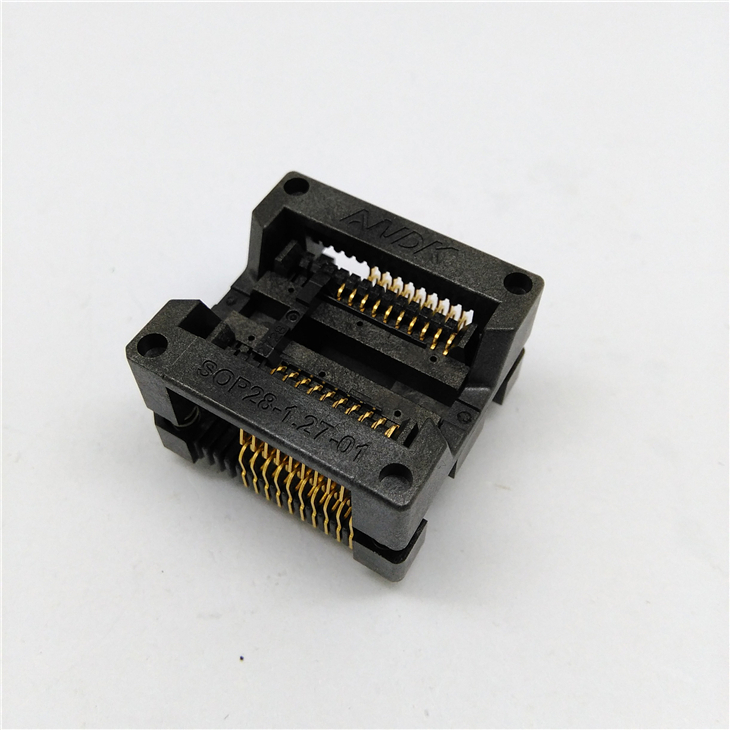

Product image

SOP20 Burn in Socket OTS-28-1.27-01 Chip Test Socket

SOP20 Burn in Socket OTS-28-1.27-01 Chip Test Socket

SOP20 Burn in Socket OTS-28-1.27-01 Chip Test Socket

SOP20 Burn in Socket OTS-28-1.27-01 Chip Test Socket
