SOP44(44)-1.27 burn-in socket Pitch 1.27mm Burn in Socket
SOP44(44)-1.27 burn-in socket Pitch 1.27mm Burn in Socket SOP44 Test Socket OTS-44-1.27-04 Programmer Adapter
Product Features
-
1.Use double contact technology , contact more stable , -
2.The socket shell use special engineering plastic , high strength , long mechanical life , -
3.The shapnel use import beryllium copper , small impedance , good flexibility , -
4.Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Material : -
Insulator , PEI , PPS -
Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50) -
2. Electrical Specification : -
Insulation resistance : 1000m Min,At DC 500V -
Voltage resistance : 700V AC at 1 min -
Contact resistance : 50mΩ MAX. -
PIN feet stretch : 55g/PIN(Normal) -
Mechanical life : 20000Times -
Operating temperature : Minus 55 degree to 175 degress -
Operating force : 0.5KG min~ 0.9kg Max
Specification and Dimension
| Type | SOP 44 (44)-1.27 |
| Pin pitch | 1.27 mm |
| Pin Count | 44 |
| Thoery life | 20,000 times(Mechanical) |
| HMILU Thoery life | 5,000 times(Mechanical) |
| ANDK Operating Temperature | -55℃~+175 ℃ |

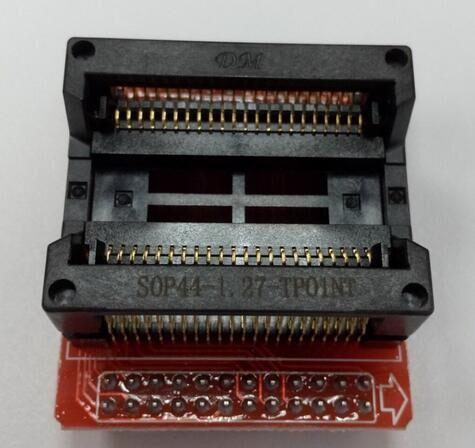

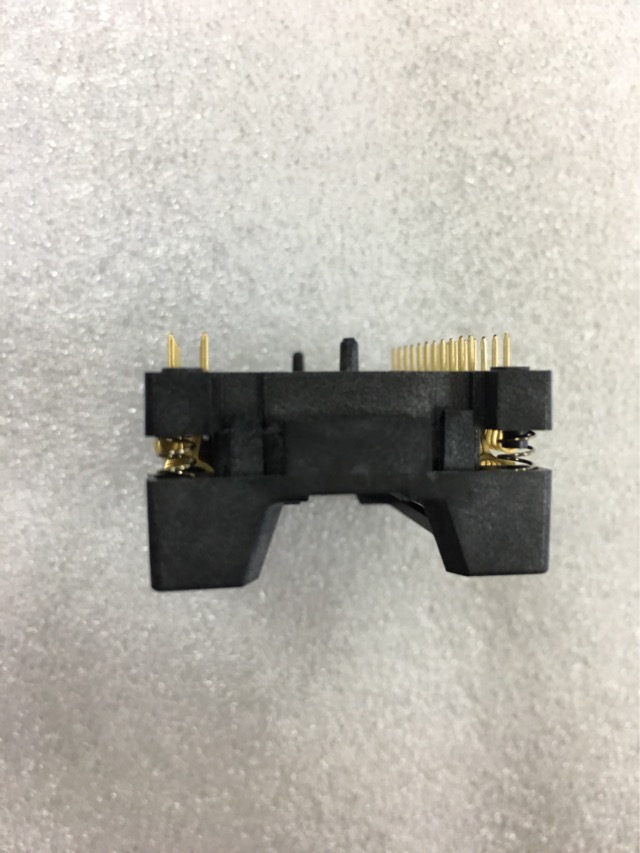

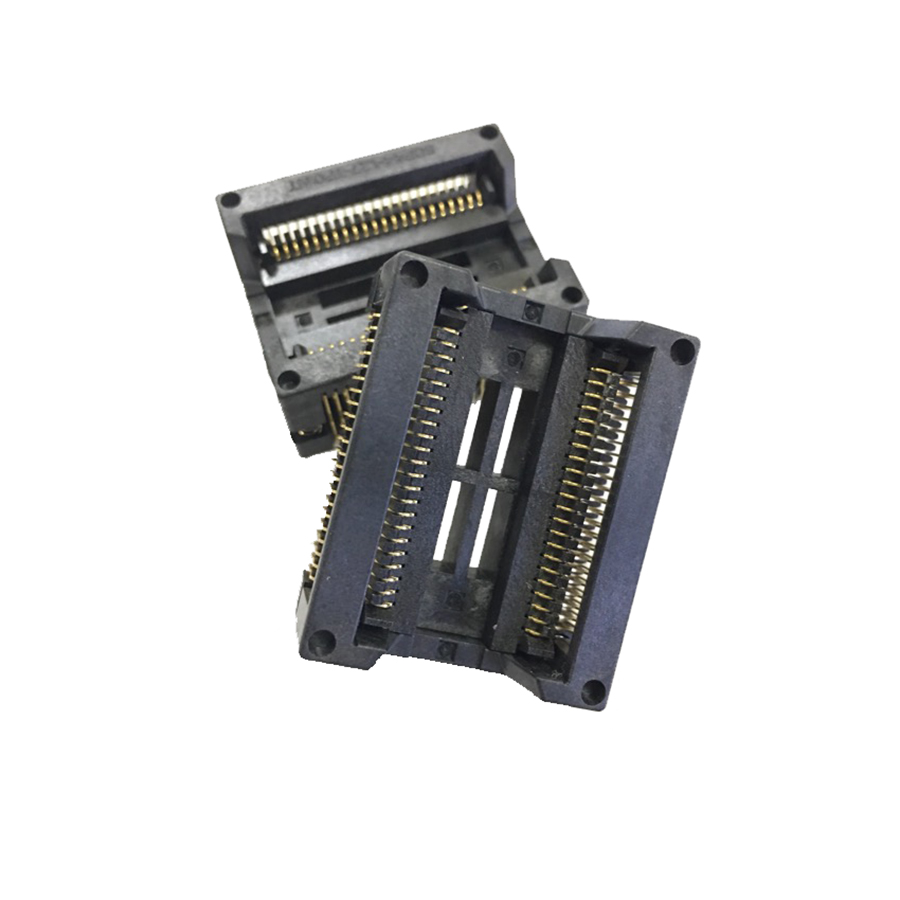

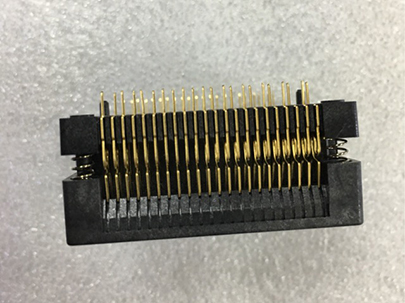

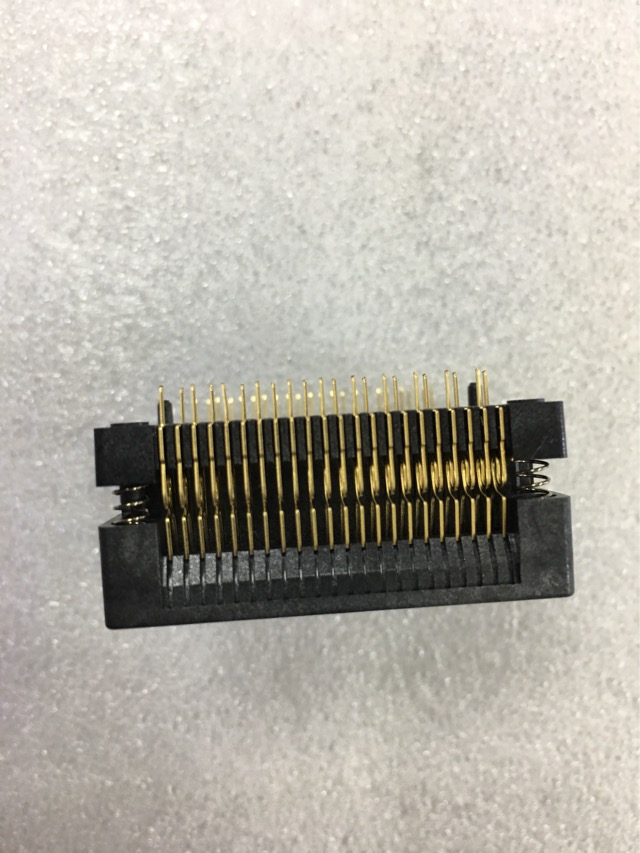

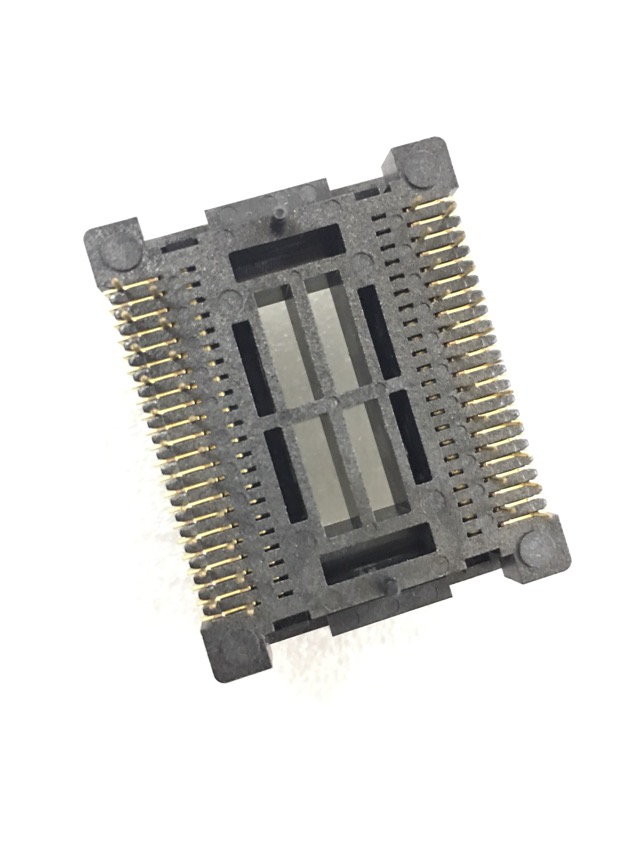

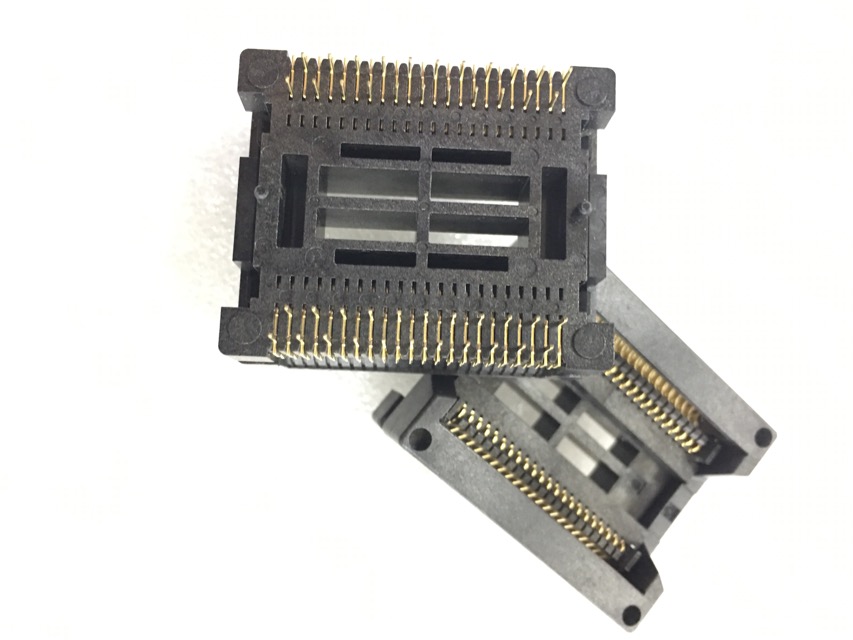

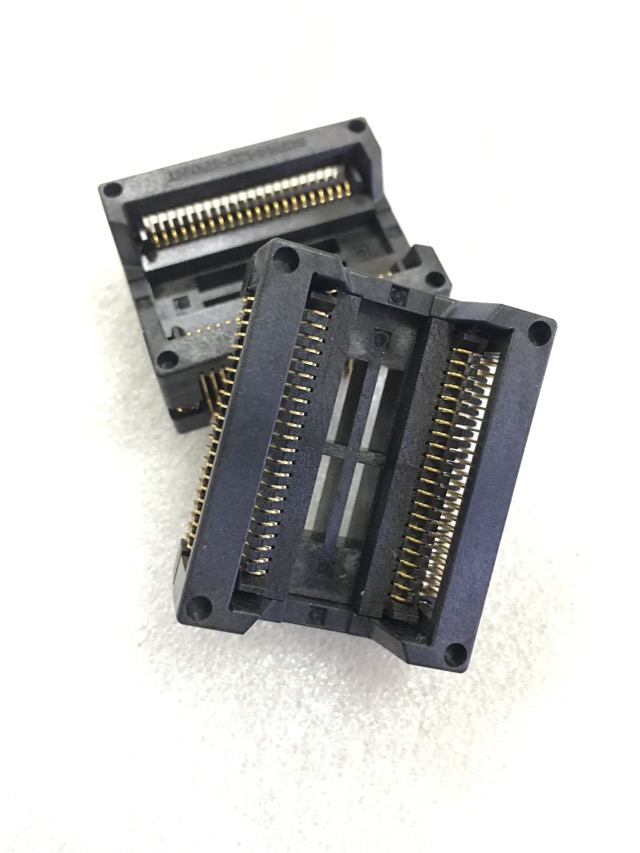

Product image
