TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Sock

TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Socket Adapter The Transposon Adapter Conversion Block
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Feature :


  • 1. Use double contact technology , contact more stable ,

  • 2. The socket shell use special engineering plastic , high strength , long mechanical life ,

  • 3. The shapnel use import beryllium copper , small impedance , good flexibility ,

  • 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

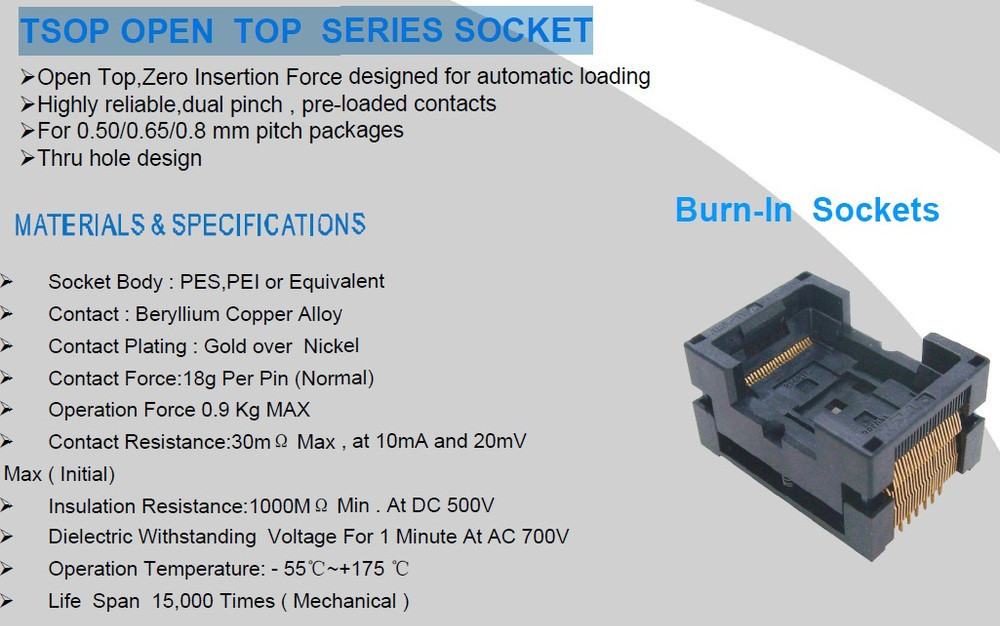

Product performance :


  • 1. Material :
    a) Insulator , PEI , PPS
    b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

  • 2. Electrical Specification :
    a) Insulation resistance : 1000m Min,At DC 500V
    b) Voltage resistance : voltage resistance
    c) Contact resistance : exceed 25m
    d) PIN feet stretch : 55g/PIN(Normal)
    e) Mechanical life : 100000Times
    f) Operating temperature : Minus 65 degree to 55 degress
    g) Operating force : exceed 0.9kg Max

  • 3. Specification :
    a) Type : Long TSOP 48-0.5
    b) Pin pitch : 0.5 mm
    c) Pin Count : 48
    d) Dimension : 12*18.4 mm

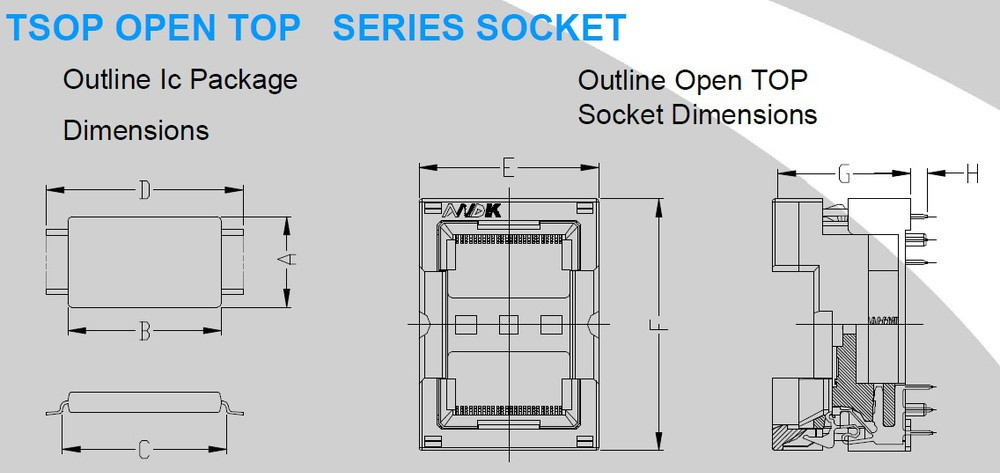

Specification and Dimension

Type: TSOP48 Long Test Socket
Pin: 48
Pin Pitch: 0.65 mm
Pin Count: 48
Chip Dimension: 12*18.4 mm
Product description: 1. Use double contact technology , contact more stable ,
2. The socket shell use special engineering plastic , high strength , long mechanical life ,
3. The shapnel use import beryllium copper , small impedance , good flexibility ,
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .

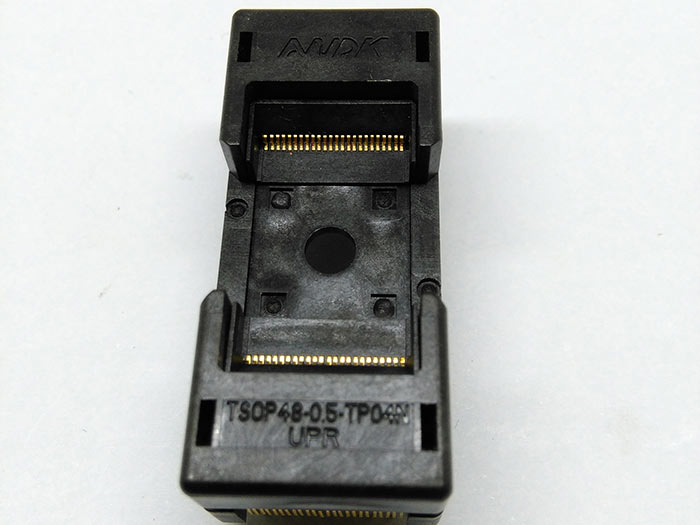

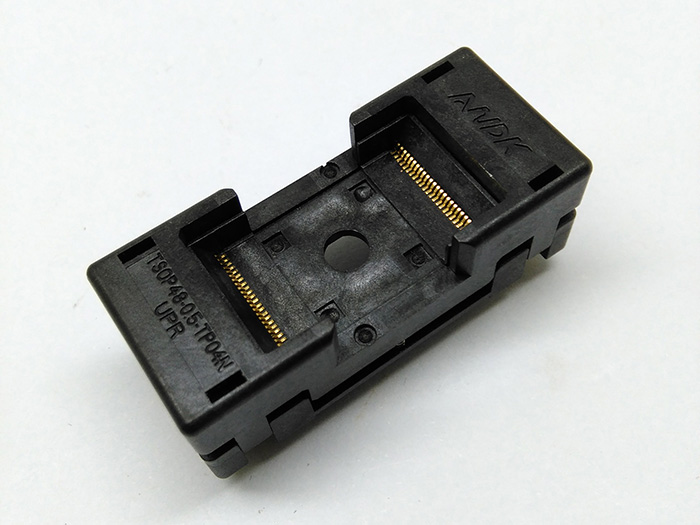

Product image

TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Sock

TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Sock

TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Sock

TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Sock

TSOP48 Long Open Top Burn in Socket Pin Pitch 0.5mm IC Test Sock
