TSOP56-0.5 Chip Test Socket IC354-0562-010 Flash Programmer Adap

TSOP56-0.5 Chip Test Socket IC354-0562-010 Flash Programmer Adapter Conversion Block Plugs
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product features


  • 1. Use double contact technology , contact more stable ,

  • 2. The socket shell use special engineering plastic , high strength , long mechanical life ,

  • 3. The shapnel use import beryllium copper , small impedance , good flexibility ,

  • 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

Product performance


  • 1. Material :
    a) Insulator , PEI , PPS
    b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

  • 2. Electrical Specification :
    a) Insulation resistance : 1000m Min,At DC 500V
    b) Voltage resistance : voltage resistance
    c) Contact resistance : exceed 25m
    d) PIN feet stretch : 55g/PIN(Normal)
    e) Mechanical life : 100000Times
    f) Operating temperature : Minus 65 degree to 55 degress
    g) Operating force : exceed 0.9kg Max

  • 3. Specification :
    a) Type : TSOP 48-0.5
    b) Pin pitch : 0.5 mm
    c) Pin Count : 48
    d) Chip Dimension : 12*20 mm (Including pin length)
    We're the original manufacturer , we have the lowest competitive prices . The shortest processing time guaranteed . If you want batch purchase , please feel free to contact us anytime , we can give you a more cheaper price .

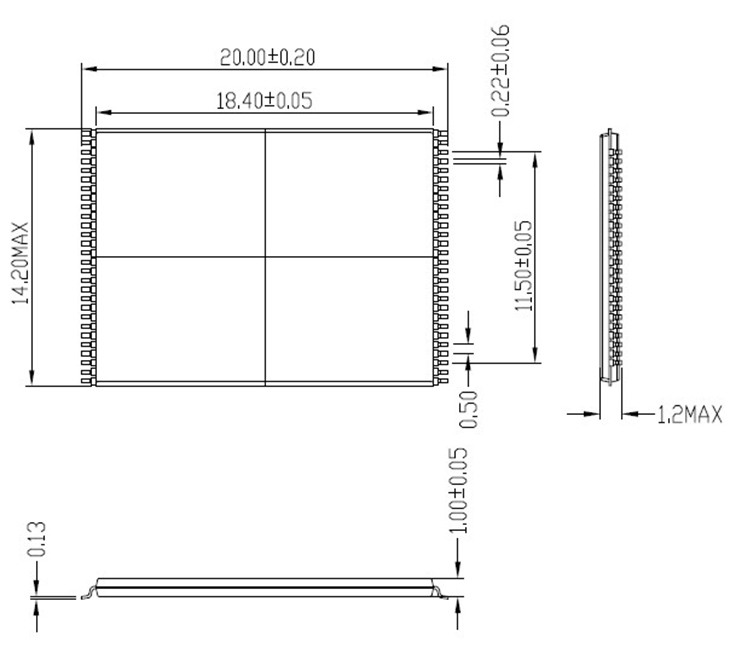

Specification and Dimension

Type TSOP 56 test socket
Pin Pitch: 0.5
Model: IC354-0562-010

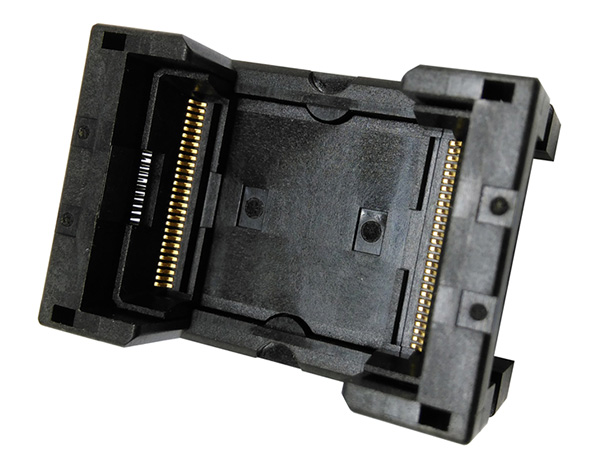

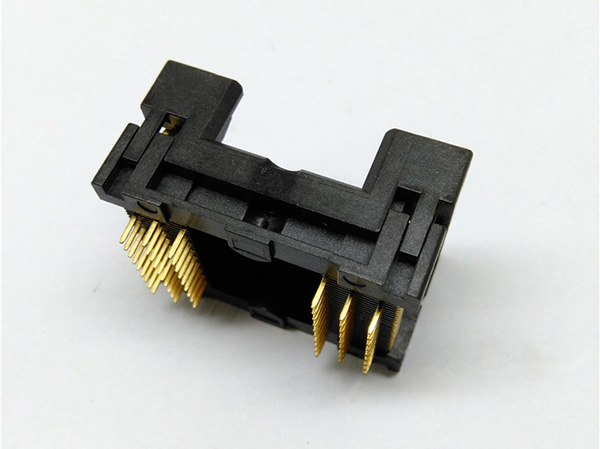

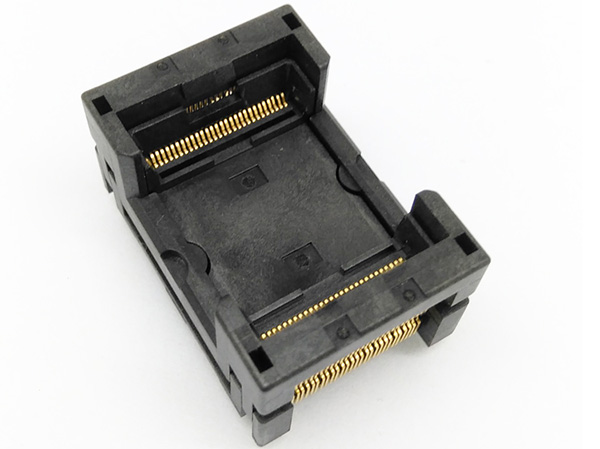

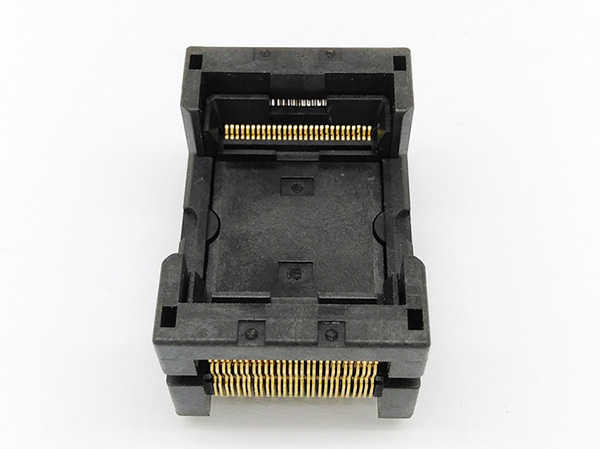

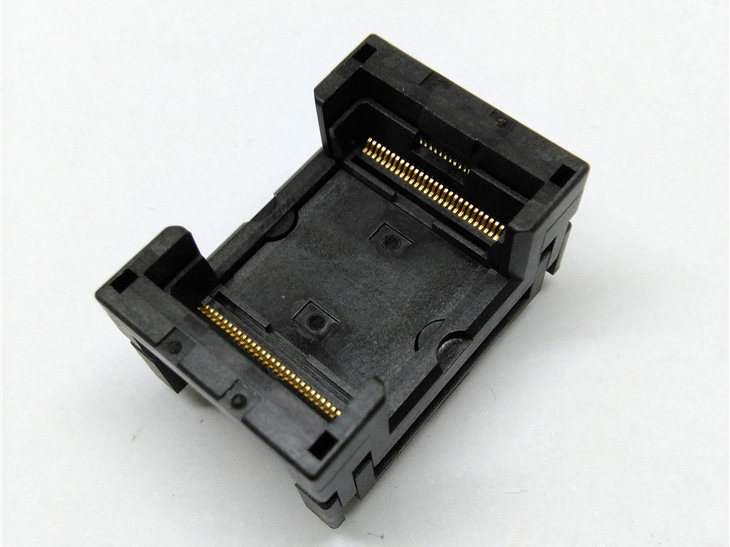

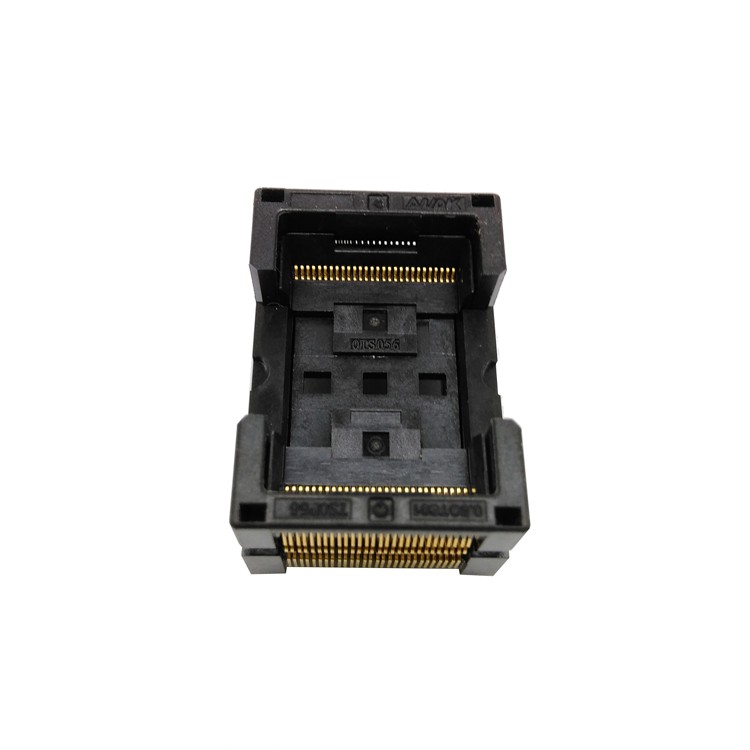

Product image

Chip Test Socket

Chip Test Socket

Chip Test Socket

Chip Test Socket

Chip Test Socket

Chip Test Socket

Chip Test Socket

Chip Test Socket
