TSOP66 Test Socket Open Top TSOP66-0.65 IC Test Socket
TSOP66 Test Socket Open Top TSOP66-0.65 IC Test Socket Double Contact Flash Programmer Adapter Conversion Block
Product Feature :
-
1. Use double contact technology , contact more stable , -
2. The socket shell use special engineering plastic , high strength , long mechanical life , -
3. The shapnel use import beryllium copper , small impedance , good flexibility , -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50) -
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 100000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max -
3. Specification :
a) Type : TSOP 66-0.65
b) Pin pitch : 0.65 mm
c) Pin Count : 66
d) Applicable Chip Dimension : 11.74*22.74 mm
Specification and Dimension
| Type: | TSOP66 Test Socket |
| Pin: | 66 |
| Pin Pitch: | 0.65 mm |
| Pin Count: | 48 |
| Applicable Chip Dimension: | 11.74*22.74 mm |
| Product description: |
1. Use double contact technology , contact more stable , 2. The socket shell use special engineering plastic , high strength , long mechanical life , 3. The shapnel use import beryllium copper , small impedance , good flexibility , 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability . |
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please feel free to contact us , we can give you a more cheaper price !

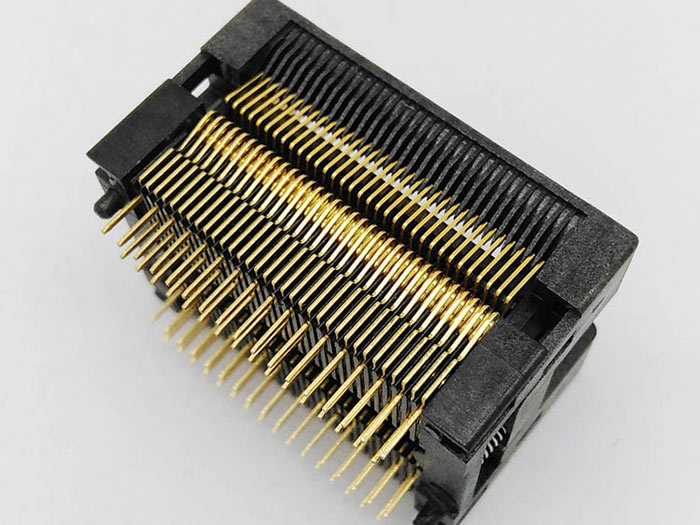

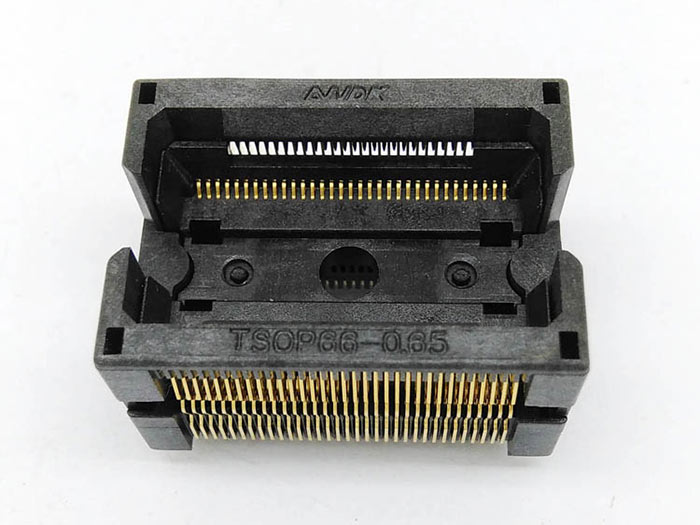

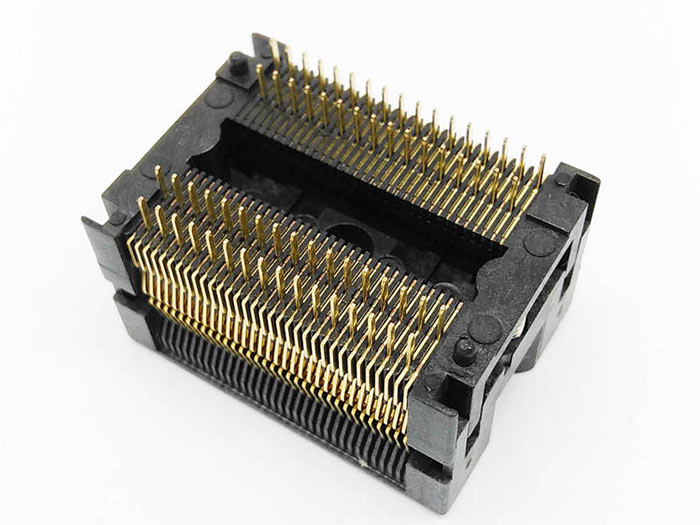

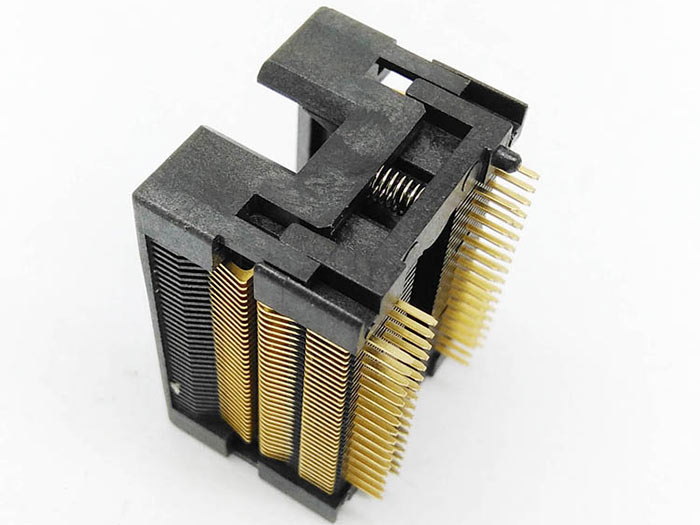

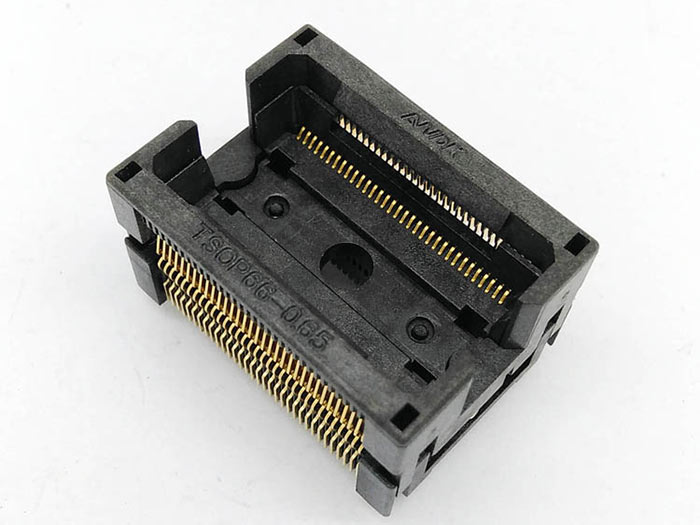

Product image
