BGA152/132 clamshell burn in socket
BGA152/132 clamshell burn in test socket for SSD NAND flash test.
parameter
| Chip package | BGA |
| Pin count | 88pin |
| Pin pitch | 1.0mm |
| Insulation Resistance | 1000mΩ Min.At DC500V |
| Dielectric Witdstanding Voltage For 1Min at AC700V | |
| Contact Resistance 30mΩ Max.at 10mA and 20mV Max.(initial) | |
| Current Rating | 1A Max. |
| Operation temperature | -55℃~+175℃ |
| Life Span | 25,000 Times (Mechanical) |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands

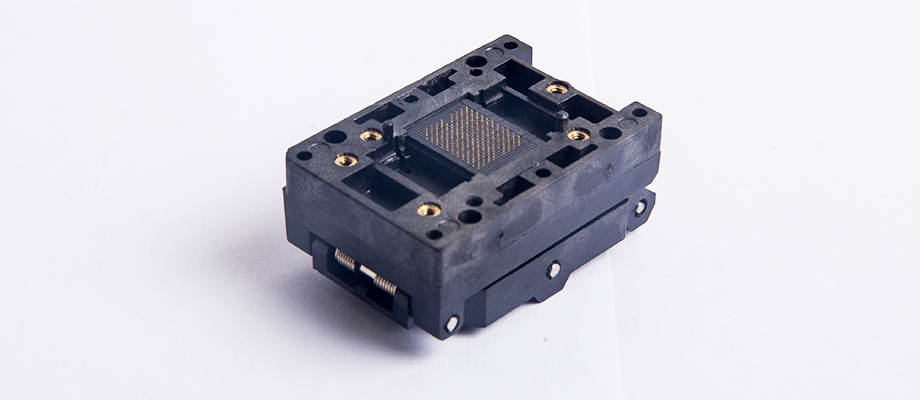

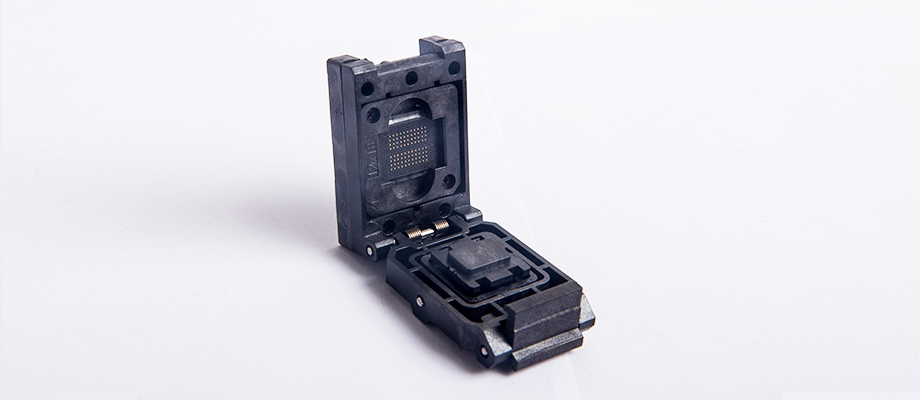

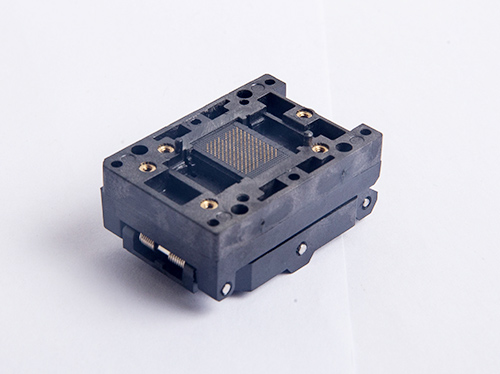

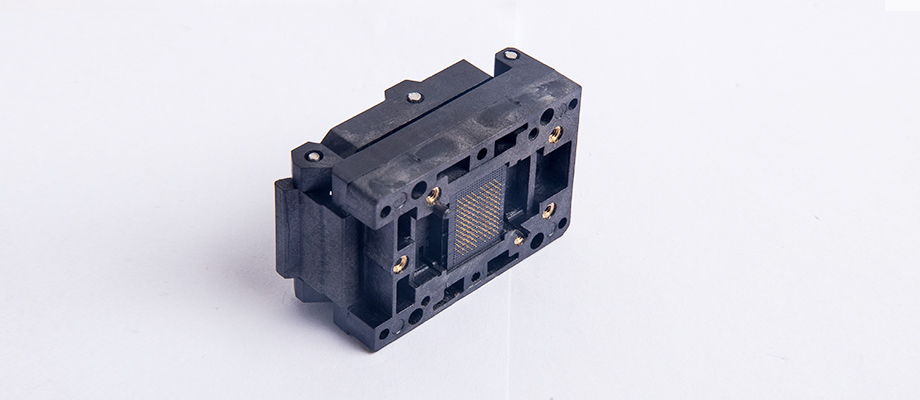

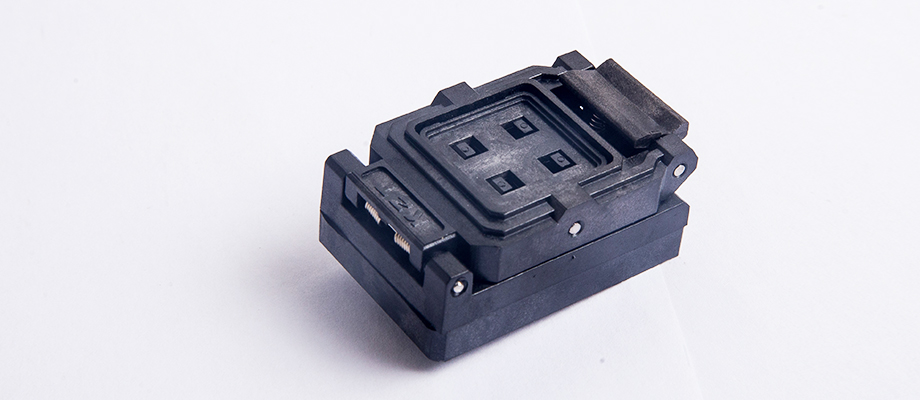

Product image
