TSOP48 burn in socket
TSOP48 Standard Burn in Socket Pitch 0.5mm IC Test Socket IC Size 12x18.4mm Programmer Adapter for TSOP48 NAND flash or Nor flash test in SSD and other memory device.
Material & Specifics
| Structure | open-top |
| Socket Body | PES, PEI or Equivalent |
| Contacts | Beryllium Copper Alloy |
| Contact Plating | Gold over nickel |
| Contact Force | 18g Per pin (Normal) |
| Operation Force | Max 1.0kg |
| Contact Resistance | 30mohm MAX.a1 10mA and 20mV max (Initial) |
| Insulation Resistance | 1,000m ohm min. at DC 500V |
| Dielectric withstanding voltage For 1 Minute at AC 700V | |
| Operation Temperature | -55 ~ +175 Celsius degree |
| Operation Life | 15,000 times +-1%(Mechanical) |
Specification
| Package | TSOP 48 |
| Pin pitch | 0.5 mm |
| Pin Count | 48 |
| IC Size | 12*18.4 mm |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands

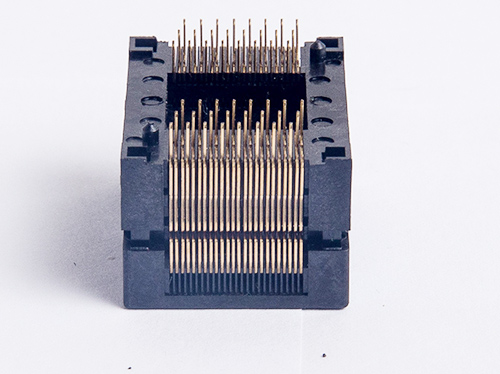

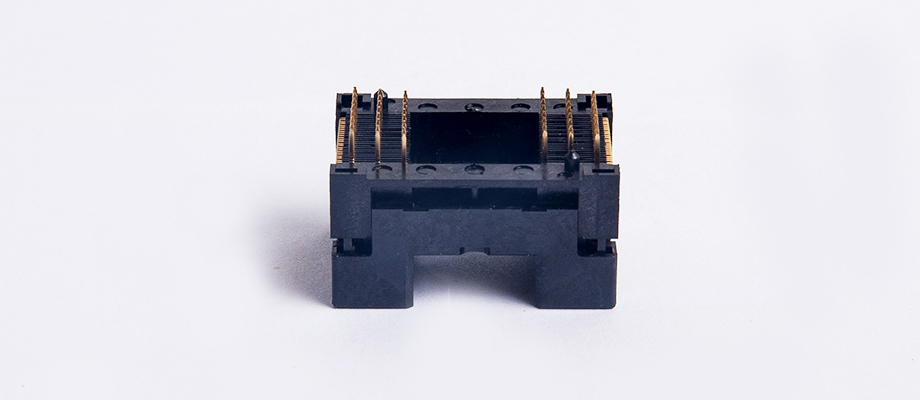

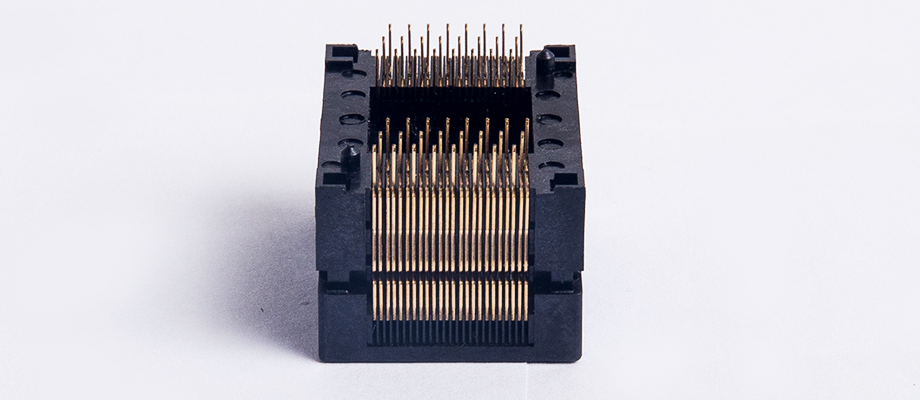

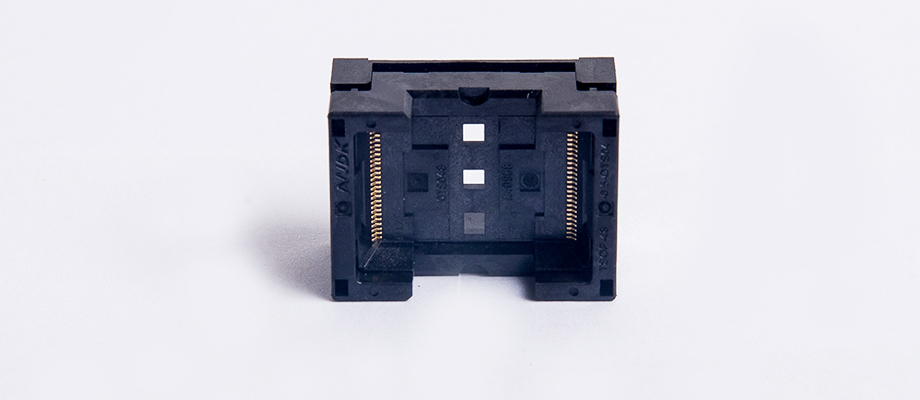

Product image
